RS PRO Insulated Crimp Blade Terminal 13 mm Blade Length, 16 AWG to 14 AWG, Blue

View all Blade Terminals
Bulk discount available

Subtotal (1 pack of 100 units)*

£13.26

(exc. VAT)

£15.91

(inc. VAT)

Add to Basket
Select or type quantity
Orders below £50.00 (exc. VAT) cost £6.95.
In Stock
  • 169 unit(s) ready to ship
  • Plus 21 unit(s) ready to ship from another location
  • Plus 29 unit(s) shipping from 25 February 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Pack(s)
Per Pack
Per unit*
1 - 9£13.26£0.133
10 - 24£11.92£0.119
25 - 49£10.86£0.109
50 - 99£9.94£0.099
100 +£9.28£0.093

*price indicative

RS Stock No.:
613-9722
Brand:
RS PRO
Find similar products by selecting one or more attributes.
Select all

Brand

RS PRO

Product Type

Crimp Blade Terminal

Insulation

Insulated

Insulation Material

Vinyl

Minimum Wire Size AWG

16 AWG

Overall Length

23.8mm

Maximum Wire Size AWG

14 AWG

Blade Length

13mm

Blade Width

2.4mm

Inside Diameter

4.5 mm

Blade Thickness

0.8mm

Hooked

No

Standards/Approvals

No

Colour

Blue

Contact Plating

Tin

Contact Material

Copper

COO (Country of Origin):
TW

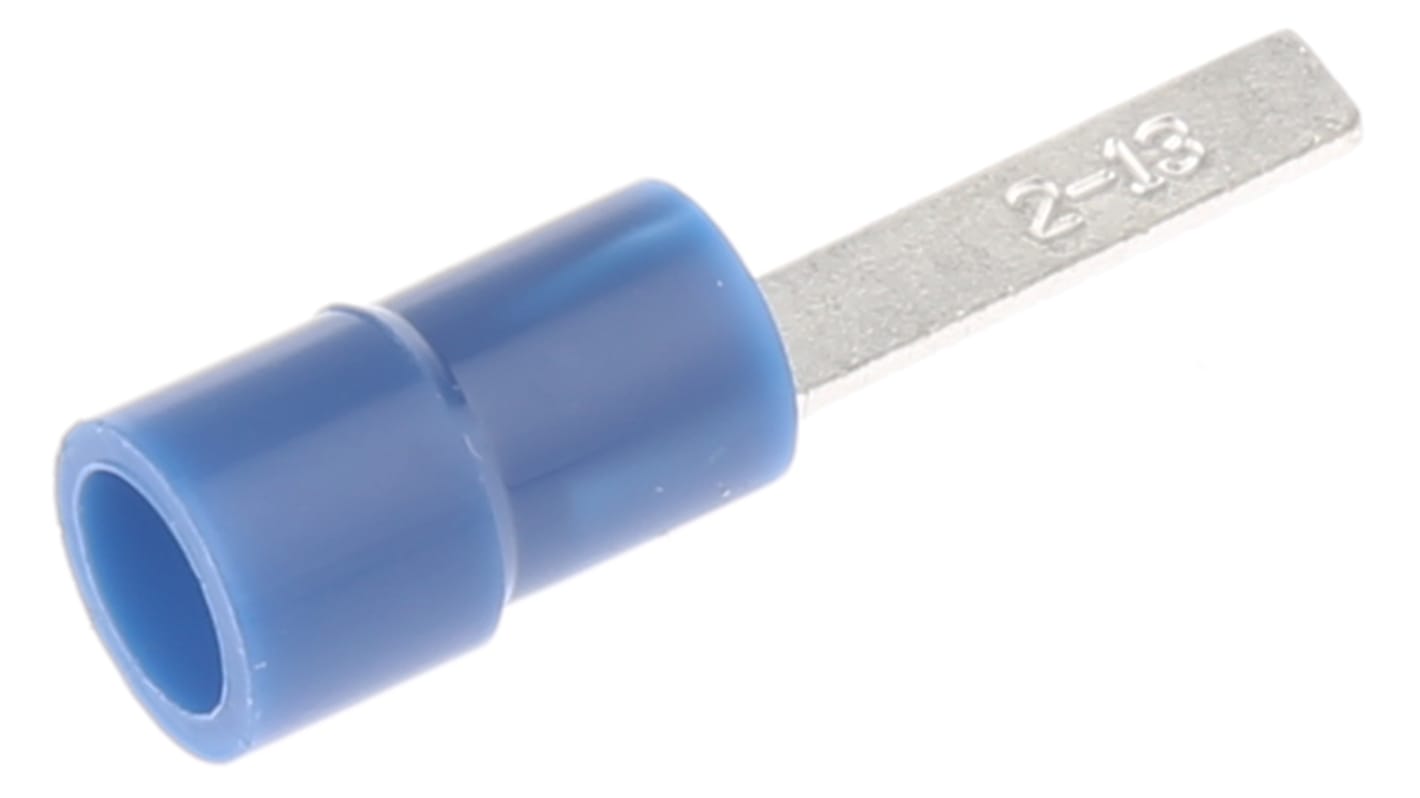

RS PRO Insulated Crimp Blade Terminal 13 mm Blade Length, 1.5 mm² to 2.5 mm², 16 AWG to 14 AWG, Blue


Need a solder-free way to terminate your stranded single-wire electrical connections? Use this crimp terminal blade from the RS PRO range. It protects the metal interior from corrosion thanks to its tight-fitting design, ensuring a long product life.

The crimp blade's tin-plated copper composition ensures a long-lasting and dependable electrical connection. To protect the connection from damage, the blade is insulated with flared vinyl. The insulation is colour-coded in blue to make it easy to distinguish between different wire diameters in your setup. Electricians frequently use crimp terminal blades like this one for their versatility and convenience of use.

Features and Benefits


  • Blade length of 13 mm

  • Blade thickness of 0.8 mm

  • Blade width of 2.4 mm

  • Blue colour

  • Copper contact material

  • Tin contact plating

  • Male gender

  • Not hooked

  • Inner diameter of 4.5 mm

  • Insulated

  • Vinyl insulation material

  • Maximum wire size of 14 AWG (American Wire Gauge)

  • Minimum wire size of 16 AWG (American Wire Gauge)

  • Maximum wire size of 2.5 mm²

  • Minimum wire size of 1.5 mm²

  • Overall length of 23.8 mm

  • Unshrouded

    • Small Pack Size


    Per Unit, RS stock no: 613-9722

    Large Pack Size


    RS stock no: 270-7466

    Approvals

    UL (E125401)
