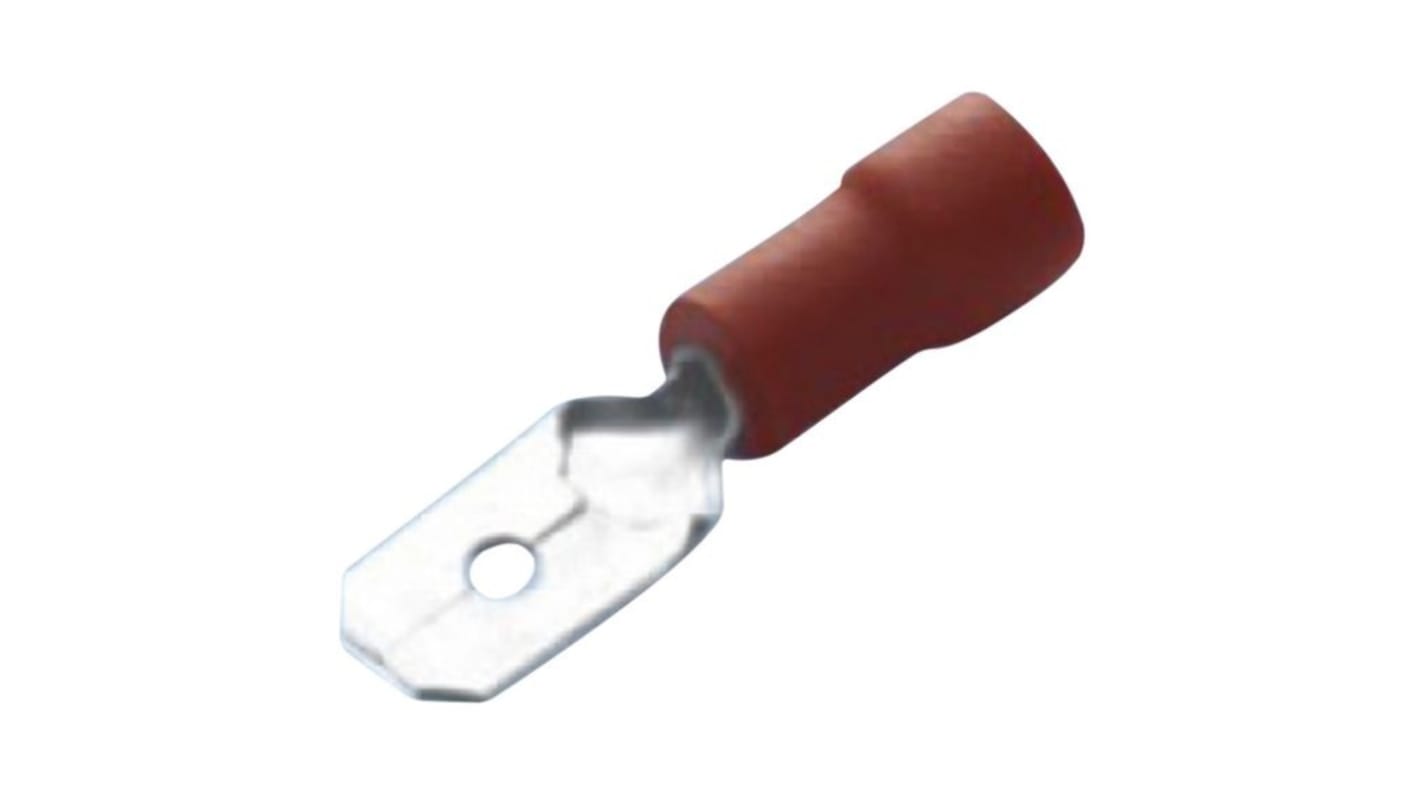

RND, RND 465-00526 Insulated Crimp Blade Terminal 22 mm Blade Length, 22 AWG to 16 AWG, Red
- RS Stock No.:
- 283-3091
- Distrelec Article No.:
- 301-10-305
- Mfr. Part No.:
- RND 465-00526
- Brand:
- RND
Currently unavailable
We don't know if this item will be back in stock, RS intend to remove it from our range soon.
Alternative
This product is not currently available. Here is our alternative recommendation.
Each (In a Pack of 100)
£0.159
(exc. VAT)
£0.191
(inc. VAT)
- RS Stock No.:
- 283-3091
- Distrelec Article No.:
- 301-10-305
- Mfr. Part No.:
- RND 465-00526
- Brand:
- RND
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RND | |
| Series | RND 465-00526 | |
| Product Type | Crimp Blade Terminal | |
| Insulation | Insulated | |
| Insulation Material | Vinyl | |
| Minimum Wire Size AWG | 22 AWG | |
| Overall Length | 22mm | |
| Maximum Wire Size AWG | 16 AWG | |
| Blade Length | 22mm | |
| Blade Width | 6.3mm | |
| Blade Thickness | 0.8mm | |
| Standards/Approvals | REACH, RoHS | |
| Colour | Red | |
| Contact Plating | Tin | |
| Contact Material | Brass | |
| Select all | ||
|---|---|---|
Brand RND | ||
Series RND 465-00526 | ||
Product Type Crimp Blade Terminal | ||
Insulation Insulated | ||
Insulation Material Vinyl | ||
Minimum Wire Size AWG 22 AWG | ||
Overall Length 22mm | ||
Maximum Wire Size AWG 16 AWG | ||
Blade Length 22mm | ||
Blade Width 6.3mm | ||
Blade Thickness 0.8mm | ||
Standards/Approvals REACH, RoHS | ||
Colour Red | ||
Contact Plating Tin | ||
Contact Material Brass | ||
- COO (Country of Origin):
- CN
The Blade Terminal is constructed with brass material, vinyl insulation and tin plated surface. This blade receptacle is UL certified according to E502428 standard.
Double crimp
Funnel entry
Male disconnect
