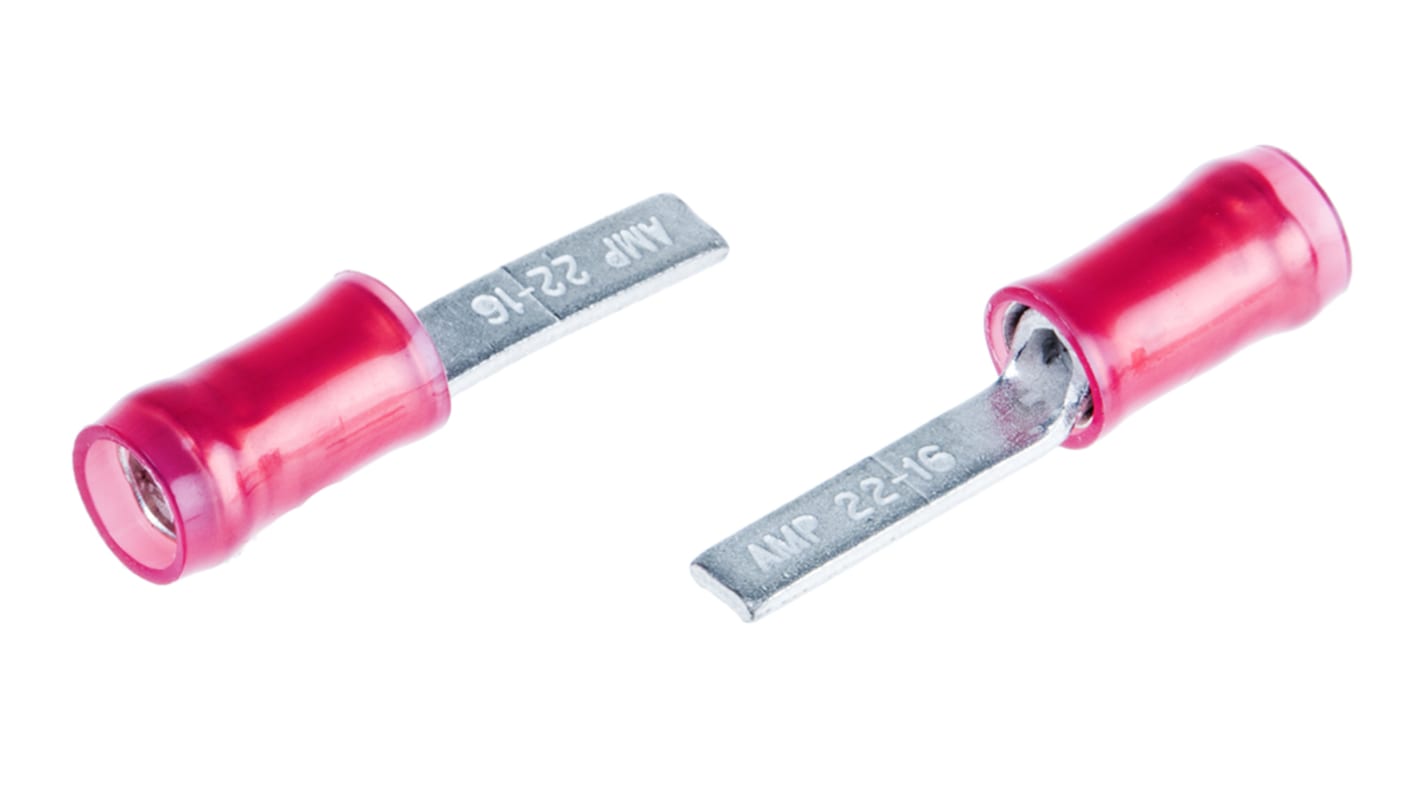

TE Connectivity, PIDG Insulated Crimp Blade Terminal 12.4 mm Blade Length, 22 AWG to 16 AWG, Red
- RS Stock No.:
- 161-1695
- Distrelec Article No.:
- 304-64-420
- Mfr. Part No.:
- 131331
- Brand:
- TE Connectivity
Bulk discount available
View bulk pricing optionsSubtotal (1 box of 100 units)*
£40.20
(exc. VAT)
£48.20
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 3,000 unit(s) ready to ship
- Plus 1,500 unit(s) ready to ship from another location
- Plus 38,000 unit(s) shipping from 25 August 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Box* |
|---|---|---|
| 100 - 100 | £0.402 | £40.20 |
| 200 - 400 | £0.378 | £37.80 |
| 500 - 900 | £0.337 | £33.70 |
| 1000 - 1900 | £0.297 | £29.70 |
| 2000 + | £0.261 | £26.10 |
*price indicative
- RS Stock No.:
- 161-1695
- Distrelec Article No.:
- 304-64-420
- Mfr. Part No.:
- 131331
- Brand:
- TE Connectivity
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TE Connectivity | |
| Product Type | Crimp Blade Terminal | |
| Series | PIDG | |
| Insulation | Insulated | |
| Insulation Material | Nylon | |
| Minimum Wire Size mm² | 0.2mm² | |
| Minimum Wire Size AWG | 22AWG | |
| Overall Length | 23mm | |
| Maximum Wire Size mm² | 1.6mm² | |
| Maximum Wire Size AWG | 16AWG | |
| Blade Length | 12.4mm | |
| Blade Width | 2.95mm | |
| Blade Thickness | 0.79mm | |
| Inside Diameter | 3.5mm | |
| Hooked | No | |
| Standards/Approvals | No | |
| Colour | Red | |
| Contact Plating | Tin | |
| Contact Material | Copper | |
| Select all | ||
|---|---|---|
Brand TE Connectivity | ||
Product Type Crimp Blade Terminal | ||
Series PIDG | ||
Insulation Insulated | ||
Insulation Material Nylon | ||
Minimum Wire Size mm² 0.2mm² | ||
Minimum Wire Size AWG 22AWG | ||
Overall Length 23mm | ||
Maximum Wire Size mm² 1.6mm² | ||
Maximum Wire Size AWG 16AWG | ||
Blade Length 12.4mm | ||
Blade Width 2.95mm | ||
Blade Thickness 0.79mm | ||
Inside Diameter 3.5mm | ||
Hooked No | ||
Standards/Approvals No | ||
Colour Red | ||
Contact Plating Tin | ||
Contact Material Copper | ||
- COO (Country of Origin):
- US
TE Connectivity PIDG Blade Wire Crimp Terminals
PIDG blade wire crimp terminals consisting of a precision-formed metal wire barrel containing serrations which provide maximum contact and tensile strength after crimping. This barrel is enclosed in a copper sleeve and the whole is encased in a nylon colour coded insulation sleeve. These PIDG blade wire crimp terminals are available with different barrel lengths and diameters to accept various wire sizes.
TE Connectivity PIDG Terminals
Note
Not for use with double wire
Approvals
UL recognised
