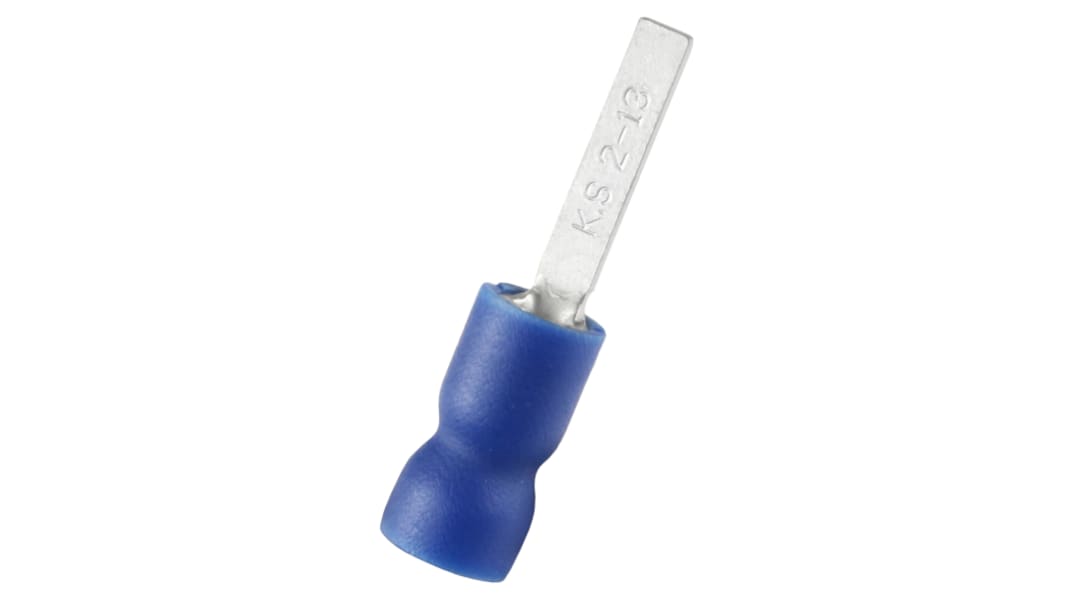

RS PRO Insulated Crimp Blade Terminal 13mm Blade Length, 1.5mm² to 2.5mm², 16AWG to 14AWG, Blue
- RS Stock No.:
- 178-7251
- Brand:
- RS PRO
Bulk discount available
Subtotal (1 bag of 100 units)*
£6.20
(exc. VAT)
£7.40
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 1,300 unit(s) ready to ship
- Plus 7,100 unit(s) shipping from 28 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Bag* |
---|---|---|
100 - 900 | £0.062 | £6.20 |
1000 - 1900 | £0.056 | £5.60 |
2000 - 4900 | £0.052 | £5.20 |
5000 - 9900 | £0.048 | £4.80 |
10000 + | £0.043 | £4.30 |
*price indicative
- RS Stock No.:
- 178-7251
- Brand:
- RS PRO
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | RS PRO | |
Insulation | Insulated | |
Insulation Material | Vinyl | |
Minimum Wire Size mm² | 1.5mm² | |
Maximum Wire Size mm² | 2.5mm² | |
Minimum Wire Size AWG | 16AWG | |
Maximum Wire Size AWG | 14AWG | |
Overall Length | 24.3mm | |
Blade Length | 13mm | |
Inner Diameter | 2.3mm | |
Blade Width | 2.4mm | |
Blade Thickness | 0.8mm | |
Hooked | No | |
Colour | Blue | |
Contact Material | Copper | |
Select all | ||
---|---|---|
Brand RS PRO | ||
Insulation Insulated | ||
Insulation Material Vinyl | ||
Minimum Wire Size mm² 1.5mm² | ||
Maximum Wire Size mm² 2.5mm² | ||
Minimum Wire Size AWG 16AWG | ||
Maximum Wire Size AWG 14AWG | ||
Overall Length 24.3mm | ||
Blade Length 13mm | ||
Inner Diameter 2.3mm | ||
Blade Width 2.4mm | ||
Blade Thickness 0.8mm | ||
Hooked No | ||
Colour Blue | ||
Contact Material Copper | ||
