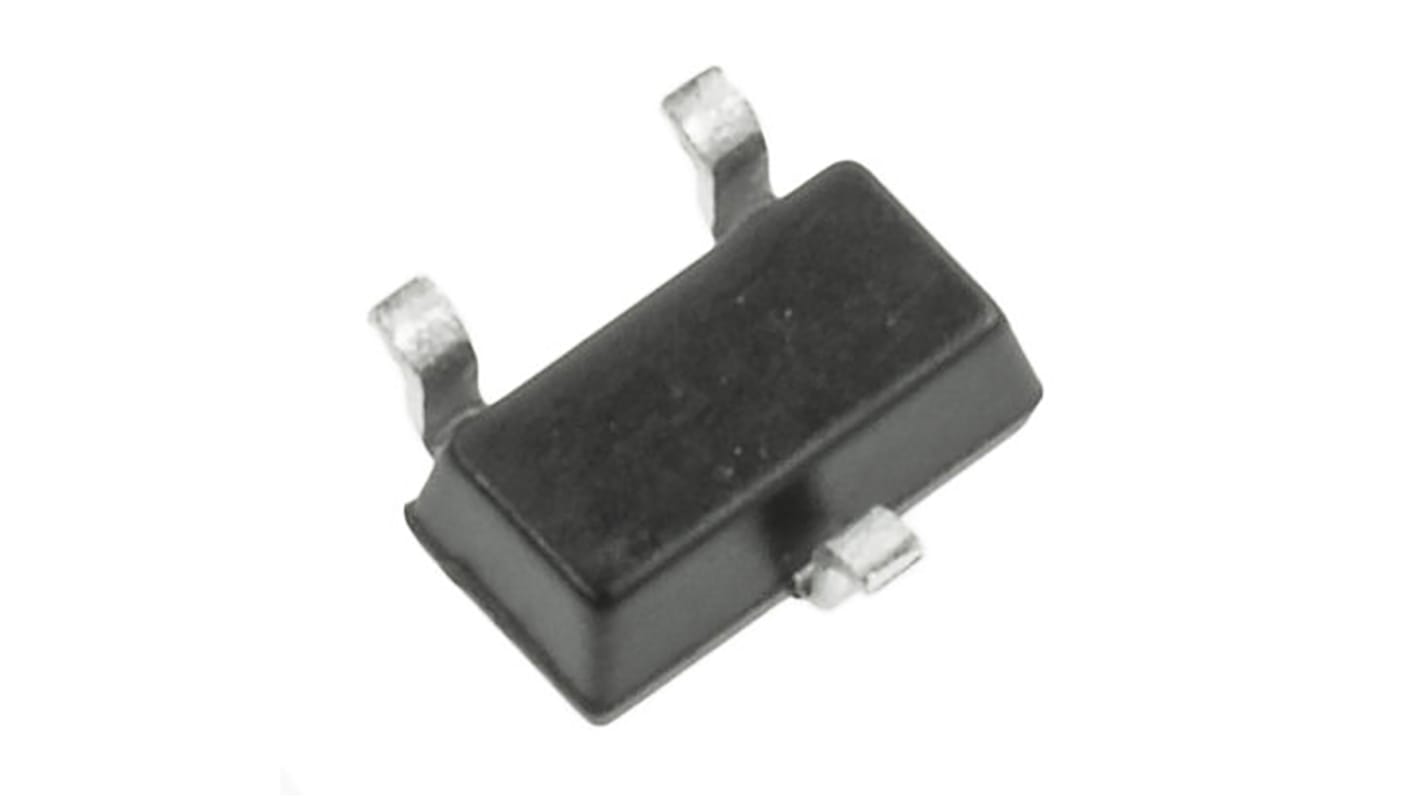

Diodes Inc Transistor, -100 mA PNP, -30 V, 3-Pin SOT-323

Bulk discount available

View bulk pricing options

Subtotal (1 pack of 250 units)*

£15.25

(exc. VAT)

£18.25

(inc. VAT)

Temporarily out of stock

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

*price indicative

Specifications

Technical Reference

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	DiodesZetex
	Product Type	Transistor
	Maximum DC Collector Current Idc	-100mA
	Maximum Collector Emitter Voltage Vceo	-30V
	Package Type	SOT-323
	Mount Type	Surface
	Transistor Configuration	Single
	Maximum Collector Base Voltage VCBO	-30V
	Maximum Power Dissipation Pd	200mW
	Minimum DC Current Gain hFE	420
	Maximum Emitter Base Voltage VEBO	-5V
	Maximum Transition Frequency ft	100MHz
	Transistor Polarity	PNP
	Minimum Operating Temperature	-55°C
	Pin Count	3
	Maximum Operating Temperature	150°C
	Length	3mm
	Standards/Approvals	No
	Series	BC858C
	Height	1.1mm
	Automotive Standard	AEC-Q100, AEC-Q101, AEC-Q200

	Select all
	Brand DiodesZetex
	Product Type Transistor
	Maximum DC Collector Current Idc -100mA
	Maximum Collector Emitter Voltage Vceo -30V
	Package Type SOT-323
	Mount Type Surface
	Transistor Configuration Single
	Maximum Collector Base Voltage VCBO -30V
	Maximum Power Dissipation Pd 200mW
	Minimum DC Current Gain hFE 420
	Maximum Emitter Base Voltage VEBO -5V
	Maximum Transition Frequency ft 100MHz
	Transistor Polarity PNP
	Minimum Operating Temperature -55°C
	Pin Count 3
	Maximum Operating Temperature 150°C
	Length 3mm
	Standards/Approvals No
	Series BC858C
	Height 1.1mm
	Automotive Standard AEC-Q100, AEC-Q101, AEC-Q200
