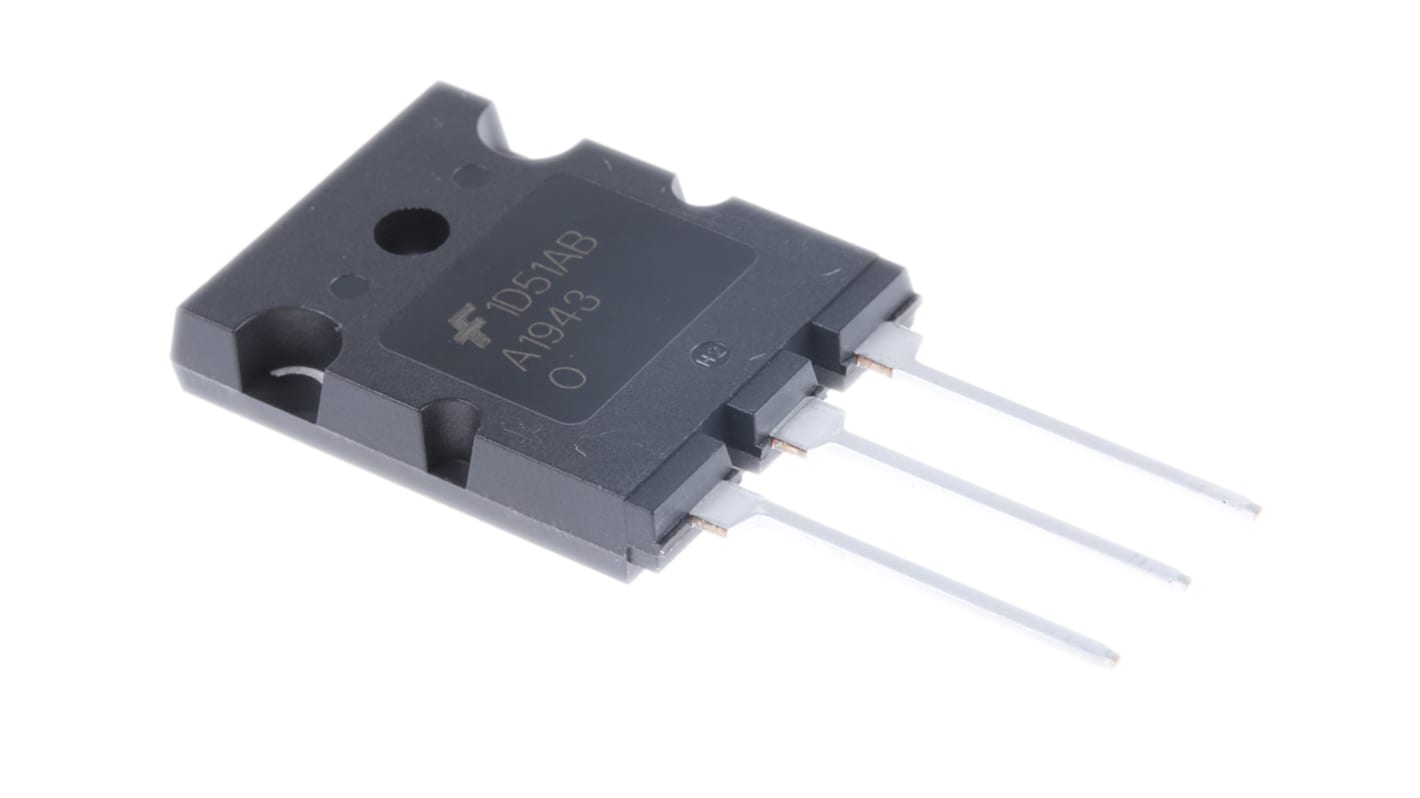

onsemi 2SA1943OTU Transistor, -17 A PNP, -250 V, 3-Pin TO-264
- RS Stock No.:
- 805-1148
- Mfr. Part No.:
- 2SA1943OTU
- Brand:
- onsemi
Subtotal (1 pack of 5 units)*
£22.04
(exc. VAT)
£26.45
(inc. VAT)
FREE delivery for orders over £60.00
Being discontinued
- 45 left, ready to ship
- Final 50 unit(s) shipping from 08 September 2026
Units | Per unit | Per Pack* |
|---|---|---|
| 5 + | £4.408 | £22.04 |
*price indicative
- RS Stock No.:
- 805-1148
- Mfr. Part No.:
- 2SA1943OTU
- Brand:
- onsemi
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | onsemi | |
| Product Type | Transistor | |
| Maximum DC Collector Current Idc | -17A | |
| Maximum Collector Emitter Voltage Vceo | -250V | |
| Package Type | TO-264 | |
| Mount Type | Through Hole | |
| Transistor Configuration | Single | |
| Maximum Collector Base Voltage VCBO | -250V | |
| Maximum Transition Frequency ft | 30MHz | |
| Minimum Operating Temperature | -50°C | |
| Maximum Power Dissipation Pd | 150W | |
| Transistor Polarity | PNP | |
| Minimum DC Current Gain hFE | 55 | |
| Maximum Emitter Base Voltage VEBO | -5V | |
| Maximum Operating Temperature | 150°C | |
| Pin Count | 3 | |
| Standards/Approvals | No | |
| Width | 5.2mm | |
| Series | 2SA1943 | |
| Length | 20.2mm | |
| Height | 46.5mm | |
| Automotive Standard | No | |
| Select all | ||
|---|---|---|
Brand onsemi | ||
Product Type Transistor | ||
Maximum DC Collector Current Idc -17A | ||
Maximum Collector Emitter Voltage Vceo -250V | ||
Package Type TO-264 | ||
Mount Type Through Hole | ||
Transistor Configuration Single | ||
Maximum Collector Base Voltage VCBO -250V | ||
Maximum Transition Frequency ft 30MHz | ||
Minimum Operating Temperature -50°C | ||
Maximum Power Dissipation Pd 150W | ||
Transistor Polarity PNP | ||
Minimum DC Current Gain hFE 55 | ||
Maximum Emitter Base Voltage VEBO -5V | ||
Maximum Operating Temperature 150°C | ||
Pin Count 3 | ||
Standards/Approvals No | ||
Width 5.2mm | ||
Series 2SA1943 | ||
Length 20.2mm | ||
Height 46.5mm | ||
Automotive Standard No | ||
Power PNP Transistors, Fairchild Semiconductor
Bipolar Transistors, Fairchild Semiconductor
Bipolar Junction Transistors (BJT) broad range provides complete solutions for various circuit application needs. Innovative packages are designed for minimal size, highest reliability and maximum thermal performance.
