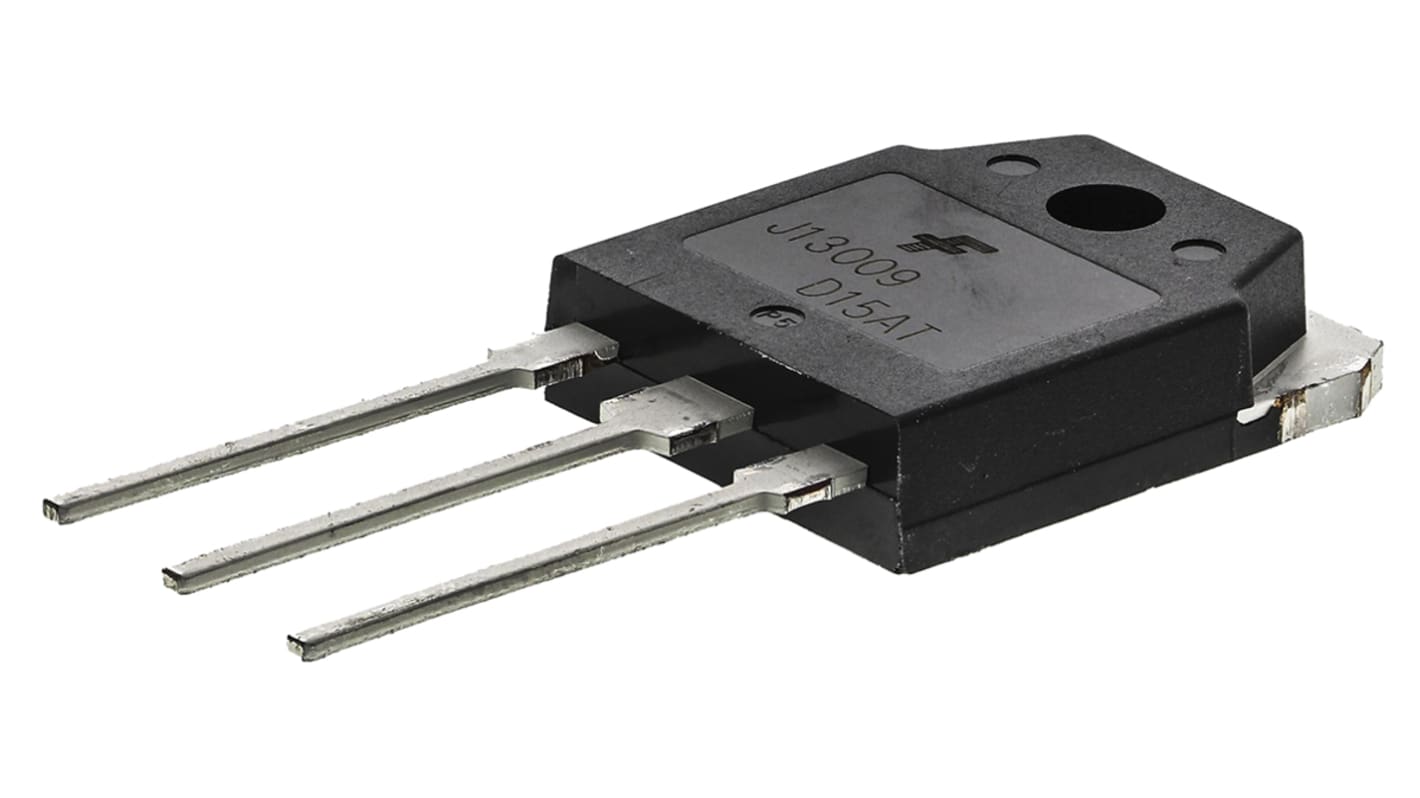

onsemi FJA13009TU Transistor, 12 A NPN, 400 V, 3-Pin TO-3P
- RS Stock No.:
- 739-0401
- Mfr. Part No.:
- FJA13009TU
- Brand:
- onsemi
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
- RS Stock No.:
- 739-0401
- Mfr. Part No.:
- FJA13009TU
- Brand:
- onsemi
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | onsemi | |
| Product Type | Transistor | |
| Maximum DC Collector Current Idc | 12A | |
| Maximum Collector Emitter Voltage Vceo | 400V | |
| Package Type | TO-3P | |
| Mount Type | Through Hole | |
| Transistor Configuration | Single | |
| Maximum Collector Base Voltage VCBO | 700V | |
| Maximum Emitter Base Voltage VEBO | 9V | |
| Maximum Power Dissipation Pd | 130W | |
| Transistor Polarity | NPN | |
| Pin Count | 3 | |
| Maximum Operating Temperature | 150°C | |
| Length | 15.8mm | |
| Height | 20.1mm | |
| Standards/Approvals | RoHS | |
| Select all | ||
|---|---|---|
Brand onsemi | ||
Product Type Transistor | ||
Maximum DC Collector Current Idc 12A | ||
Maximum Collector Emitter Voltage Vceo 400V | ||
Package Type TO-3P | ||
Mount Type Through Hole | ||
Transistor Configuration Single | ||
Maximum Collector Base Voltage VCBO 700V | ||
Maximum Emitter Base Voltage VEBO 9V | ||
Maximum Power Dissipation Pd 130W | ||
Transistor Polarity NPN | ||
Pin Count 3 | ||
Maximum Operating Temperature 150°C | ||
Length 15.8mm | ||
Height 20.1mm | ||
Standards/Approvals RoHS | ||
High Voltage NPN Transistors, Fairchild Semiconductor
Bipolar Transistors, Fairchild Semiconductor
Bipolar Junction Transistors (BJT) broad range provides complete solutions for various circuit application needs. Innovative packages are designed for minimal size, highest reliability and maximum thermal performance.
