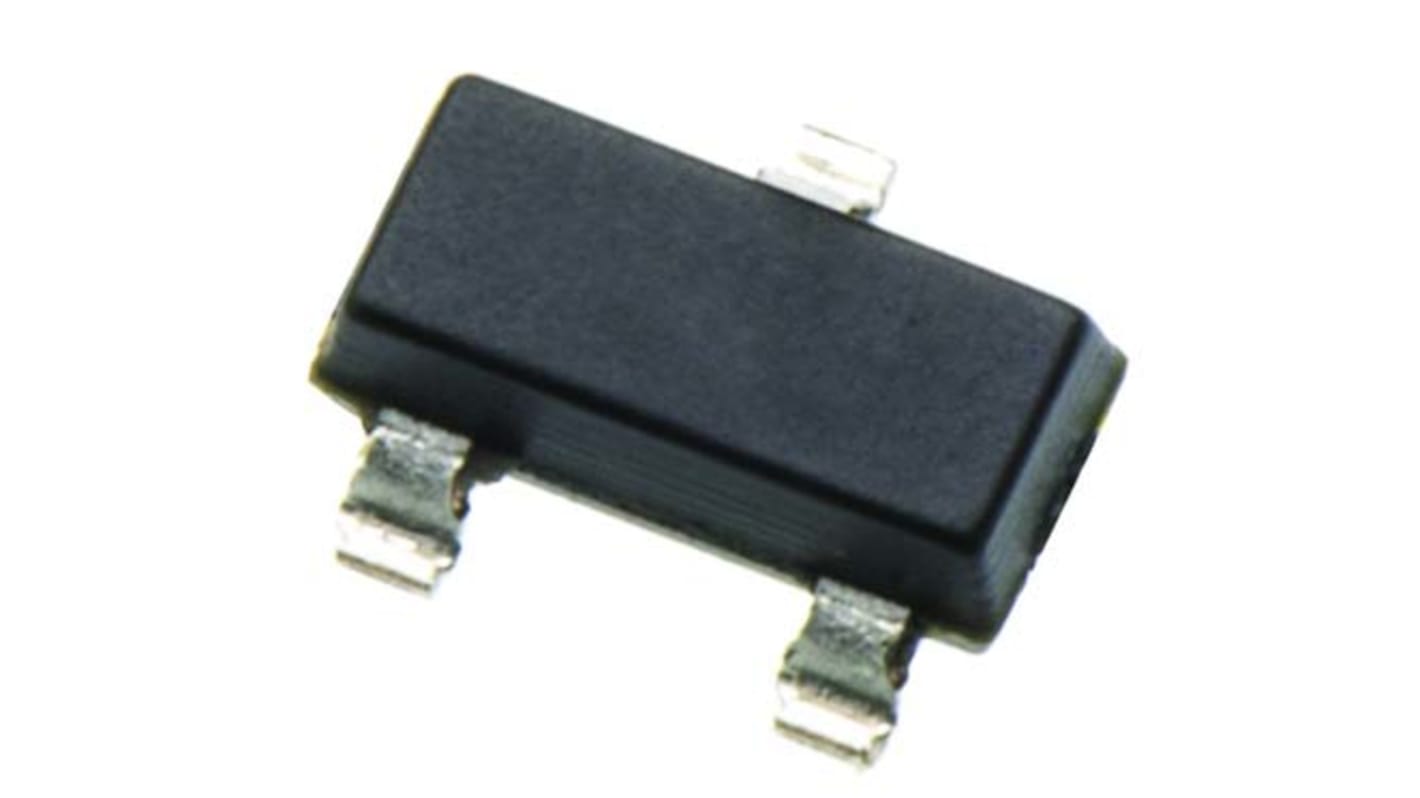

onsemi BC847BLT1G NPN Transistor, 100 mA, 45 V, 3-Pin SOT-23
- RS Stock No.:
- 545-2759
- Mfr. Part No.:
- BC847BLT1G
- Brand:
- onsemi
Currently unavailable
We don't know if this item will be back in stock, RS intend to remove it from our range soon.
Alternative
This product is not currently available. Here is our alternative recommendation.
Each (In a Pack of 50)
£0.04
(exc. VAT)
£0.05
(inc. VAT)
- RS Stock No.:
- 545-2759
- Mfr. Part No.:
- BC847BLT1G
- Brand:
- onsemi
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | onsemi | |
| Transistor Type | NPN | |
| Maximum DC Collector Current | 100 mA | |
| Maximum Collector Emitter Voltage | 45 V | |
| Package Type | SOT-23 | |
| Mounting Type | Surface Mount | |
| Maximum Power Dissipation | 300 mW | |
| Transistor Configuration | Single | |
| Maximum Collector Base Voltage | 50 V | |
| Maximum Emitter Base Voltage | 6 V | |
| Maximum Operating Frequency | 100 MHz | |
| Pin Count | 3 | |
| Number of Elements per Chip | 1 | |
| Dimensions | 0.94 x 2.9 x 1.3mm | |
| Maximum Operating Temperature | +150 °C | |
Select all | ||
|---|---|---|
Brand onsemi | ||
Transistor Type NPN | ||
Maximum DC Collector Current 100 mA | ||
Maximum Collector Emitter Voltage 45 V | ||
Package Type SOT-23 | ||
Mounting Type Surface Mount | ||
Maximum Power Dissipation 300 mW | ||
Transistor Configuration Single | ||
Maximum Collector Base Voltage 50 V | ||
Maximum Emitter Base Voltage 6 V | ||
Maximum Operating Frequency 100 MHz | ||
Pin Count 3 | ||
Number of Elements per Chip 1 | ||
Dimensions 0.94 x 2.9 x 1.3mm | ||
Maximum Operating Temperature +150 °C | ||
Small Signal NPN Transistors, ON Semiconductor
Standards
Manufacturer Part Nos with S or NSV prefix are automotive qualified to AEC-Q101 standard.
The ON Semiconductor BC847BLT3G is an NPN bipolar transistor for linear and switching general purpose applications. It comes from the BC847BL series.
The BC847BLT3G comes in a 3-pin SOT-23 SMD package. This particular package type is ideal for low-power applications.
• MSL: 1
• ESD Rating: >400V (human body), >400V (machine)
• SOT-23 package
The BC847BLT3G comes in a 3-pin SOT-23 SMD package. This particular package type is ideal for low-power applications.
• MSL: 1
• ESD Rating: >400V (human body), >400V (machine)
• SOT-23 package
