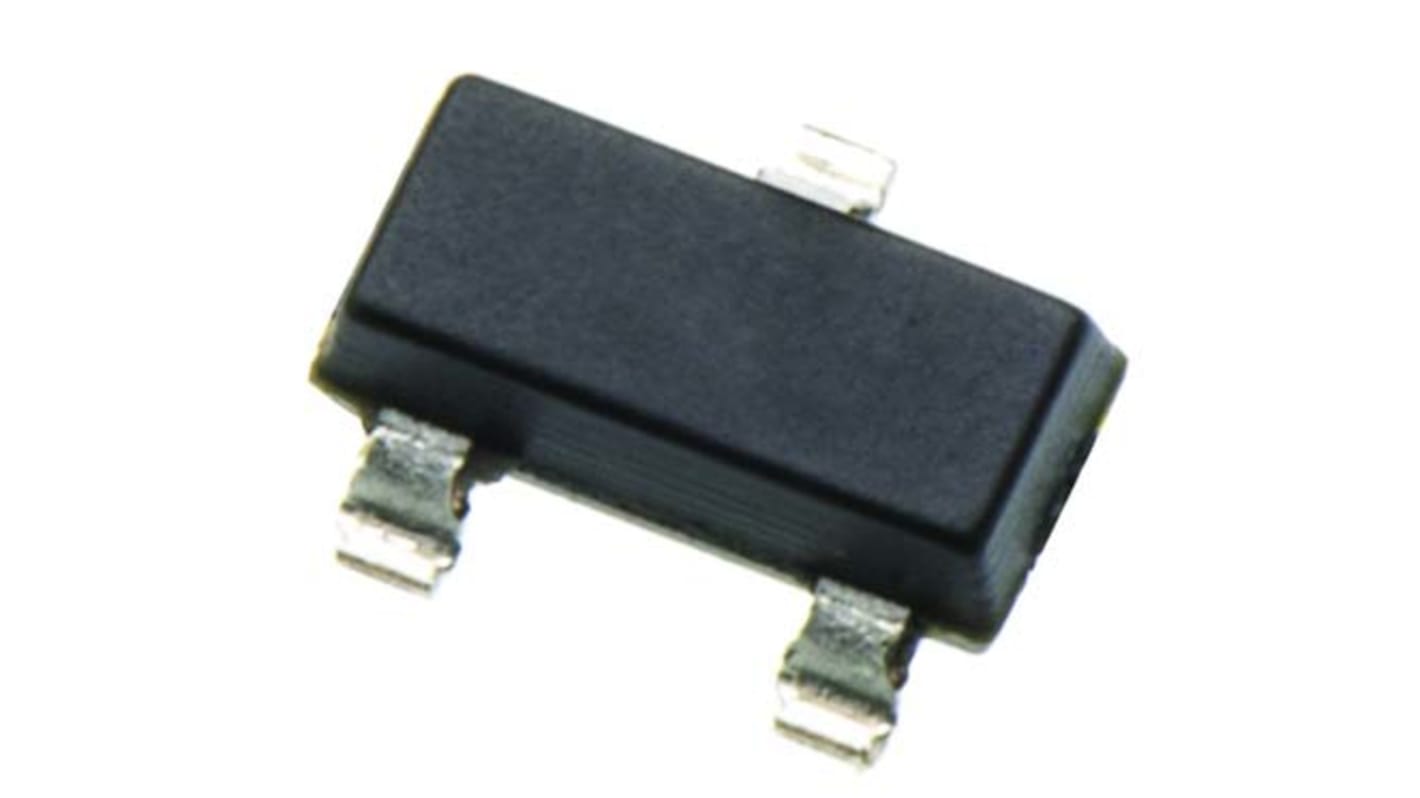

onsemi BC848BLG NPN Transistor, 100 mA, 30 V, 3-Pin SOT-23
- RS Stock No.:
- 544-9416
- Mfr. Part No.:
- BC848BLT1G
- Brand:
- onsemi
1780 In stock - FREE next working day delivery available
620 available from Europe for delivery within 1 working day(s).
Added
Price Each (In a Pack of 20)
£0.077
(exc. VAT)
£0.092
(inc. VAT)
| Units | Per unit | Per Pack* |
| 20 - 380 | £0.077 | £1.54 |
| 400 - 480 | £0.074 | £1.48 |
| 500 - 980 | £0.07 | £1.40 |
| 1000 - 1980 | £0.067 | £1.34 |
| 2000 + | £0.063 | £1.26 |
| *price indicative | ||
- RS Stock No.:
- 544-9416
- Mfr. Part No.:
- BC848BLT1G
- Brand:
- onsemi
Technical Reference
Legislation and Compliance
RoHS Status: Not Applicable
Product Details
Small Signal NPN Transistors, ON Semiconductor
Standards
Manufacturer Part Nos with S or NSV prefix are automotive qualified to AEC-Q101 standard.
Specifications
Attribute | Value |
|---|---|
| Transistor Type | NPN |
| Maximum DC Collector Current | 100 mA |
| Maximum Collector Emitter Voltage | 30 V |
| Package Type | SOT-23 |
| Mounting Type | Surface Mount |
| Maximum Power Dissipation | 300 mW |
| Minimum DC Current Gain | 200 |
| Transistor Configuration | Single |
| Maximum Collector Base Voltage | 30 V |
| Maximum Emitter Base Voltage | 5 V |
| Maximum Operating Frequency | 100 MHz |
| Pin Count | 3 |
| Number of Elements per Chip | 1 |
| Dimensions | 0.94 x 2.9 x 1.3mm |
| Maximum Operating Temperature | +150 °C |
