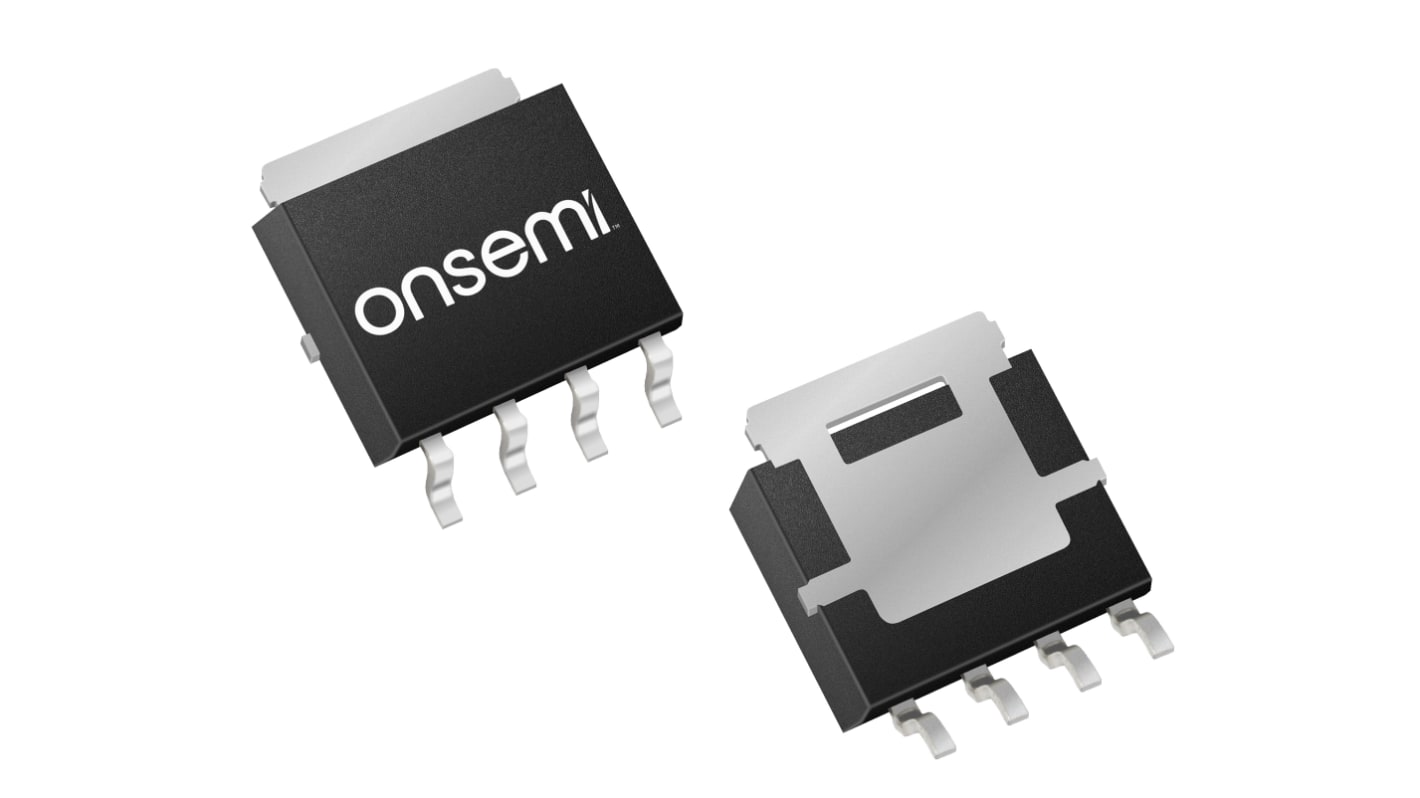

onsemi NJVMJK45H11TWG Bipolar Transistor, 8 A PNP, 4-Pin SOT-669
- RS Stock No.:
- 284-9062
- Mfr. Part No.:
- NJVMJK45H11TWG
- Brand:
- onsemi
Bulk discount available
Subtotal (1 pack of 5 units)*
£6.08
(exc. VAT)
£7.295
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 2,985 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 5 - 45 | £1.216 | £6.08 |
| 50 - 95 | £1.048 | £5.24 |
| 100 - 495 | £0.908 | £4.54 |
| 500 - 995 | £0.798 | £3.99 |
| 1000 + | £0.726 | £3.63 |
*price indicative
- RS Stock No.:
- 284-9062
- Mfr. Part No.:
- NJVMJK45H11TWG
- Brand:
- onsemi
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | onsemi | |
| Product Type | Bipolar Transistor | |
| Maximum DC Collector Current Idc | 8A | |
| Package Type | SOT-669 | |
| Mount Type | Surface Mount | |
| Transistor Polarity | PNP | |
| Minimum Operating Temperature | -65°C | |
| Maximum Emitter Base Voltage VEBO | 5V | |
| Maximum Power Dissipation Pd | 20W | |
| Maximum Operating Temperature | 150°C | |
| Pin Count | 4 | |
| Standards/Approvals | RoHS | |
| Length | 5mm | |
| Width | 4.25 mm | |
| Height | 1.3mm | |
| Select all | ||
|---|---|---|
Brand onsemi | ||
Product Type Bipolar Transistor | ||
Maximum DC Collector Current Idc 8A | ||
Package Type SOT-669 | ||
Mount Type Surface Mount | ||
Transistor Polarity PNP | ||
Minimum Operating Temperature -65°C | ||
Maximum Emitter Base Voltage VEBO 5V | ||
Maximum Power Dissipation Pd 20W | ||
Maximum Operating Temperature 150°C | ||
Pin Count 4 | ||
Standards/Approvals RoHS | ||
Length 5mm | ||
Width 4.25 mm | ||
Height 1.3mm | ||
The ON Semiconductor power transistor is designed for general purpose power and switching applications such as regulators, converters and power amplifiers. Housed in advanced LFPAK package with excellent thermal conduction. Automotive end applications include air bag deployment, power train control units and instrument clusters.
Complementary NPN MJK44H11
These devices are Pb free and halogen free
