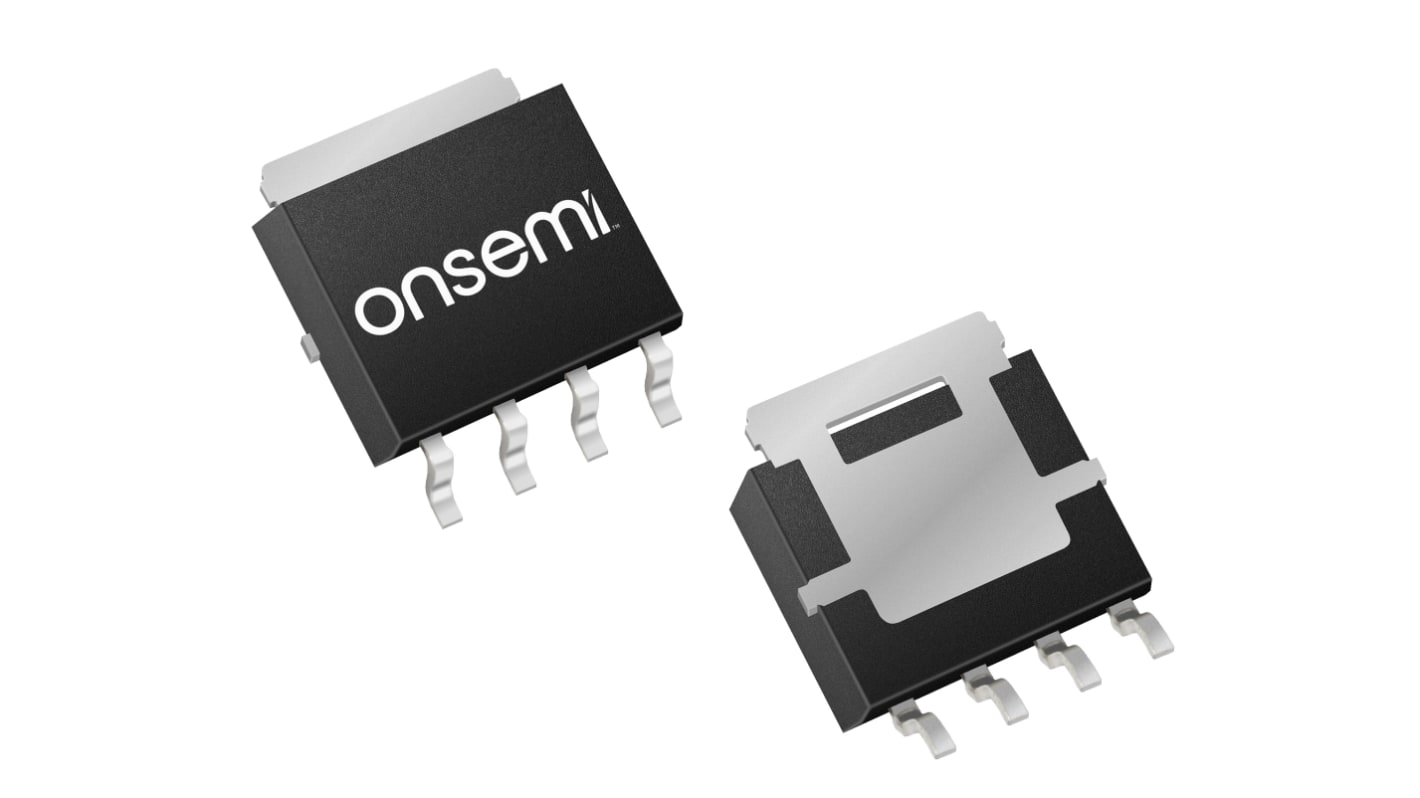

onsemi NJVMJK31CTWG Bipolar Transistor, 3 A NPN, 100 V dc, 4-Pin SOT-669
- RS Stock No.:
- 284-9055
- Mfr. Part No.:
- NJVMJK31CTWG
- Brand:
- onsemi
Subtotal (1 reel of 3000 units)*
£984.00
(exc. VAT)
£1,182.00
(inc. VAT)
FREE delivery for orders over £60.00
Temporarily out of stock
- Shipping from 28 August 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Reel* |
|---|---|---|
| 3000 + | £0.328 | £984.00 |
*price indicative
- RS Stock No.:
- 284-9055
- Mfr. Part No.:
- NJVMJK31CTWG
- Brand:
- onsemi
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | onsemi | |
| Product Type | Bipolar Transistor | |
| Maximum DC Collector Current Idc | 3A | |
| Maximum Collector Emitter Voltage Vceo | 100V dc | |
| Package Type | SOT-669 | |
| Mount Type | Surface Mount | |
| Minimum Operating Temperature | -65°C | |
| Transistor Polarity | NPN | |
| Maximum Emitter Base Voltage VEBO | 5V | |
| Maximum Power Dissipation Pd | 2.7W | |
| Maximum Operating Temperature | 150°C | |
| Pin Count | 4 | |
| Length | 5mm | |
| Height | 1.3mm | |
| Standards/Approvals | RoHS | |
| Select all | ||
|---|---|---|
Brand onsemi | ||
Product Type Bipolar Transistor | ||
Maximum DC Collector Current Idc 3A | ||
Maximum Collector Emitter Voltage Vceo 100V dc | ||
Package Type SOT-669 | ||
Mount Type Surface Mount | ||
Minimum Operating Temperature -65°C | ||
Transistor Polarity NPN | ||
Maximum Emitter Base Voltage VEBO 5V | ||
Maximum Power Dissipation Pd 2.7W | ||
Maximum Operating Temperature 150°C | ||
Pin Count 4 | ||
Length 5mm | ||
Height 1.3mm | ||
Standards/Approvals RoHS | ||
The ON Semiconductor bipolar junction transistors are designed for general purpose power and switching applications such as regulators, converters and power amplifiers. Housed in advanced LFPAK package with excellent thermal conduction. Automotive end applications include air bag deployment, power train control units, and instrument clusters.
Complementary PNP MJK32C
These devices are Pb free and halogen free
