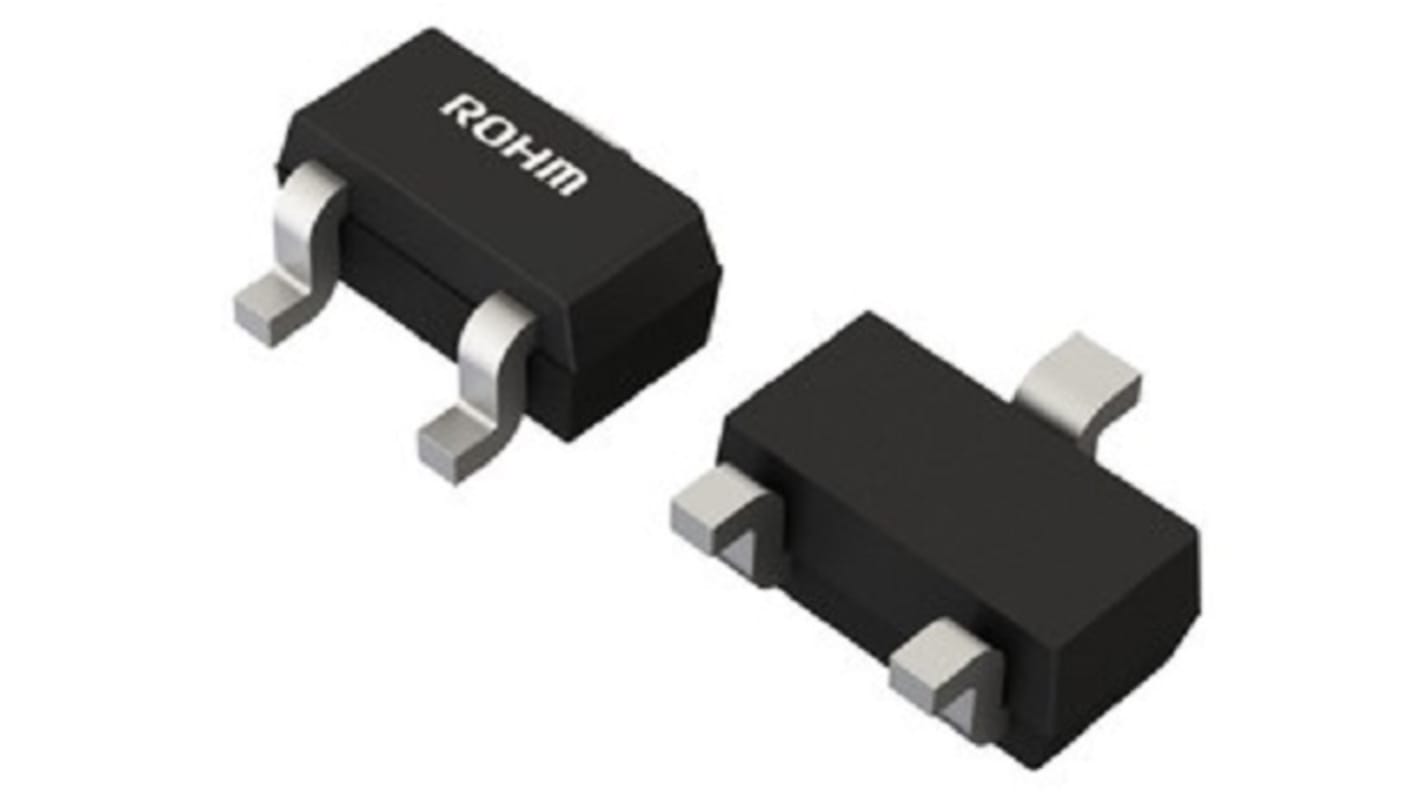

ROHM DTC113ZE3HZGTL Digital Transistor, 50 V NPN Surface EMT3, 3-Pin
- RS Stock No.:
- 267-2365
- Mfr. Part No.:
- DTC113ZE3HZGTL
- Brand:
- ROHM
Bulk discount available
Subtotal (1 pack of 25 units)*
£3.475
(exc. VAT)
£4.175
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 2,975 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 25 - 25 | £0.139 | £3.48 |
| 50 - 75 | £0.136 | £3.40 |
| 100 - 225 | £0.078 | £1.95 |
| 250 - 975 | £0.077 | £1.93 |
| 1000 + | £0.04 | £1.00 |
*price indicative
- RS Stock No.:
- 267-2365
- Mfr. Part No.:
- DTC113ZE3HZGTL
- Brand:
- ROHM
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | ROHM | |
| Product Type | Digital Transistor | |
| Package Type | EMT3 | |
| Maximum Collector Emitter Voltage Vceo | 50V | |
| Mount Type | Surface | |
| Transistor Configuration | Common Emitter | |
| Maximum Power Dissipation Pd | 150mW | |
| Minimum DC Current Gain hFE | 33 | |
| Transistor Polarity | NPN | |
| Maximum Operating Temperature | 150°C | |
| Pin Count | 3 | |
| Standards/Approvals | RoHS | |
| Series | DTC113Z | |
| Automotive Standard | AEC-Q101 | |
| Select all | ||
|---|---|---|
Brand ROHM | ||
Product Type Digital Transistor | ||
Package Type EMT3 | ||
Maximum Collector Emitter Voltage Vceo 50V | ||
Mount Type Surface | ||
Transistor Configuration Common Emitter | ||
Maximum Power Dissipation Pd 150mW | ||
Minimum DC Current Gain hFE 33 | ||
Transistor Polarity NPN | ||
Maximum Operating Temperature 150°C | ||
Pin Count 3 | ||
Standards/Approvals RoHS | ||
Series DTC113Z | ||
Automotive Standard AEC-Q101 | ||
The ROHM DTC113ZE3HZG is a transistor with bias resistor, suitable for inverter. It is a highly reliable product for automotive.
Built-in biasing resistors, R1 =1kΩ R2 = 10kΩ
