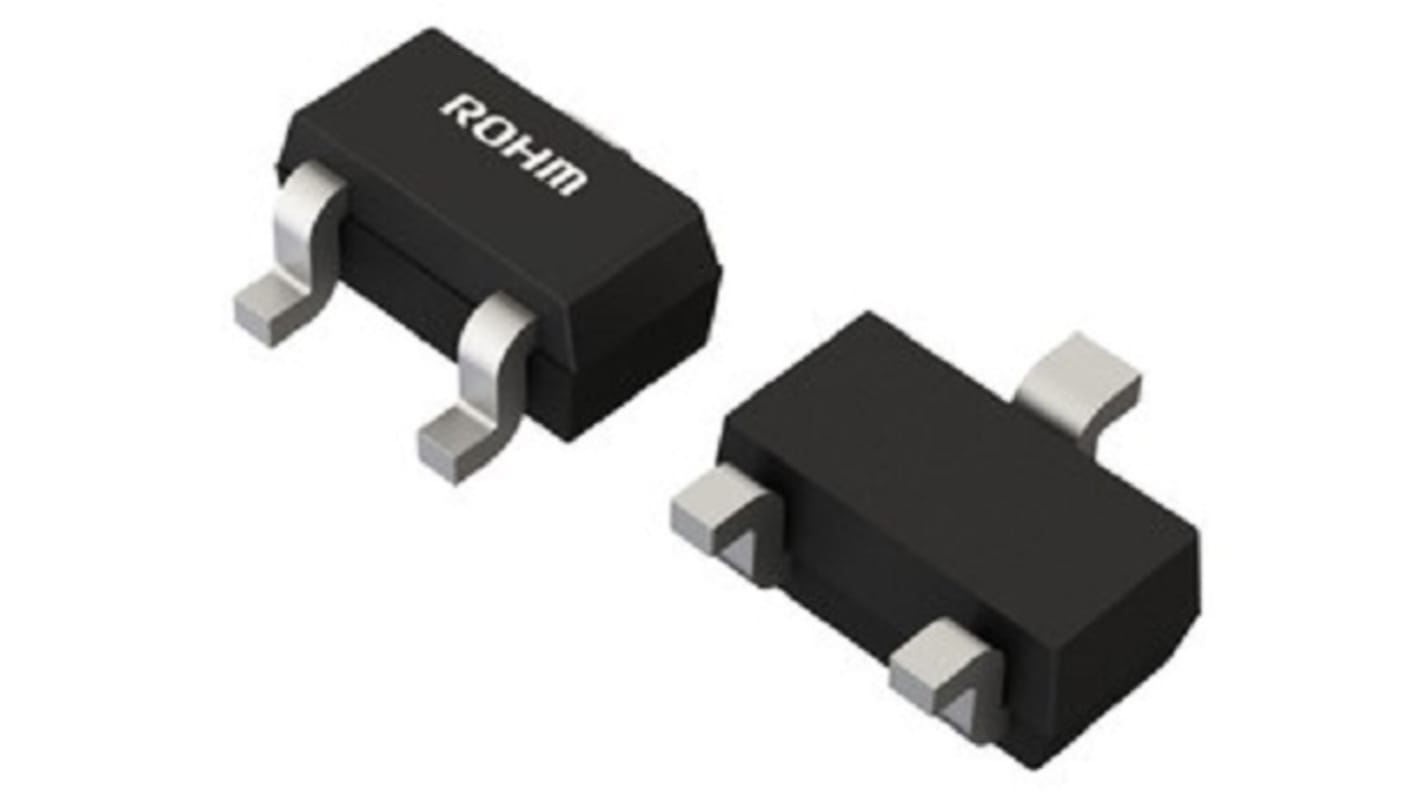

ROHM 2SC4617E3HZGTLQ Transistor, 150 mA NPN, 50 V, 3-Pin EMT3
- RS Stock No.:
- 267-2258
- Mfr. Part No.:
- 2SC4617E3HZGTLQ
- Brand:
- ROHM
Bulk discount available
View bulk pricing optionsSubtotal (1 pack of 25 units)*
£4.10
(exc. VAT)
£4.925
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 2,800 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 25 - 25 | £0.164 | £4.10 |
| 50 - 75 | £0.161 | £4.03 |
| 100 - 225 | £0.093 | £2.33 |
| 250 - 975 | £0.091 | £2.28 |
| 1000 + | £0.088 | £2.20 |
*price indicative
- RS Stock No.:
- 267-2258
- Mfr. Part No.:
- 2SC4617E3HZGTLQ
- Brand:
- ROHM
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | ROHM | |
| Product Type | Transistor | |
| Maximum DC Collector Current Idc | 150mA | |
| Maximum Collector Emitter Voltage Vceo | 50V | |
| Package Type | EMT3 | |
| Mount Type | Surface | |
| Transistor Configuration | Single | |
| Maximum Collector Base Voltage VCBO | 60V | |
| Maximum Power Dissipation Pd | 150mW | |
| Maximum Emitter Base Voltage VEBO | 7V | |
| Maximum Transition Frequency ft | 180MHz | |
| Minimum DC Current Gain hFE | 120 | |
| Transistor Polarity | NPN | |
| Minimum Operating Temperature | -55°C | |
| Maximum Operating Temperature | 150°C | |
| Pin Count | 3 | |
| Series | 2SC4617E3 | |
| Standards/Approvals | RoHS | |
| Length | 1.6mm | |
| Height | 0.9mm | |
| Automotive Standard | AEC-Q101 | |
| Select all | ||
|---|---|---|
Brand ROHM | ||
Product Type Transistor | ||
Maximum DC Collector Current Idc 150mA | ||
Maximum Collector Emitter Voltage Vceo 50V | ||
Package Type EMT3 | ||
Mount Type Surface | ||
Transistor Configuration Single | ||
Maximum Collector Base Voltage VCBO 60V | ||
Maximum Power Dissipation Pd 150mW | ||
Maximum Emitter Base Voltage VEBO 7V | ||
Maximum Transition Frequency ft 180MHz | ||
Minimum DC Current Gain hFE 120 | ||
Transistor Polarity NPN | ||
Minimum Operating Temperature -55°C | ||
Maximum Operating Temperature 150°C | ||
Pin Count 3 | ||
Series 2SC4617E3 | ||
Standards/Approvals RoHS | ||
Length 1.6mm | ||
Height 0.9mm | ||
Automotive Standard AEC-Q101 | ||
The ROHM NPN amplification transistor various products are available in lineup developed focusing on energy-saving and high reliability as main concepts, covering from ultra-compact packages to power-packages to meet the needs in market.
Low Cob.Cob=2.0pF(Typ.)
Complements the 2SA1774E3 HZG
