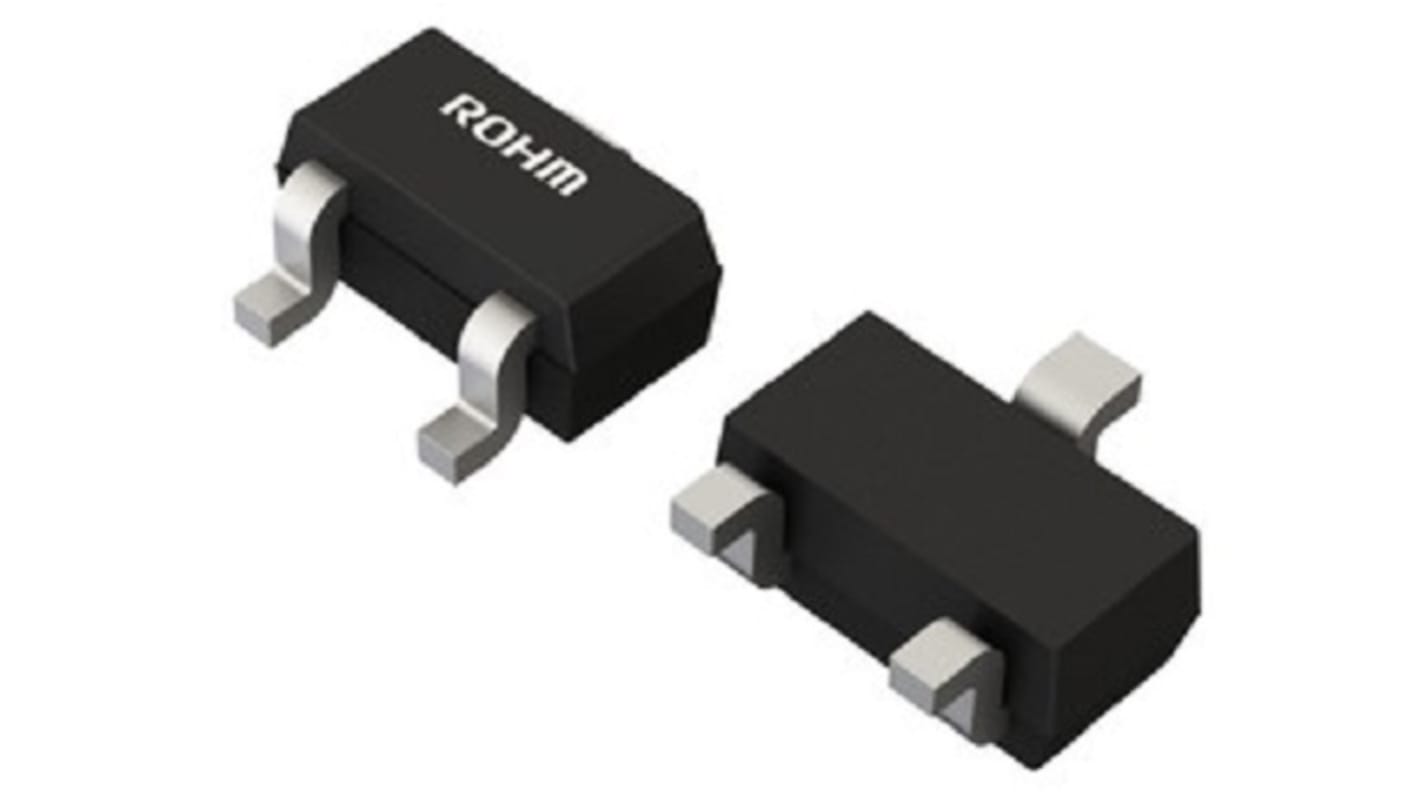

ROHM Transistor, 500 mA PNP, -12 V, 3-Pin EMT3
- RS Stock No.:
- 267-2253
- Mfr. Part No.:
- 2SA2018E3HZGTL
- Brand:
- ROHM
Bulk discount available
View bulk pricing optionsSubtotal (1 reel of 3000 units)*
£255.00
(exc. VAT)
£306.00
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 3,000 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Reel* |
|---|---|---|
| 3000 - 6000 | £0.085 | £255.00 |
| 9000 - 21000 | £0.079 | £237.00 |
| 24000 - 42000 | £0.075 | £225.00 |
| 45000 + | £0.072 | £216.00 |
*price indicative
- RS Stock No.:
- 267-2253
- Mfr. Part No.:
- 2SA2018E3HZGTL
- Brand:
- ROHM
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | ROHM | |
| Product Type | Transistor | |
| Maximum DC Collector Current Idc | 500mA | |
| Maximum Collector Emitter Voltage Vceo | -12V | |
| Package Type | EMT3 | |
| Mount Type | Surface | |
| Transistor Configuration | Single | |
| Maximum Collector Base Voltage VCBO | -15V | |
| Minimum DC Current Gain hFE | 270 | |
| Transistor Polarity | PNP | |
| Maximum Power Dissipation Pd | 150mW | |
| Maximum Emitter Base Voltage VEBO | -6V | |
| Maximum Transition Frequency ft | 260MHz | |
| Minimum Operating Temperature | -55°C | |
| Maximum Operating Temperature | 150°C | |
| Pin Count | 3 | |
| Series | 2SA2018E3 | |
| Standards/Approvals | RoHS | |
| Automotive Standard | AEC-Q101 | |
| Select all | ||
|---|---|---|
Brand ROHM | ||
Product Type Transistor | ||
Maximum DC Collector Current Idc 500mA | ||
Maximum Collector Emitter Voltage Vceo -12V | ||
Package Type EMT3 | ||
Mount Type Surface | ||
Transistor Configuration Single | ||
Maximum Collector Base Voltage VCBO -15V | ||
Minimum DC Current Gain hFE 270 | ||
Transistor Polarity PNP | ||
Maximum Power Dissipation Pd 150mW | ||
Maximum Emitter Base Voltage VEBO -6V | ||
Maximum Transition Frequency ft 260MHz | ||
Minimum Operating Temperature -55°C | ||
Maximum Operating Temperature 150°C | ||
Pin Count 3 | ||
Series 2SA2018E3 | ||
Standards/Approvals RoHS | ||
Automotive Standard AEC-Q101 | ||
The ROHM PNP low frequency transistor various products are available in lineup developed focusing on energy-saving and high reliability as main concepts, covering from ultra-compact packages to power-packages to meet the needs in market.
A collector current is large
Collector-emitter saturation voltage is low
VCE≤250mA at IC=-200mA/IB=-10mA
