Diodes Inc DXTP3C100PDQ-13 Transistor, -3 A PNP, -100 V, 4-Pin PowerDI5060-8/SWP
- RS Stock No.:
- 254-8675
- Mfr. Part No.:
- DXTP3C100PDQ-13
- Brand:
- DiodesZetex
Currently unavailable
We don't know if this item will be back in stock, RS intend to remove it from our range soon.
- RS Stock No.:
- 254-8675
- Mfr. Part No.:
- DXTP3C100PDQ-13
- Brand:
- DiodesZetex
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | DiodesZetex | |
| Product Type | Transistor | |
| Maximum DC Collector Current Idc | -3A | |
| Maximum Collector Emitter Voltage Vceo | -100V | |

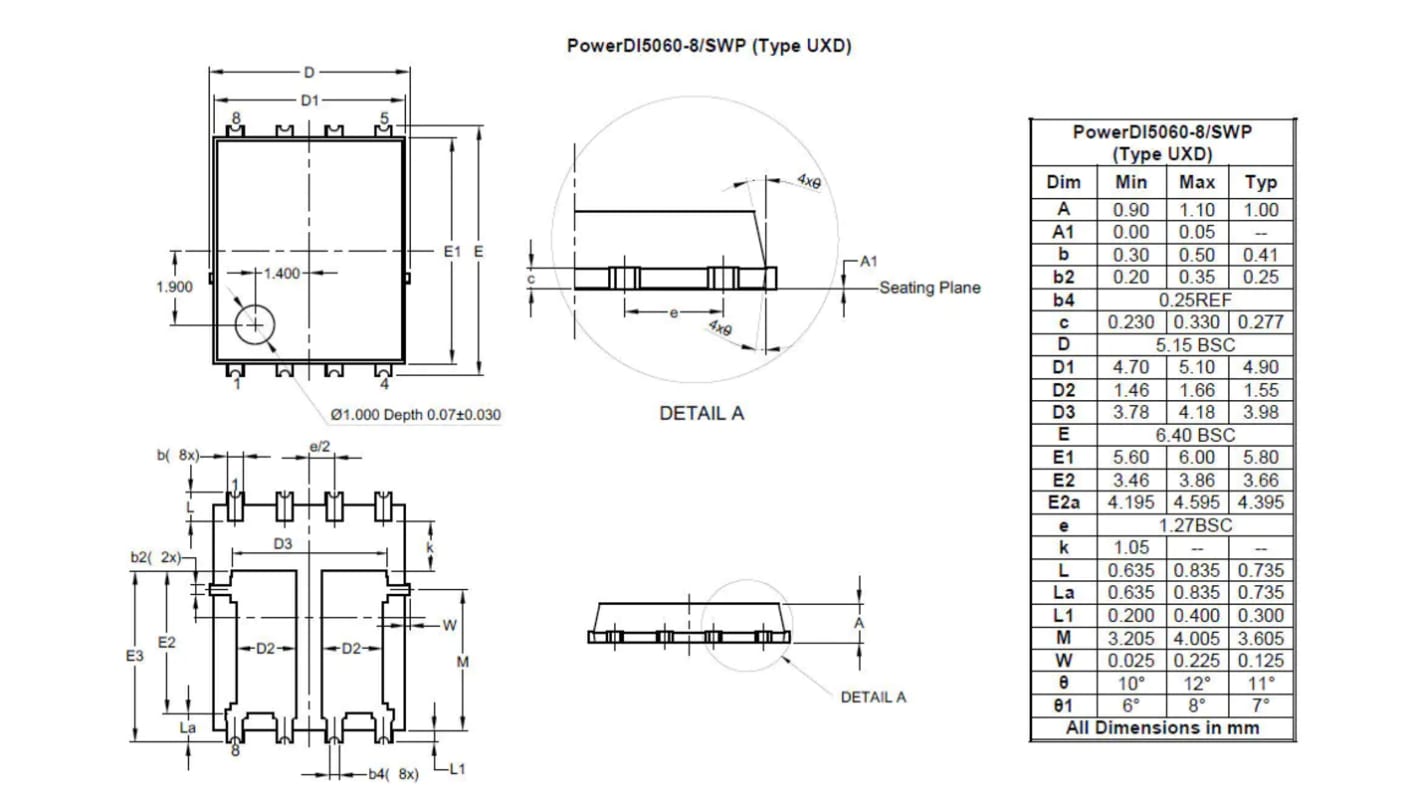

| Package Type | PowerDI5060-8/SWP | |
| Mount Type | Surface | |
| Transistor Configuration | Low Saturation | |
| Maximum Collector Base Voltage VCBO | 100V | |
| Maximum Power Dissipation Pd | 1.1W | |
| Transistor Polarity | PNP | |
| Minimum DC Current Gain hFE | 250 | |
| Minimum Operating Temperature | -55°C | |
| Maximum Transition Frequency ft | 250MHz | |
| Maximum Emitter Base Voltage VEBO | 7V | |
| Maximum Operating Temperature | 150°C | |
| Pin Count | 4 | |
| Length | 5.15mm | |
| Height | 6.4mm | |
| Series | DXTP3C100PDQ | |
| Standards/Approvals | RoHS | |
| Automotive Standard | AEC-Q100, AEC-Q101, AEC-Q200 | |
| Select all | ||
|---|---|---|
Brand DiodesZetex | ||
Product Type Transistor | ||
Maximum DC Collector Current Idc -3A | ||
Maximum Collector Emitter Voltage Vceo -100V | ||
Package Type PowerDI5060-8/SWP | ||
Mount Type Surface | ||
Transistor Configuration Low Saturation | ||
Maximum Collector Base Voltage VCBO 100V | ||
Maximum Power Dissipation Pd 1.1W | ||
Transistor Polarity PNP | ||
Minimum DC Current Gain hFE 250 | ||
Minimum Operating Temperature -55°C | ||
Maximum Transition Frequency ft 250MHz | ||
Maximum Emitter Base Voltage VEBO 7V | ||
Maximum Operating Temperature 150°C | ||
Pin Count 4 | ||
Length 5.15mm | ||
Height 6.4mm | ||
Series DXTP3C100PDQ | ||
Standards/Approvals RoHS | ||
Automotive Standard AEC-Q100, AEC-Q101, AEC-Q200 | ||
The DiodeZetex low sat transistor has collector base voltage of -100 V. It can be used for power management.
Halogen and antimony free
Applicable is power management
Backlighting applications
