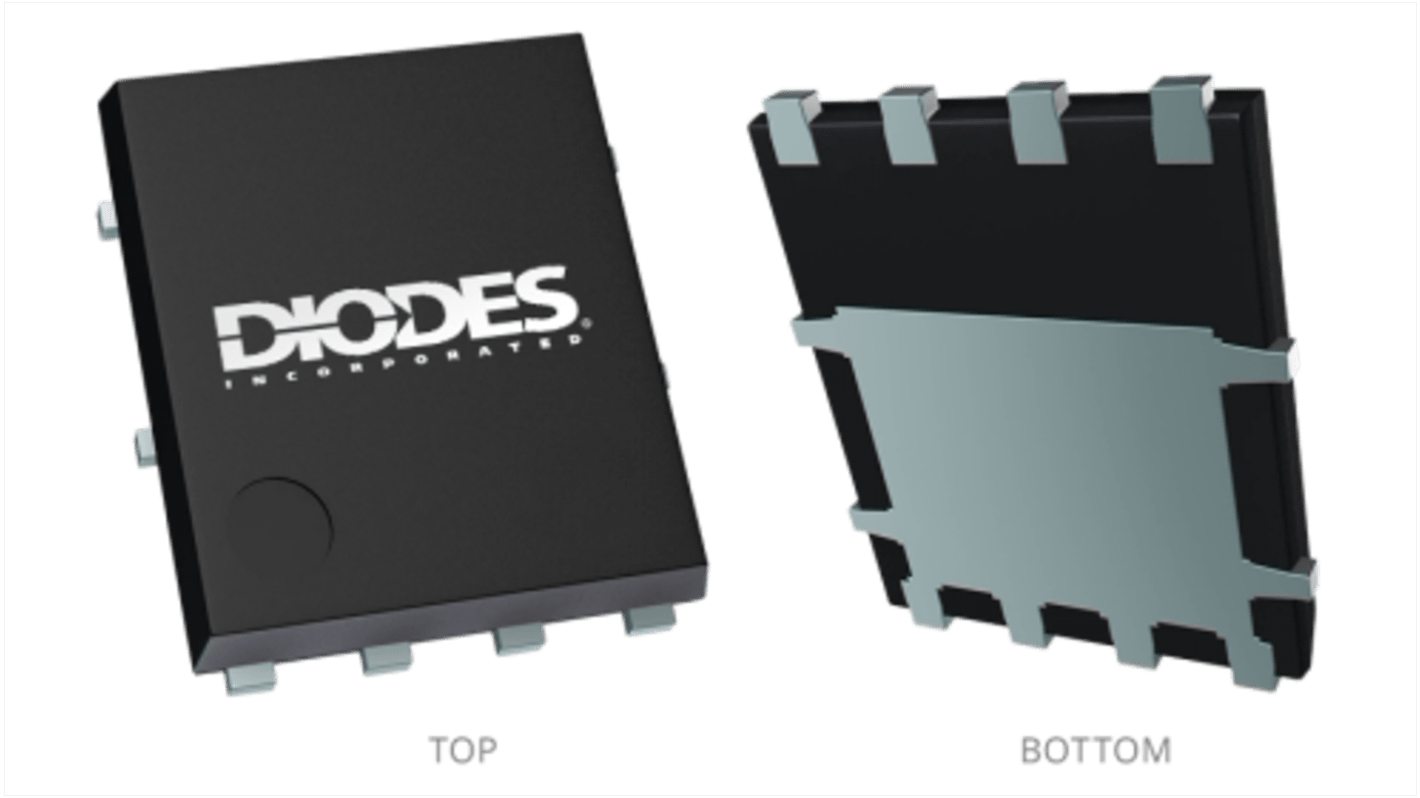

Diodes Inc Low Saturation Bipolar Transistor, -30 A PNP, -60 V, 8-Pin PowerDI5060-8
- RS Stock No.:
- 246-6944
- Mfr. Part No.:
- DXTP3C60PSQ-13
- Brand:
- DiodesZetex
Subtotal (1 reel of 2500 units)*
£455.00
(exc. VAT)
£545.00
(inc. VAT)
FREE delivery for orders over £60.00
Temporarily out of stock
- Shipping from 30 November 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Reel* |
|---|---|---|
| 2500 + | £0.182 | £455.00 |
*price indicative
- RS Stock No.:
- 246-6944
- Mfr. Part No.:
- DXTP3C60PSQ-13
- Brand:
- DiodesZetex
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | DiodesZetex | |
| Product Type | Low Saturation Bipolar Transistor | |
| Maximum DC Collector Current Idc | -30A | |
| Maximum Collector Emitter Voltage Vceo | -60V | |
| Package Type | PowerDI5060-8 | |
| Mount Type | Surface | |
| Transistor Configuration | Low Saturation | |
| Maximum Collector Base Voltage VCBO | -60V | |
| Maximum Emitter Base Voltage VEBO | -7V | |
| Minimum DC Current Gain hFE | 150 | |
| Maximum Power Dissipation Pd | 5W | |
| Transistor Polarity | PNP | |
| Maximum Transition Frequency ft | 135MHz | |
| Minimum Operating Temperature | -55°C | |
| Maximum Operating Temperature | 175°C | |
| Pin Count | 8 | |
| Standards/Approvals | RoHS | |
| Length | 5.15mm | |
| Series | DXTP3C60PSQ | |
| Height | 6.4mm | |
| Automotive Standard | AEC-Q100 | |
| Select all | ||
|---|---|---|
Brand DiodesZetex | ||
Product Type Low Saturation Bipolar Transistor | ||
Maximum DC Collector Current Idc -30A | ||
Maximum Collector Emitter Voltage Vceo -60V | ||
Package Type PowerDI5060-8 | ||
Mount Type Surface | ||
Transistor Configuration Low Saturation | ||
Maximum Collector Base Voltage VCBO -60V | ||
Maximum Emitter Base Voltage VEBO -7V | ||
Minimum DC Current Gain hFE 150 | ||
Maximum Power Dissipation Pd 5W | ||
Transistor Polarity PNP | ||
Maximum Transition Frequency ft 135MHz | ||
Minimum Operating Temperature -55°C | ||
Maximum Operating Temperature 175°C | ||
Pin Count 8 | ||
Standards/Approvals RoHS | ||
Length 5.15mm | ||
Series DXTP3C60PSQ | ||
Height 6.4mm | ||
Automotive Standard AEC-Q100 | ||
The DiodesZetex makes a PNP medium power transistors in a powerDI5060-8 package. The device is rated for 60V and temperatures exceeding 175°C, thus making it Ideal for applications which have high ambient temperature. The package is Lead, halogen and Antimony Free.
The Collector-Emitter voltage is -60 V The device has ul flammability classification rating of 94V-0 The device has moisture sensitivity of level 3 per J-STD-020 The Terminal finish is Matte Tin annealed over Copper
