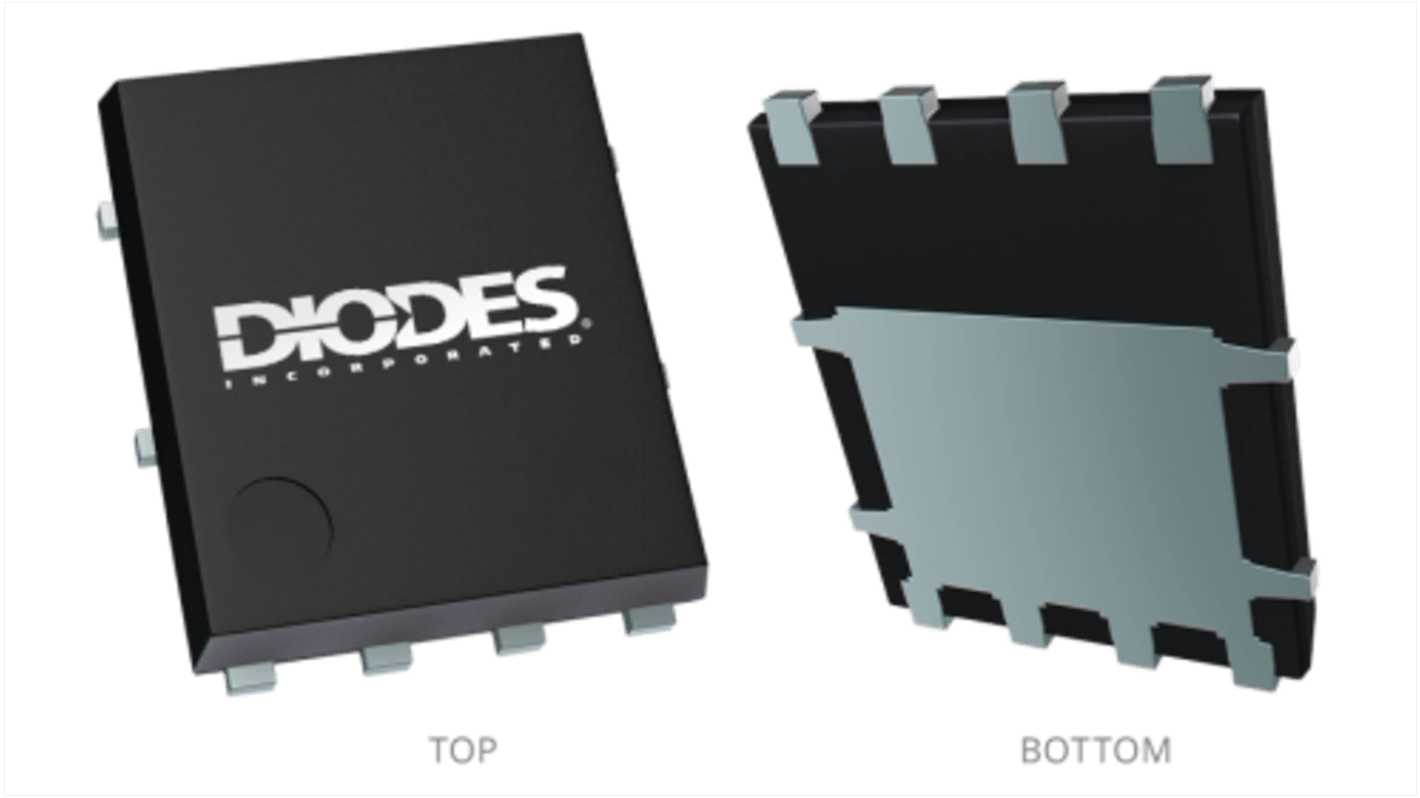

Diodes Inc Low Saturation Bipolar Transistor, -3 A PNP, -60 V, 8-Pin PowerDI5060-8
- RS Stock No.:
- 246-6942
- Mfr. Part No.:
- DXTP3C60PS-13
- Brand:
- DiodesZetex
Subtotal (1 reel of 2500 units)*
£492.50
(exc. VAT)
£590.00
(inc. VAT)
FREE delivery for orders over £60.00
Temporarily out of stock
- Shipping from 07 December 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Reel* |
|---|---|---|
| 2500 + | £0.197 | £492.50 |
*price indicative
- RS Stock No.:
- 246-6942
- Mfr. Part No.:
- DXTP3C60PS-13
- Brand:
- DiodesZetex
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | DiodesZetex | |
| Product Type | Low Saturation Bipolar Transistor | |
| Maximum DC Collector Current Idc | -3A | |
| Maximum Collector Emitter Voltage Vceo | -60V | |
| Package Type | PowerDI5060-8 | |
| Mount Type | Surface | |
| Transistor Configuration | Low Saturation | |
| Maximum Collector Base Voltage VCBO | -60V | |
| Maximum Emitter Base Voltage VEBO | -7V | |
| Minimum Operating Temperature | -55°C | |
| Maximum Transition Frequency ft | 120MHz | |
| Maximum Power Dissipation Pd | 5W | |
| Transistor Polarity | PNP | |
| Minimum DC Current Gain hFE | 150 | |
| Pin Count | 8 | |
| Maximum Operating Temperature | 175°C | |
| Standards/Approvals | RoHS | |
| Length | 5.15mm | |
| Series | DXTP3C60PS | |
| Height | 6.15mm | |
| Automotive Standard | AEC-Q101 | |
| Select all | ||
|---|---|---|
Brand DiodesZetex | ||
Product Type Low Saturation Bipolar Transistor | ||
Maximum DC Collector Current Idc -3A | ||
Maximum Collector Emitter Voltage Vceo -60V | ||
Package Type PowerDI5060-8 | ||
Mount Type Surface | ||
Transistor Configuration Low Saturation | ||
Maximum Collector Base Voltage VCBO -60V | ||
Maximum Emitter Base Voltage VEBO -7V | ||
Minimum Operating Temperature -55°C | ||
Maximum Transition Frequency ft 120MHz | ||
Maximum Power Dissipation Pd 5W | ||
Transistor Polarity PNP | ||
Minimum DC Current Gain hFE 150 | ||
Pin Count 8 | ||
Maximum Operating Temperature 175°C | ||
Standards/Approvals RoHS | ||
Length 5.15mm | ||
Series DXTP3C60PS | ||
Height 6.15mm | ||
Automotive Standard AEC-Q101 | ||
The DiodesZetex makes a PNP Low saturation medium power transistor in powerDi5060-8 package. It has BVCEO of more than -60V, with -3A of Continuous collector current. It offers -8A of Peak Pulse current with RCE(SAT) of less than 120 mΩ. The device is rated to +175°C, thus making it Ideal for high ambient temperature environments.
Lead, Halogen, Antimony free package Peak Pulse collector current of -8A Operating and storage temperature range of -55°C to +175°C
