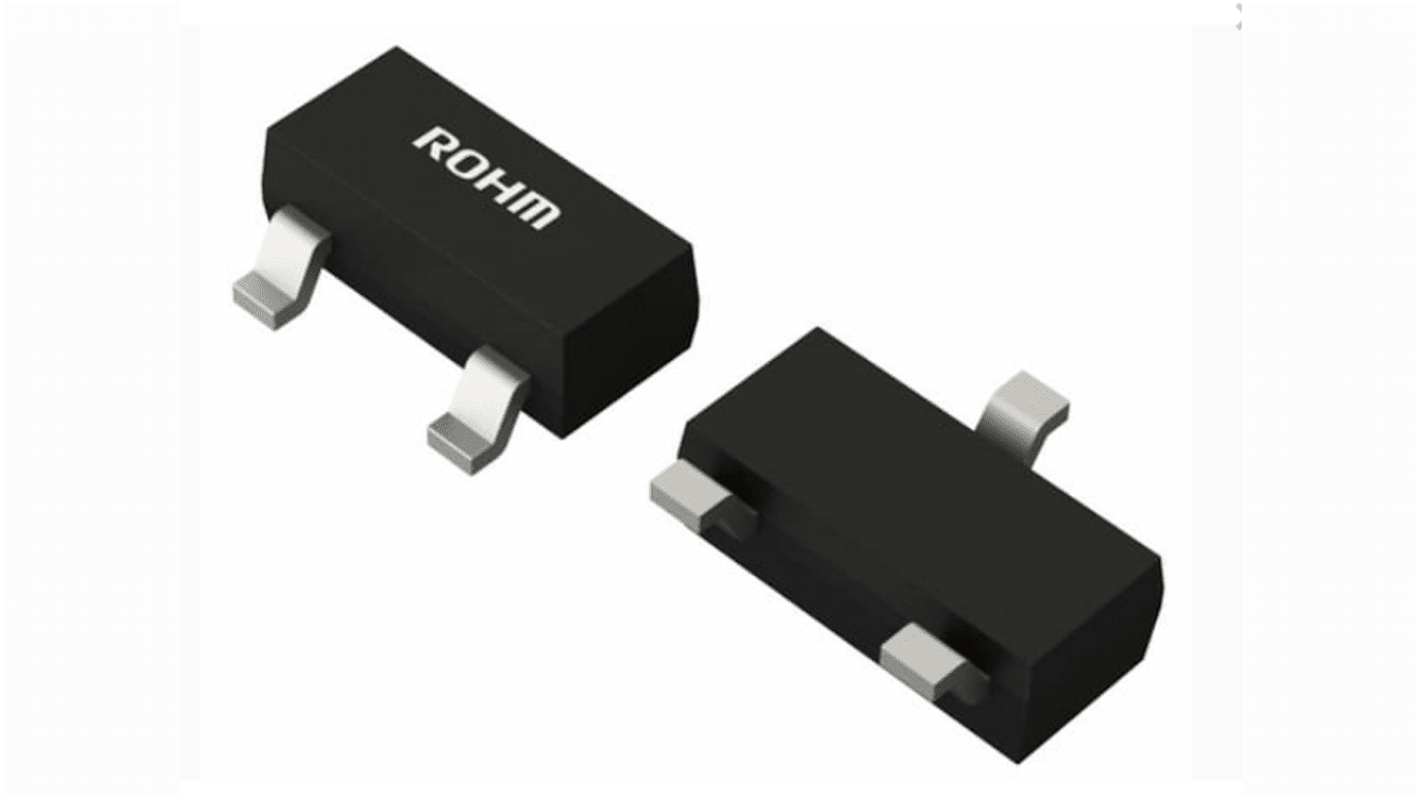

ROHM Bipolar Transistor, 600 mA NPN, 40 V, 3-Pin SOT-23
- RS Stock No.:
- 244-0126
- Mfr. Part No.:
- SST4401HZGT116
- Brand:
- ROHM
Subtotal (1 reel of 3000 units)*
£81.00
(exc. VAT)
£96.00
(inc. VAT)
FREE delivery for orders over £60.00
Temporarily out of stock
- Shipping from 28 September 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Reel* |
|---|---|---|
| 3000 + | £0.027 | £81.00 |
*price indicative
- RS Stock No.:
- 244-0126
- Mfr. Part No.:
- SST4401HZGT116
- Brand:
- ROHM
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | ROHM | |
| Product Type | Bipolar Transistor | |
| Maximum DC Collector Current Idc | 600mA | |
| Maximum Collector Emitter Voltage Vceo | 40V | |
| Package Type | SOT-23 | |
| Mount Type | Surface | |
| Maximum Collector Base Voltage VCBO | 60V | |
| Maximum Transition Frequency ft | 250MHz | |
| Minimum Operating Temperature | -55°C | |
| Transistor Polarity | NPN | |
| Minimum DC Current Gain hFE | 300 | |
| Maximum Emitter Base Voltage VEBO | 6V | |
| Maximum Power Dissipation Pd | 200mW | |
| Pin Count | 3 | |
| Maximum Operating Temperature | 150°C | |
| Height | 2.6mm | |
| Standards/Approvals | No | |
| Series | SST4401 HZG | |
| Length | 3.1mm | |
| Automotive Standard | No | |
| Select all | ||
|---|---|---|
Brand ROHM | ||
Product Type Bipolar Transistor | ||
Maximum DC Collector Current Idc 600mA | ||
Maximum Collector Emitter Voltage Vceo 40V | ||
Package Type SOT-23 | ||
Mount Type Surface | ||
Maximum Collector Base Voltage VCBO 60V | ||
Maximum Transition Frequency ft 250MHz | ||
Minimum Operating Temperature -55°C | ||
Transistor Polarity NPN | ||
Minimum DC Current Gain hFE 300 | ||
Maximum Emitter Base Voltage VEBO 6V | ||
Maximum Power Dissipation Pd 200mW | ||
Pin Count 3 | ||
Maximum Operating Temperature 150°C | ||
Height 2.6mm | ||
Standards/Approvals No | ||
Series SST4401 HZG | ||
Length 3.1mm | ||
Automotive Standard No | ||
The ROHM Automotive transistor is suitable for audio frequency small signal amplifier. It has collector emitter voltage of 40 V and collector current of 600 mA.
BVCEO=40V(Min.) at IC=1mA Complements the SST4403 HZG Package Size 2.9mmx2.4mm (t=1.2)
