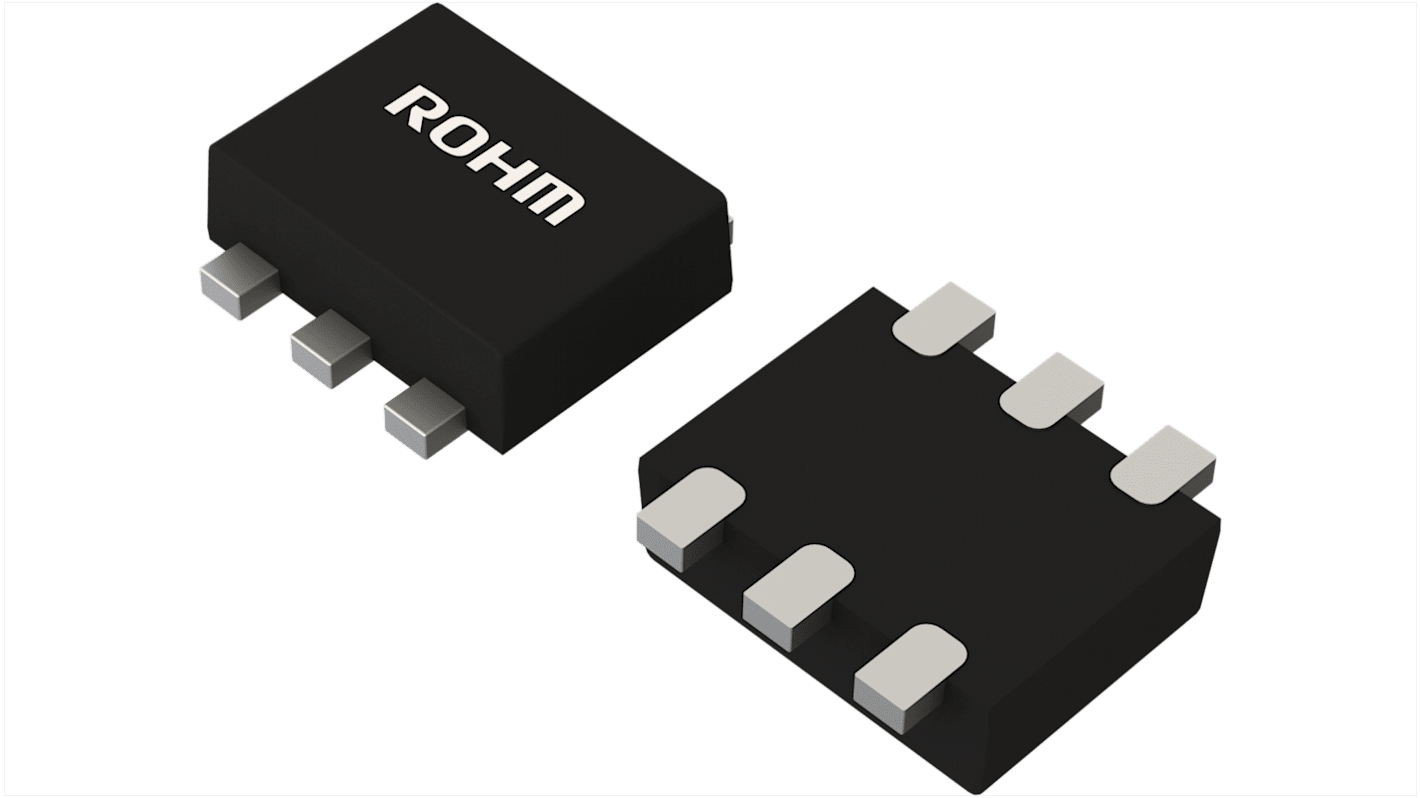

ROHM EMH53T2R Digital Transistor, 50 V NPN + NPN Surface SOT-563, 6-Pin
- RS Stock No.:
- 237-4324
- Mfr. Part No.:
- EMH53T2R
- Brand:
- ROHM
Bulk discount available
Subtotal (1 pack of 50 units)*
£7.75
(exc. VAT)
£9.30
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 7,900 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 50 - 50 | £0.155 | £7.75 |
| 100 - 450 | £0.138 | £6.90 |
| 500 - 950 | £0.135 | £6.75 |
| 1000 - 2450 | £0.131 | £6.55 |
| 2500 + | £0.128 | £6.40 |
*price indicative
- RS Stock No.:
- 237-4324
- Mfr. Part No.:
- EMH53T2R
- Brand:
- ROHM
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | ROHM | |
| Product Type | Digital Transistor | |
| Package Type | SOT-563 | |
| Maximum Collector Emitter Voltage Vceo | 50V | |
| Mount Type | Surface | |
| Transistor Configuration | Dual | |
| Maximum Collector Base Voltage VCBO | 50V | |
| Transistor Polarity | NPN + NPN | |
| Maximum Power Dissipation Pd | 150mW | |
| Minimum DC Current Gain hFE | 100 | |
| Maximum Emitter Base Voltage VEBO | 5V | |
| Pin Count | 6 | |
| Maximum Operating Temperature | 150°C | |
| Height | 0.55mm | |
| Series | EMH53 | |
| Length | 1.7mm | |
| Standards/Approvals | No | |
| Automotive Standard | No | |
| Select all | ||
|---|---|---|
Brand ROHM | ||
Product Type Digital Transistor | ||
Package Type SOT-563 | ||
Maximum Collector Emitter Voltage Vceo 50V | ||
Mount Type Surface | ||
Transistor Configuration Dual | ||
Maximum Collector Base Voltage VCBO 50V | ||
Transistor Polarity NPN + NPN | ||
Maximum Power Dissipation Pd 150mW | ||
Minimum DC Current Gain hFE 100 | ||
Maximum Emitter Base Voltage VEBO 5V | ||
Pin Count 6 | ||
Maximum Operating Temperature 150°C | ||
Height 0.55mm | ||
Series EMH53 | ||
Length 1.7mm | ||
Standards/Approvals No | ||
Automotive Standard No | ||
The ROHM EMH53 series NNP/NNP dual digital transistor has SOT-563 package. It has supply voltage of 50V and output collector current of 100mA.
Surface mount
Equivalent to DTC043T
Transistor elements are independent, eliminating Interface
Mounting cost and area can be cut in half
Storage temperature range between -55°C and 150°C
Power dissipation of 0.15W
