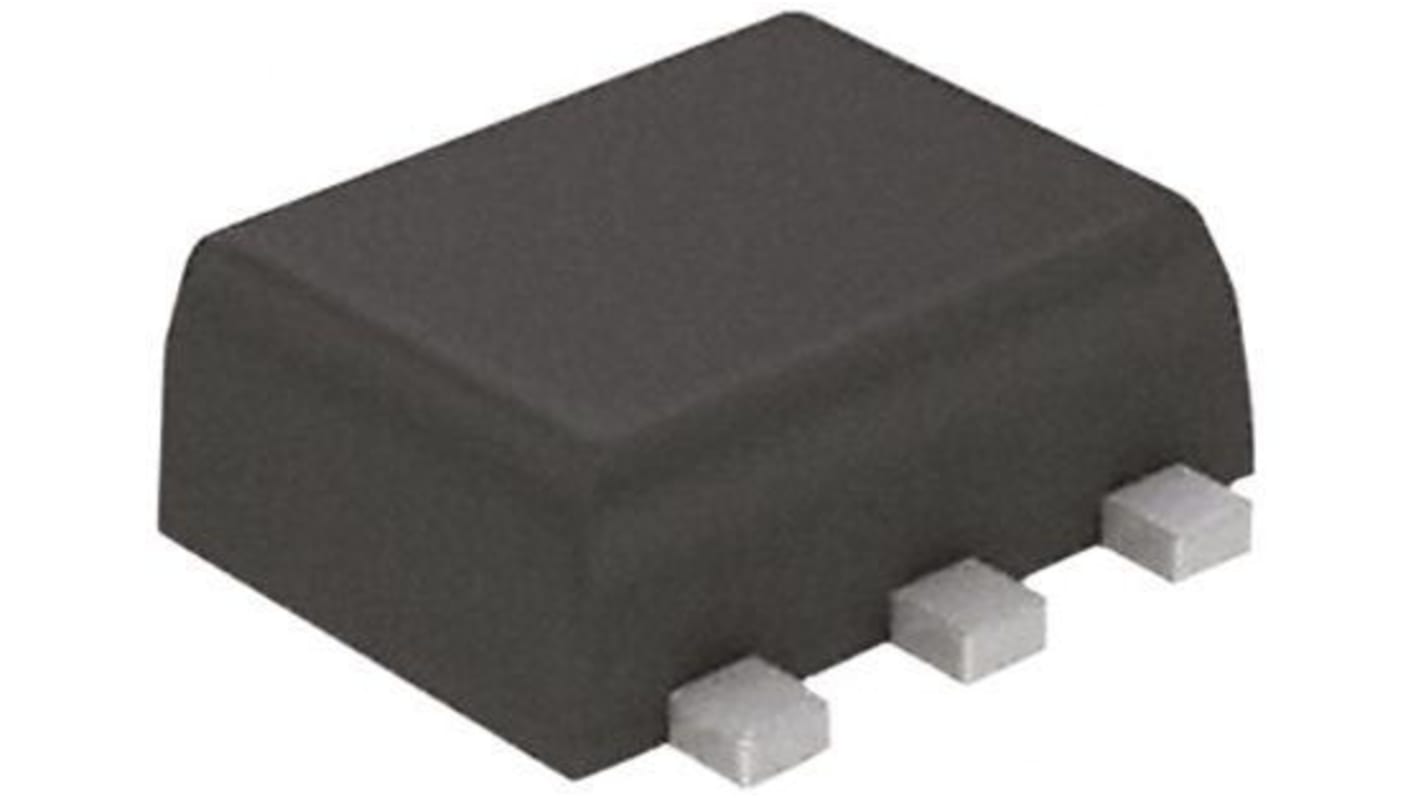

ROHM EMD22T2R Dual NPN/PNP Digital Transistor, 100 mA, 50 V, 6-Pin SOT-563
- RS Stock No.:
- 133-3192
- Mfr. Part No.:
- EMD22T2R
- Brand:
- ROHM
Bulk discount available
Subtotal (1 pack of 100 units)*
£15.50
(exc. VAT)
£18.60
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 16 January 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
---|---|---|
100 - 400 | £0.155 | £15.50 |
500 - 900 | £0.147 | £14.70 |
1000 - 4900 | £0.116 | £11.60 |
5000 - 9900 | £0.103 | £10.30 |
10000 + | £0.09 | £9.00 |
*price indicative
- RS Stock No.:
- 133-3192
- Mfr. Part No.:
- EMD22T2R
- Brand:
- ROHM
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | ROHM | |
Transistor Type | NPN/PNP | |
Maximum DC Collector Current | 100 mA | |
Maximum Collector Emitter Voltage | 50 V | |
Package Type | SOT-563 | |
Mounting Type | Surface Mount | |
Maximum Power Dissipation | 150 mW | |
Minimum DC Current Gain | 80 | |
Transistor Configuration | Dual Base | |
Maximum Emitter Base Voltage | 50 V | |
Pin Count | 6 | |
Number of Elements per Chip | 2 | |
Typical Resistor Ratio | 10 | |
Base-Emitter Resistor | 47kΩ | |
Dimensions | 1.7 x 1.3 x 0.45mm | |
Typical Input Resistor | 4.7 kΩ | |
Maximum Operating Temperature | +150 °C | |
Select all | ||
---|---|---|
Brand ROHM | ||
Transistor Type NPN/PNP | ||
Maximum DC Collector Current 100 mA | ||
Maximum Collector Emitter Voltage 50 V | ||
Package Type SOT-563 | ||
Mounting Type Surface Mount | ||
Maximum Power Dissipation 150 mW | ||
Minimum DC Current Gain 80 | ||
Transistor Configuration Dual Base | ||
Maximum Emitter Base Voltage 50 V | ||
Pin Count 6 | ||
Number of Elements per Chip 2 | ||
Typical Resistor Ratio 10 | ||
Base-Emitter Resistor 47kΩ | ||
Dimensions 1.7 x 1.3 x 0.45mm | ||
Typical Input Resistor 4.7 kΩ | ||
Maximum Operating Temperature +150 °C | ||
Dual Resistor Dual Digital NPN+PNP Transistors, ROHM
Digital Transistors, ROHM Semiconductor
Resistor-equipped bipolar transistors, also known as Digital Transistors or Bias Resistor Transistors, incorporating one or two integrated resistors. A single series input resistor, or a potential divider of two resistors, allows these devices to be directly driven from digital sources. Both single and dual transistor versions are available.
