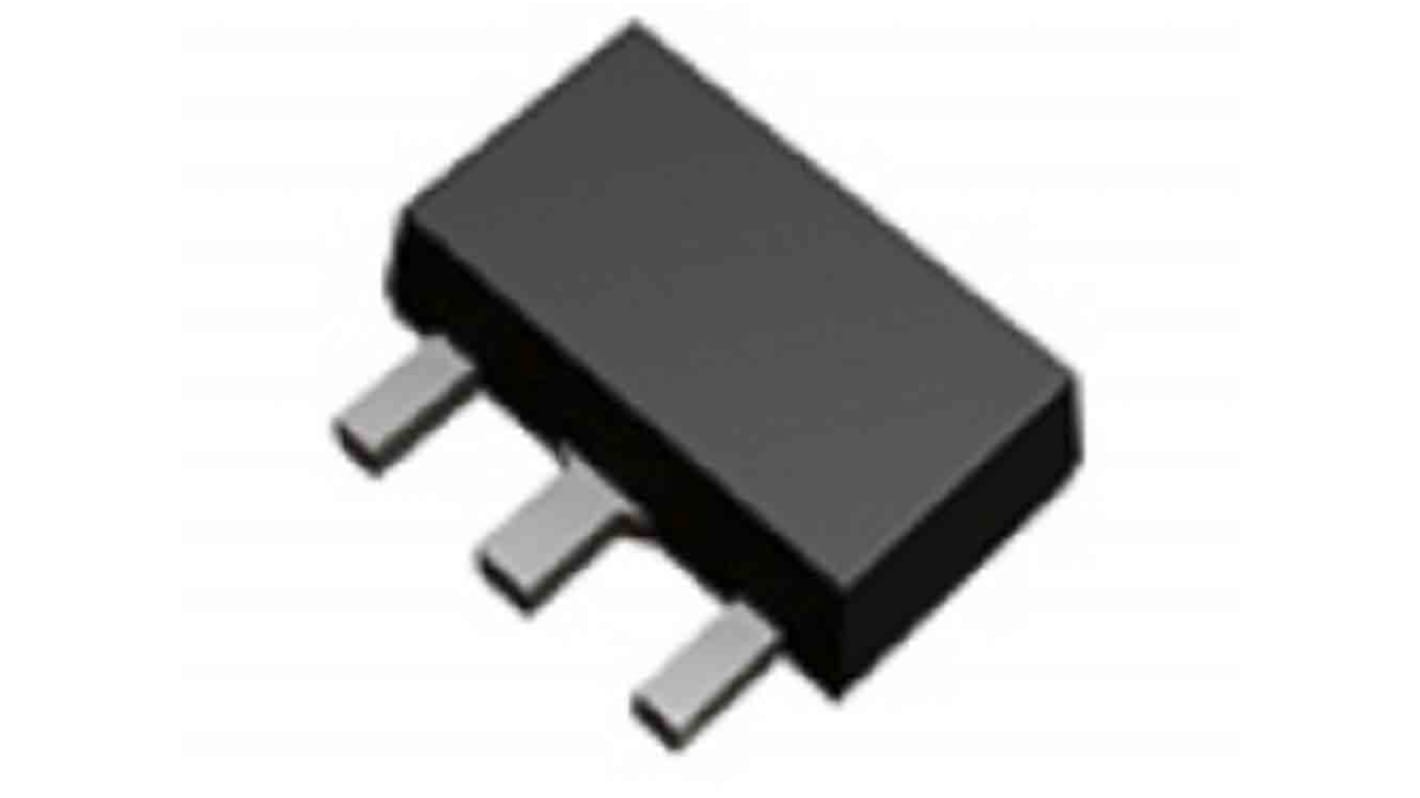

ROHM 2SCR513PHZGT100 Transistor, 1 A NPN, 50 V, 3-Pin SOT-89
- RS Stock No.:
- 222-4047
- Mfr. Part No.:
- 2SCR513PHZGT100
- Brand:
- ROHM
Bulk discount available
Subtotal (1 reel of 1000 units)*
£194.00
(exc. VAT)
£233.00
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 02 April 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Reel* |
|---|---|---|
| 1000 - 2000 | £0.194 | £194.00 |
| 3000 + | £0.188 | £188.00 |
*price indicative
- RS Stock No.:
- 222-4047
- Mfr. Part No.:
- 2SCR513PHZGT100
- Brand:
- ROHM
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | ROHM | |
| Product Type | Transistor | |
| Maximum DC Collector Current Idc | 1A | |
| Maximum Collector Emitter Voltage Vceo | 50V | |
| Package Type | SOT-89 | |
| Mount Type | Surface | |
| Transistor Configuration | Single | |
| Maximum Collector Base Voltage VCBO | 50V | |
| Maximum Emitter Base Voltage VEBO | 6V | |
| Minimum DC Current Gain hFE | 180 | |
| Transistor Polarity | NPN | |
| Maximum Power Dissipation Pd | 500mW | |
| Maximum Transition Frequency ft | 360MHz | |
| Maximum Operating Temperature | 150°C | |
| Pin Count | 3 | |
| Height | 1.6mm | |
| Standards/Approvals | No | |
| Series | 2SCR513PHZG | |
| Length | 4.7mm | |
| Width | 2.7 mm | |
| Automotive Standard | AEC-Q101 | |
| Select all | ||
|---|---|---|
Brand ROHM | ||
Product Type Transistor | ||
Maximum DC Collector Current Idc 1A | ||
Maximum Collector Emitter Voltage Vceo 50V | ||
Package Type SOT-89 | ||
Mount Type Surface | ||
Transistor Configuration Single | ||
Maximum Collector Base Voltage VCBO 50V | ||
Maximum Emitter Base Voltage VEBO 6V | ||
Minimum DC Current Gain hFE 180 | ||
Transistor Polarity NPN | ||
Maximum Power Dissipation Pd 500mW | ||
Maximum Transition Frequency ft 360MHz | ||
Maximum Operating Temperature 150°C | ||
Pin Count 3 | ||
Height 1.6mm | ||
Standards/Approvals No | ||
Series 2SCR513PHZG | ||
Length 4.7mm | ||
Width 2.7 mm | ||
Automotive Standard AEC-Q101 | ||
The ROHM is Low saturation voltage and high speed switching transistor for low frequency amplifier. It highly reliable product for automotive.
Low saturation voltage VCE(sat)350mV(Max.)(IC/IB500mA/25mA)
High speed switching
AEC-Q101 Qualified
