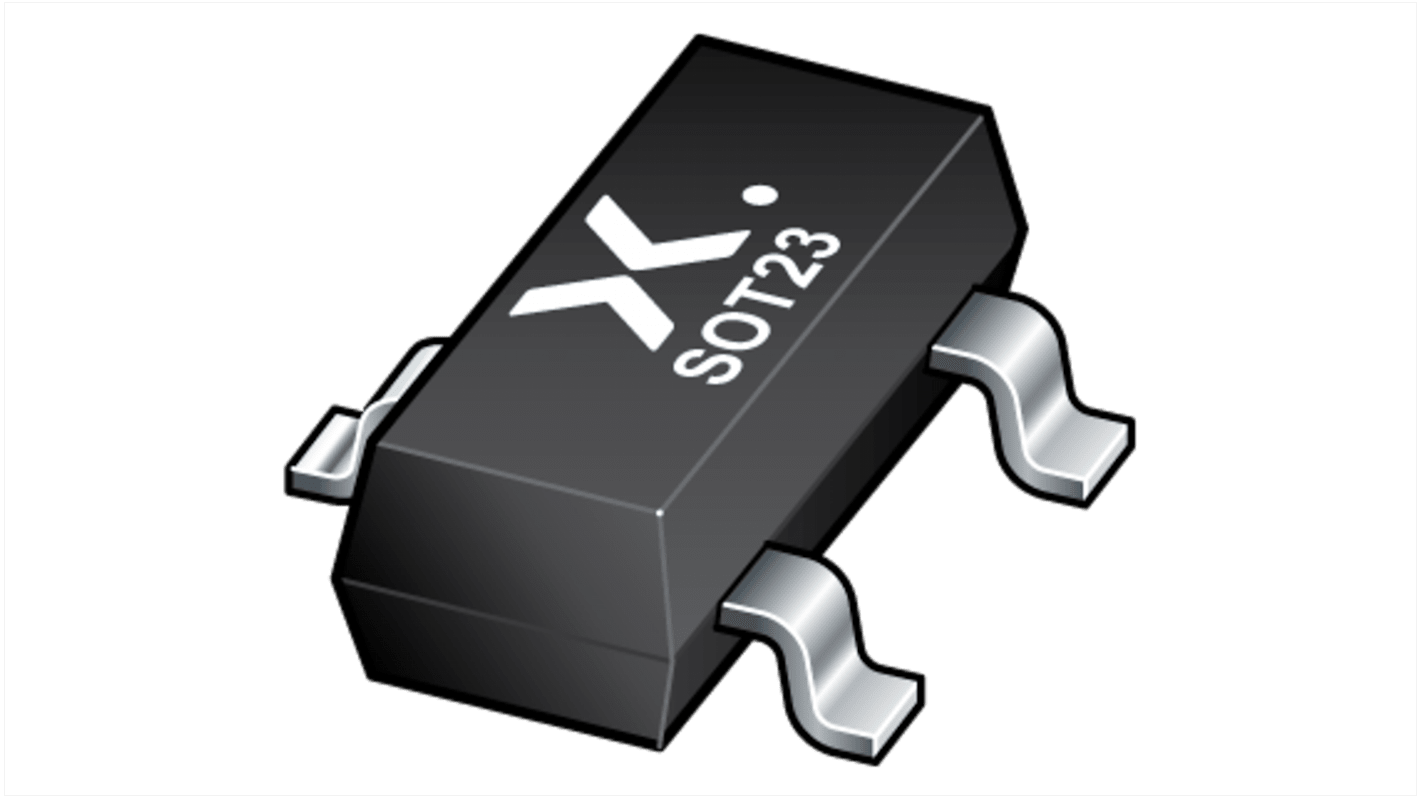

Nexperia BC807-25,235 PNP Transistor, -500 mA PNP, -45 V, 3-Pin SOT-23
- RS Stock No.:
- 219-4303
- Mfr. Part No.:
- BC807-25,235
- Brand:
- Nexperia
Bulk discount available
Subtotal (1 pack of 200 units)*
£5.40
(exc. VAT)
£6.40
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- 10,000 unit(s) shipping from 19 May 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 200 - 800 | £0.027 | £5.40 |
| 1000 - 1800 | £0.016 | £3.20 |
| 2000 - 2800 | £0.016 | £3.20 |
| 3000 - 4800 | £0.012 | £2.40 |
| 5000 + | £0.012 | £2.40 |
*price indicative
- RS Stock No.:
- 219-4303
- Mfr. Part No.:
- BC807-25,235
- Brand:
- Nexperia
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Nexperia | |
| Product Type | PNP Transistor | |
| Maximum DC Collector Current Idc | -500mA | |
| Maximum Collector Emitter Voltage Vceo | -45V | |
| Package Type | SOT-23 | |
| Mount Type | Surface | |
| Transistor Configuration | Single | |
| Maximum Collector Base Voltage VCBO | -50V | |
| Minimum DC Current Gain hFE | 100 | |
| Minimum Operating Temperature | -65°C | |
| Maximum Transition Frequency ft | 100MHz | |
| Transistor Polarity | PNP | |
| Maximum Emitter Base Voltage VEBO | -5V | |
| Maximum Power Dissipation Pd | 345mW | |
| Maximum Operating Temperature | 150°C | |
| Pin Count | 3 | |
| Width | 1.4 mm | |
| Standards/Approvals | IEC 60134 | |
| Series | BC807 | |
| Length | 3mm | |
| Height | 1.1mm | |
| Automotive Standard | AEC-Q101 | |
| Select all | ||
|---|---|---|
Brand Nexperia | ||
Product Type PNP Transistor | ||
Maximum DC Collector Current Idc -500mA | ||
Maximum Collector Emitter Voltage Vceo -45V | ||
Package Type SOT-23 | ||
Mount Type Surface | ||
Transistor Configuration Single | ||
Maximum Collector Base Voltage VCBO -50V | ||
Minimum DC Current Gain hFE 100 | ||
Minimum Operating Temperature -65°C | ||
Maximum Transition Frequency ft 100MHz | ||
Transistor Polarity PNP | ||
Maximum Emitter Base Voltage VEBO -5V | ||
Maximum Power Dissipation Pd 345mW | ||
Maximum Operating Temperature 150°C | ||
Pin Count 3 | ||
Width 1.4 mm | ||
Standards/Approvals IEC 60134 | ||
Series BC807 | ||
Length 3mm | ||
Height 1.1mm | ||
Automotive Standard AEC-Q101 | ||
The Nexperia BC807 PNP general-purpose transistors in a small SOT23 (TO-236AB) Surface-Mounted Device (SMD) plastic package.
High current
Three current gain selections
AEC-Q101 qualified
