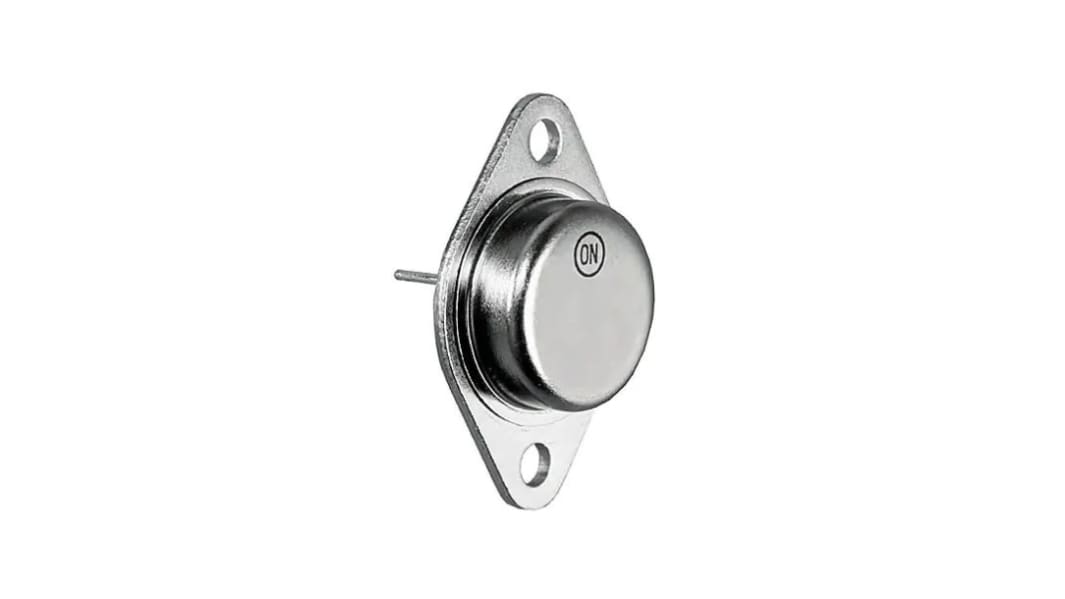

onsemi MJ21195G Transistor, -30 A PNP, -250 V, 3-Pin TO-204
- RS Stock No.:
- 184-4938
- Mfr. Part No.:
- MJ21195G
- Brand:
- onsemi
Bulk discount available
Subtotal (1 pack of 10 units)*
£42.54
(exc. VAT)
£51.05
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 90 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 10 - 90 | £4.254 | £42.54 |
| 100 + | £3.901 | £39.01 |
*price indicative
- RS Stock No.:
- 184-4938
- Mfr. Part No.:
- MJ21195G
- Brand:
- onsemi
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | onsemi | |
| Product Type | Transistor | |
| Maximum DC Collector Current Idc | -30A | |
| Maximum Collector Emitter Voltage Vceo | -250V | |
| Package Type | TO-204 | |
| Mount Type | Through Hole | |
| Transistor Configuration | Single | |
| Maximum Collector Base Voltage VCBO | 400V dc | |
| Maximum Emitter Base Voltage VEBO | 5V dc | |
| Minimum DC Current Gain hFE | 25 | |
| Maximum Transition Frequency ft | 1MHz | |
| Minimum Operating Temperature | -65°C | |
| Transistor Polarity | PNP | |
| Maximum Power Dissipation Pd | 250W | |
| Maximum Operating Temperature | 200°C | |
| Pin Count | 3 | |
| Length | 39.37mm | |
| Height | 8.51mm | |
| Standards/Approvals | No | |
| Automotive Standard | No | |
| Select all | ||
|---|---|---|
Brand onsemi | ||
Product Type Transistor | ||
Maximum DC Collector Current Idc -30A | ||
Maximum Collector Emitter Voltage Vceo -250V | ||
Package Type TO-204 | ||
Mount Type Through Hole | ||
Transistor Configuration Single | ||
Maximum Collector Base Voltage VCBO 400V dc | ||
Maximum Emitter Base Voltage VEBO 5V dc | ||
Minimum DC Current Gain hFE 25 | ||
Maximum Transition Frequency ft 1MHz | ||
Minimum Operating Temperature -65°C | ||
Transistor Polarity PNP | ||
Maximum Power Dissipation Pd 250W | ||
Maximum Operating Temperature 200°C | ||
Pin Count 3 | ||
Length 39.37mm | ||
Height 8.51mm | ||
Standards/Approvals No | ||
Automotive Standard No | ||
- COO (Country of Origin):
- MX
The MJ21195G and MJ21196G utilize Perforated Emitter technology and a specifically designed for high power audio output, disk head positioners and linear applications.
Total Harmonic Distortion Characterized
High DC Current Gain - hFE = 25 Min @ IC = 8 Adc
Excellent Gain Linearity
High SOA: 3 A, 80 V, 1 Second
