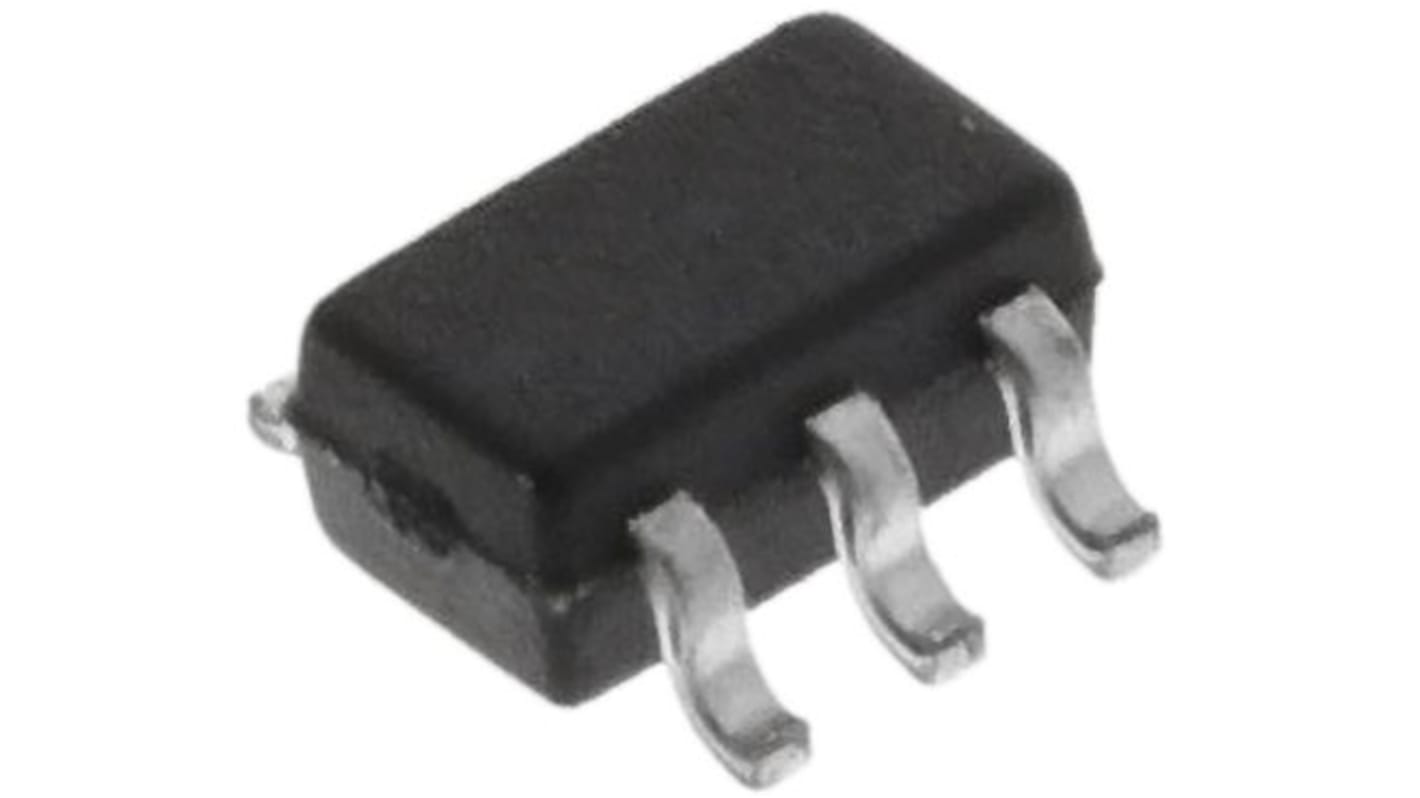

onsemi BC848CPDW1T1G Dual NPN/PNP Transistor, 200 mA, 30 V, 6-Pin SOT-363
- RS Stock No.:
- 184-4178
- Mfr. Part No.:
- BC848CPDW1T1G
- Brand:
- onsemi
6000 In stock - FREE next working day delivery available
Added
Price Each (On a Reel of 3000)
£0.026
(exc. VAT)
£0.031
(inc. VAT)
| Units | Per unit | Per Reel* |
| 3000 - 6000 | £0.026 | £78.00 |
| 9000 - 12000 | £0.023 | £69.00 |
| 15000 + | £0.021 | £63.00 |
| *price indicative | ||
- RS Stock No.:
- 184-4178
- Mfr. Part No.:
- BC848CPDW1T1G
- Brand:
- onsemi
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- CN
Product Details
General Purpose NPN Transistors, up to 1A, ON Semiconductor
Standards
Manufacturer Part Nos with S or NSV prefix are automotive qualified to AEC-Q101 standard.
The Dual NPN PNP Bipolar Transistor is designed for general purpose amplifier applications. It is housed in the SOT-363/SC-88 package, which is designed for low power surface mount applications.
S Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements, PPAP Capable
These Devices are Pb-Free, Halogen Free/BFR Free
These Devices are Pb-Free, Halogen Free/BFR Free
Specifications
Attribute | Value |
|---|---|
| Transistor Type | NPN/PNP |
| Maximum DC Collector Current | 200 mA |
| Maximum Collector Emitter Voltage | 30 V |
| Package Type | SOT-363 |
| Mounting Type | Surface Mount |
| Maximum Power Dissipation | 380 mW |
| Minimum DC Current Gain | 420 |
| Maximum Collector Base Voltage | 30 V |
| Maximum Emitter Base Voltage | 6 V |
| Maximum Operating Frequency | 100 MHz |
| Pin Count | 6 |
| Number of Elements per Chip | 2 |
| Maximum Operating Temperature | +150 °C |
| Dimensions | 2.2 x 1.35 x 1mm |
