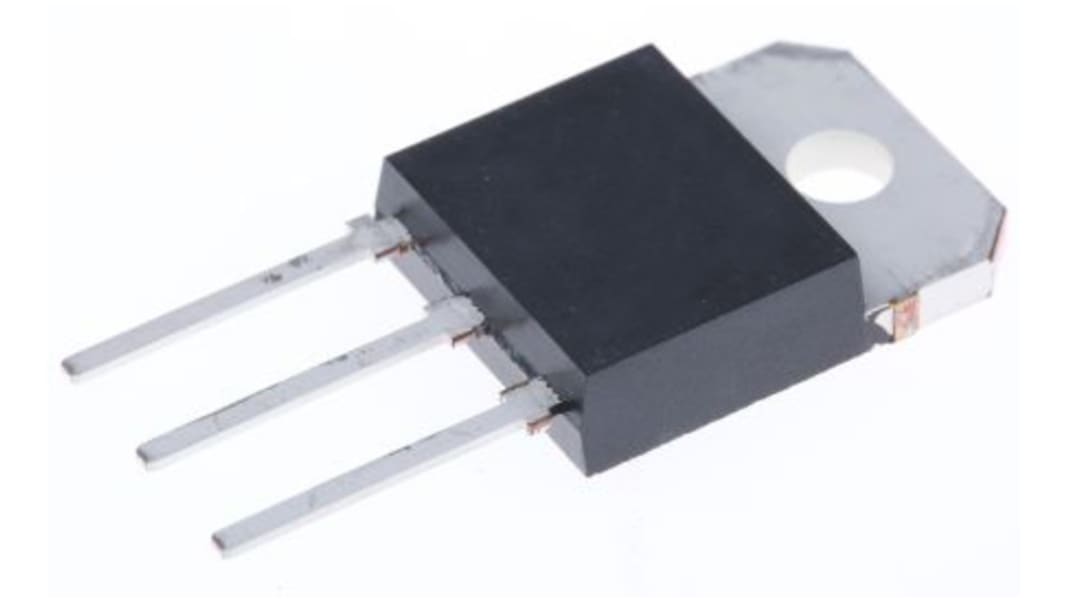

onsemi MJH6287G Transistor, -40 A PNP, -100 V, 3-Pin TO-218
- RS Stock No.:
- 184-1193
- Mfr. Part No.:
- MJH6287G
- Brand:
- onsemi
Bulk discount available
View bulk pricing optionsSubtotal (1 pack of 2 units)*
£8.92
(exc. VAT)
£10.70
(inc. VAT)
FREE delivery for orders over £60.00
Temporarily out of stock
- 4 unit(s) shipping from 15 July 2026
- Plus 60 unit(s) shipping from 11 August 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 2 - 18 | £4.46 | £8.92 |
| 20 + | £3.845 | £7.69 |
*price indicative
- RS Stock No.:
- 184-1193
- Mfr. Part No.:
- MJH6287G
- Brand:
- onsemi
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | onsemi | |
| Product Type | Transistor | |
| Maximum DC Collector Current Idc | -40A | |
| Maximum Collector Emitter Voltage Vceo | -100V | |
| Package Type | TO-218 | |
| Mount Type | Through Hole | |
| Transistor Configuration | Single | |
| Maximum Collector Base Voltage VCBO | 100V | |
| Minimum Operating Temperature | -65°C | |
| Transistor Polarity | PNP | |
| Maximum Emitter Base Voltage VEBO | 5V | |
| Minimum DC Current Gain hFE | 100 | |
| Maximum Power Dissipation Pd | 160W | |
| Maximum Transition Frequency ft | 1MHz | |
| Maximum Operating Temperature | 150°C | |
| Pin Count | 3 | |
| Standards/Approvals | No | |
| Length | 16.26mm | |
| Height | 33.15mm | |
| Automotive Standard | No | |
| Select all | ||
|---|---|---|
Brand onsemi | ||
Product Type Transistor | ||
Maximum DC Collector Current Idc -40A | ||
Maximum Collector Emitter Voltage Vceo -100V | ||
Package Type TO-218 | ||
Mount Type Through Hole | ||
Transistor Configuration Single | ||
Maximum Collector Base Voltage VCBO 100V | ||
Minimum Operating Temperature -65°C | ||
Transistor Polarity PNP | ||
Maximum Emitter Base Voltage VEBO 5V | ||
Minimum DC Current Gain hFE 100 | ||
Maximum Power Dissipation Pd 160W | ||
Maximum Transition Frequency ft 1MHz | ||
Maximum Operating Temperature 150°C | ||
Pin Count 3 | ||
Standards/Approvals No | ||
Length 16.26mm | ||
Height 33.15mm | ||
Automotive Standard No | ||
- COO (Country of Origin):
- CN
The Darlington Bipolar Power Transistor is designed for general-purpose amplifier and low speed switching motor control applications.
Switching Regulators Collector-Emitter Voltage VCEV = 1000 Vdc
Inverters
Fast Turn-Off Times
Solenoids 80 ns Inductive Fall Time 100 C (Typ)
Relay Drivers 120 ns Inductive Crossover Time 100 C (T
Motor Controls 800 ns Inductive Storage Time 100 C (T
Deflection Circuits
100 C Performance Specified for: Reverse-Biased SOA with Inductive Load Switching Times with Inductive Loads Saturation Voltages Leakage Currents
Extended FBSOA Rating Using Ultra-fast Rectifiers
Extremely High RBSOA Capability
