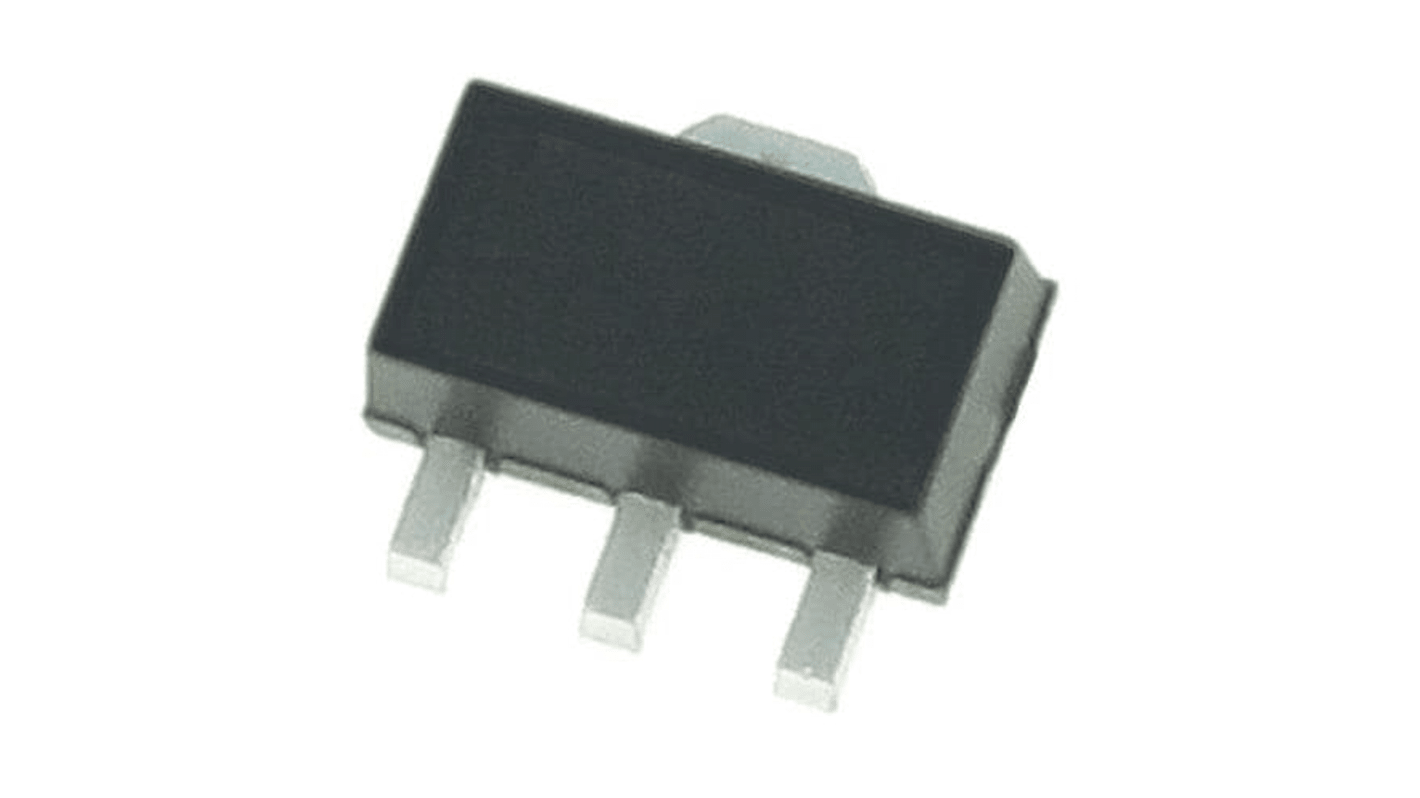

STMicroelectronics 2STF1360 NPN Transistor, 3 A, 60 V, 3-Pin SOT-89
- RS Stock No.:
- 178-5120
- Mfr. Part No.:
- 2STF1360
- Brand:
- STMicroelectronics
Available to back order for despatch 22/10/2024
Added
Price Each (On a Reel of 2500)
£0.138
(exc. VAT)
£0.166
(inc. VAT)
| Units | Per unit | Per Reel* |
| 2500 + | £0.138 | £345.00 |
| *price indicative | ||
- RS Stock No.:
- 178-5120
- Mfr. Part No.:
- 2STF1360
- Brand:
- STMicroelectronics
Legislation and Compliance
Product Details
General Purpose NPN Transistors, STMicroelectronics
The STMicroelectronics low voltage fast-switching NPN power transistor new low voltage planar technology with double metal process. The result is a transistor which boasts exceptionally high gain performance coupled with very low saturation voltage. The complementary PNP types are the 2STD2360T4, the 2STF2360 and the 2STN2360.
Very low collector-emitter saturation voltage
High current gain characteristic
Fast-switching speed
High current gain characteristic
Fast-switching speed
Bipolar Transistors, STMicroelectronics
A broad range of NPN and PNP Bipolar Transistors from STMicroelectronics including General Purpose, Darlington, Power and High-Voltage devices in both SMT and Through-hole packages.
Specifications
Attribute | Value |
|---|---|
| Transistor Type | NPN |
| Maximum DC Collector Current | 3 A |
| Maximum Collector Emitter Voltage | 60 V |
| Package Type | SOT-89 |
| Mounting Type | Surface Mount |
| Maximum Power Dissipation | 1.4 W |
| Minimum DC Current Gain | 160 |
| Transistor Configuration | Single |
| Maximum Collector Base Voltage | 80 V |
| Maximum Emitter Base Voltage | 6 V |
| Maximum Operating Frequency | 130 MHz |
| Pin Count | 3 |
| Number of Elements per Chip | 1 |
| Dimensions | 1.6 x 4.6 x 2.6mm |
| Maximum Operating Temperature | +150 °C |
