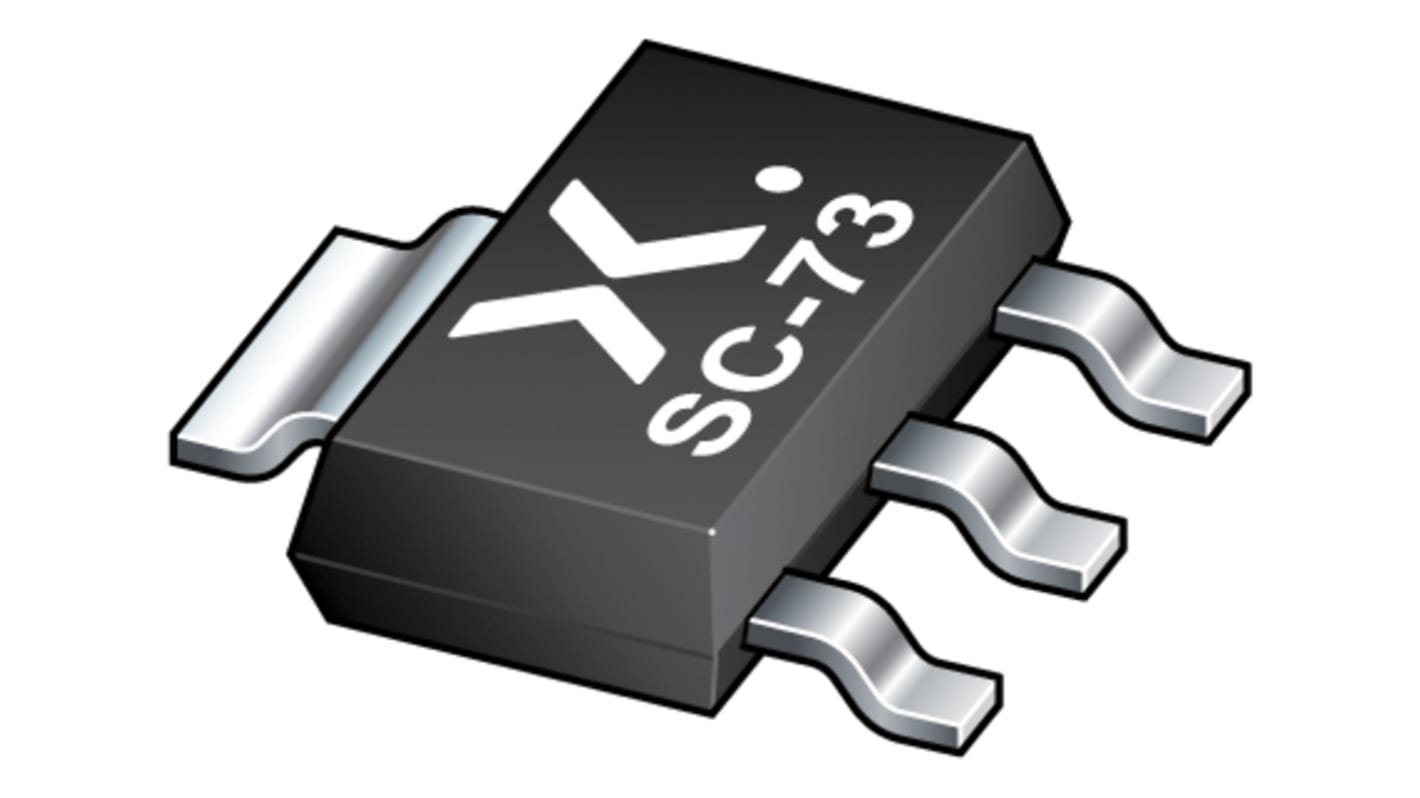

Nexperia BCP56-16TX NPN Transistor, 1 A, 80 V, 3-Pin SOT-223

View all Bipolar Transistors
Bulk discount available

Subtotal (1 pack of 100 units)*

£7.90

(exc. VAT)

£9.50

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 39,200 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
Per Pack*
100 - 100£0.079£7.90
200 - 200£0.075£7.50
300 - 400£0.072£7.20
500 +£0.068£6.80

*price indicative

RS Stock No.:
151-2828
Mfr. Part No.:
BCP56-16TX
Brand:
Nexperia
Find similar products by selecting one or more attributes.
Select all

Brand

Nexperia

Transistor Type

NPN

Maximum DC Collector Current

1 A

Maximum Collector Emitter Voltage

80 V

Package Type

SOT-223 (SC-73)

Mounting Type

Surface Mount

Maximum Power Dissipation

1.35 W

Minimum DC Current Gain

100

Transistor Configuration

Single

Maximum Collector Base Voltage

100 V

Maximum Emitter Base Voltage

5 V

Maximum Operating Frequency

180 MHz

Pin Count

3

Number of Elements per Chip

1

Dimensions

6.7 x 3.7 x 1.8mm

Maximum Operating Temperature

+150 °C

COO (Country of Origin):
CN
Small, space-saving solutions, Within our 300+ strong, small-signal bipolar device portfolio you can find many single PNP transistors. Ideal for your switching and amplification applications, with package options such as our ultra small lead less housing SOT883 making them an excellent choice for compact designs.

Ultra small 1006 sized SOT883 (SC-101) leadless package
Broad choice of SMD and leaded package options
Wide range of double and single functions
More than 300 different products

80 V, 1 A NPN medium power transistors, PNP medium power transistors in a medium power SOT223 (SC-73) Surface-Mounted Device (SMD) plastic package.

High collector current capability IC and ICM
Three current gain selections
High power dissipation capability
AEC-Q101 qualified
