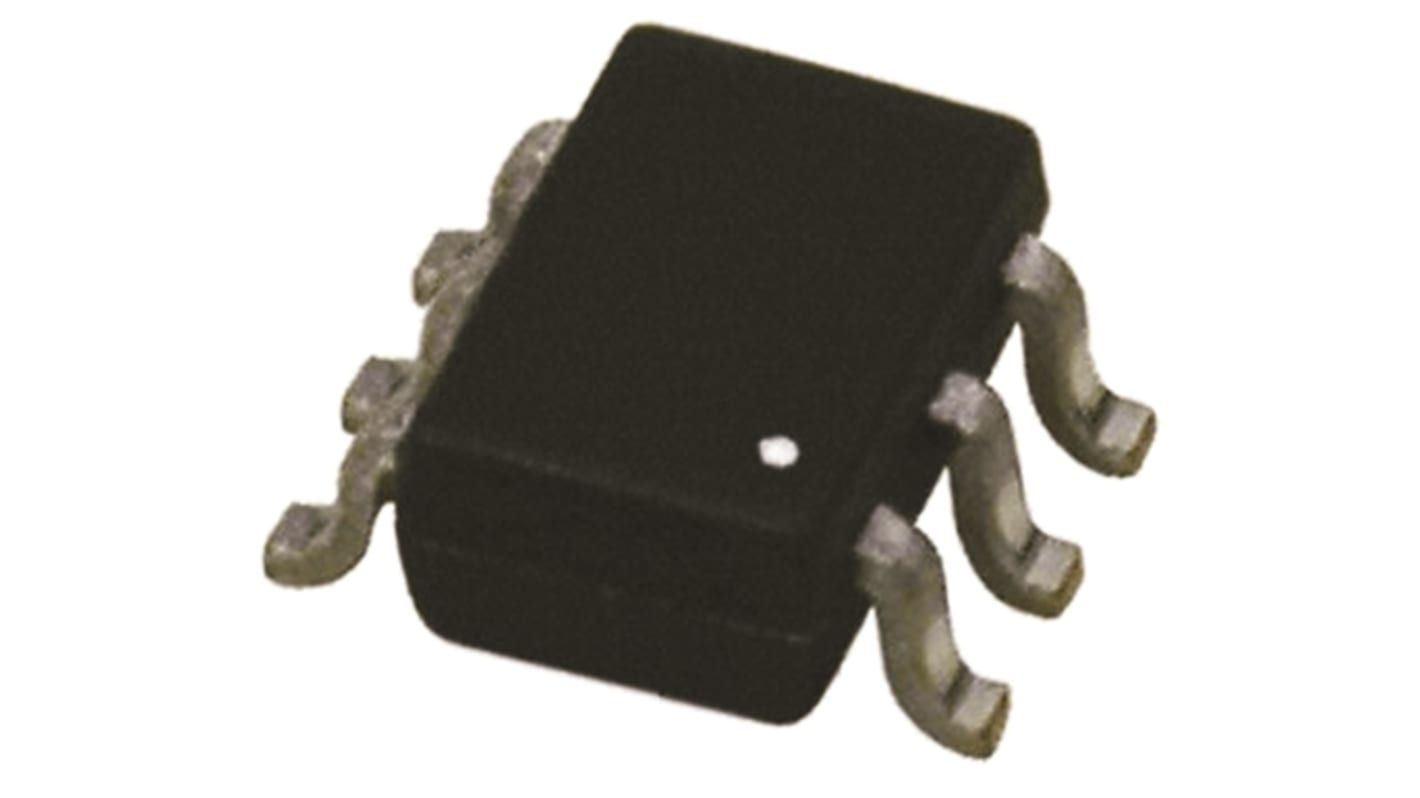

Diodes Inc Transistor, 600 mA NPN, 40 V, 6-Pin SOT-363

Subtotal (1 reel of 3000 units)*

£204.00

(exc. VAT)

£246.00

(inc. VAT)

Temporarily out of stock

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit	Per Reel*
3000 +	£0.068	£204.00

*price indicative

Specifications

Technical Reference

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	DiodesZetex
	Product Type	Transistor
	Maximum DC Collector Current Idc	600mA
	Maximum Collector Emitter Voltage Vceo	40V
	Package Type	SOT-363
	Mount Type	Surface
	Transistor Configuration	Isolated
	Maximum Collector Base Voltage VCBO	75V
	Minimum Operating Temperature	-55°C
	Maximum Emitter Base Voltage VEBO	6V
	Transistor Polarity	NPN
	Minimum DC Current Gain hFE	35
	Maximum Transition Frequency ft	300MHz
	Maximum Power Dissipation Pd	200mW
	Maximum Operating Temperature	150°C
	Pin Count	6
	Width	2.2 mm
	Standards/Approvals	No
	Series	MMDT
	Height	1.1mm
	Length	2.2mm
	Automotive Standard	AEC-Q101

	Select all
	Brand DiodesZetex
	Product Type Transistor
	Maximum DC Collector Current Idc 600mA
	Maximum Collector Emitter Voltage Vceo 40V
	Package Type SOT-363
	Mount Type Surface
	Transistor Configuration Isolated
	Maximum Collector Base Voltage VCBO 75V
	Minimum Operating Temperature -55°C
	Maximum Emitter Base Voltage VEBO 6V
	Transistor Polarity NPN
	Minimum DC Current Gain hFE 35
	Maximum Transition Frequency ft 300MHz
	Maximum Power Dissipation Pd 200mW
	Maximum Operating Temperature 150°C
	Pin Count 6
	Width 2.2 mm
	Standards/Approvals No
	Series MMDT
	Height 1.1mm
	Length 2.2mm
	Automotive Standard AEC-Q101
