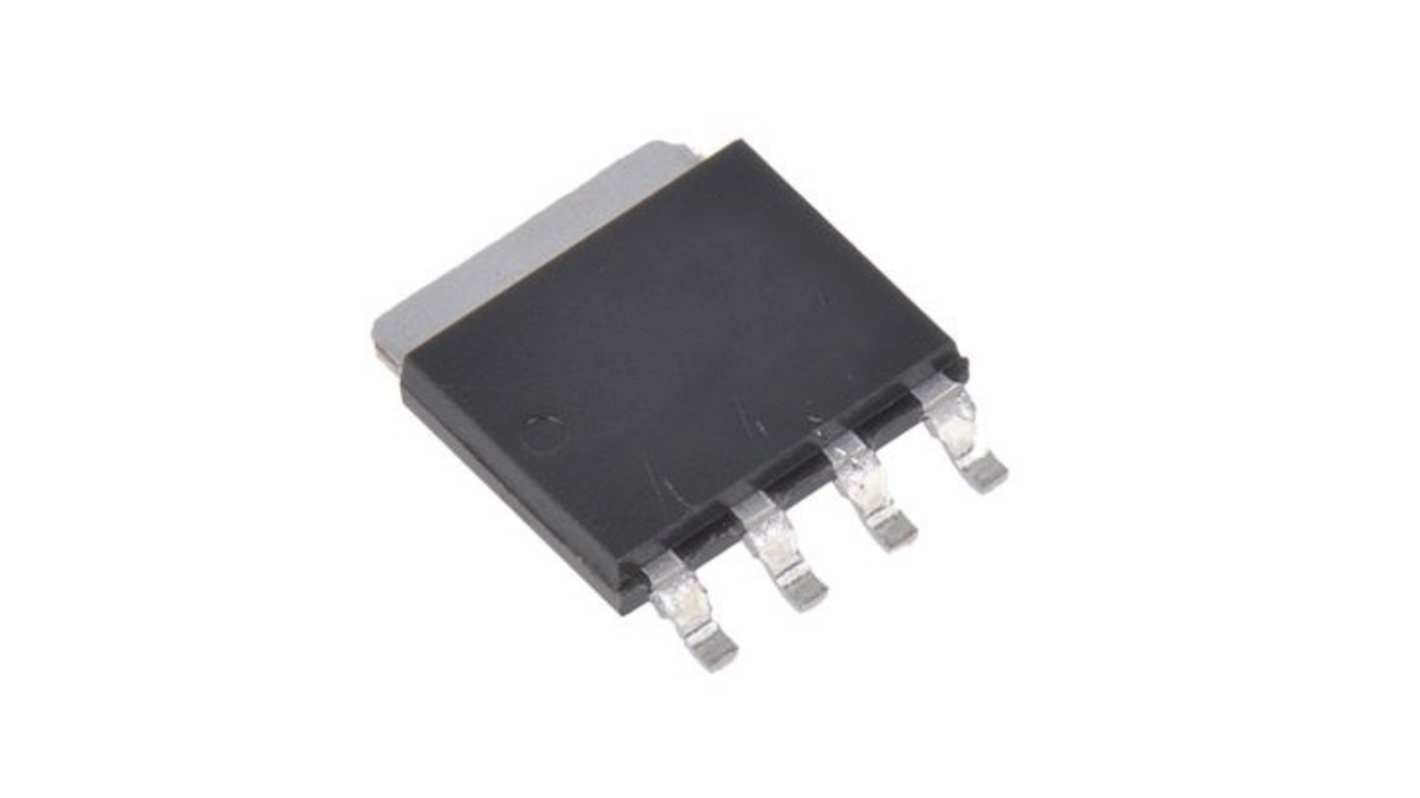

onsemi MJK44H11TWG Bipolar Transistor, 8 A NPN, 80 V dc, 4-Pin LFPAK4 5x6
- RS Stock No.:
- 333-429P
- Mfr. Part No.:
- MJK44H11TWG
- Brand:
- onsemi
Subtotal 10 units (supplied on a continuous strip)*
£7.40
(exc. VAT)
£8.90
(inc. VAT)
FREE delivery for orders over £60.00
Temporarily out of stock
- Shipping from 20 July 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 10 + | £0.74 |
*price indicative
- RS Stock No.:
- 333-429P
- Mfr. Part No.:
- MJK44H11TWG
- Brand:
- onsemi
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | onsemi | |
| Product Type | Bipolar Transistor | |
| Maximum DC Collector Current Idc | 8A | |
| Maximum Collector Emitter Voltage Vceo | 80V dc | |
| Package Type | LFPAK4 5x6 | |
| Mount Type | Surface | |
| Transistor Polarity | NPN | |
| Minimum DC Current Gain hFE | 40 | |
| Maximum Emitter Base Voltage VEBO | 5V | |
| Maximum Transition Frequency ft | 85MHz | |
| Minimum Operating Temperature | -65°C | |
| Maximum Power Dissipation Pd | 2W | |
| Pin Count | 4 | |
| Maximum Operating Temperature | 150°C | |
| Standards/Approvals | Pb-Free, RoHS | |
| Series | MJK44H11 | |
| Automotive Standard | AEC-Q101 | |
| Select all | ||
|---|---|---|
Brand onsemi | ||
Product Type Bipolar Transistor | ||
Maximum DC Collector Current Idc 8A | ||
Maximum Collector Emitter Voltage Vceo 80V dc | ||
Package Type LFPAK4 5x6 | ||
Mount Type Surface | ||
Transistor Polarity NPN | ||
Minimum DC Current Gain hFE 40 | ||
Maximum Emitter Base Voltage VEBO 5V | ||
Maximum Transition Frequency ft 85MHz | ||
Minimum Operating Temperature -65°C | ||
Maximum Power Dissipation Pd 2W | ||
Pin Count 4 | ||
Maximum Operating Temperature 150°C | ||
Standards/Approvals Pb-Free, RoHS | ||
Series MJK44H11 | ||
Automotive Standard AEC-Q101 | ||
- COO (Country of Origin):
- PH
The ON Semiconductor Power Transistor is designed for general purpose power and switching applications such as regulators, converters and power amplifiers. Housed with excellent thermal conduction. Automotive end applications include Air bag deployment, power train control units, and instrument clusters.
LFPAK4 package
AEC Q101 Qualified
Pb free and Halogen Free
RoHS compliant
