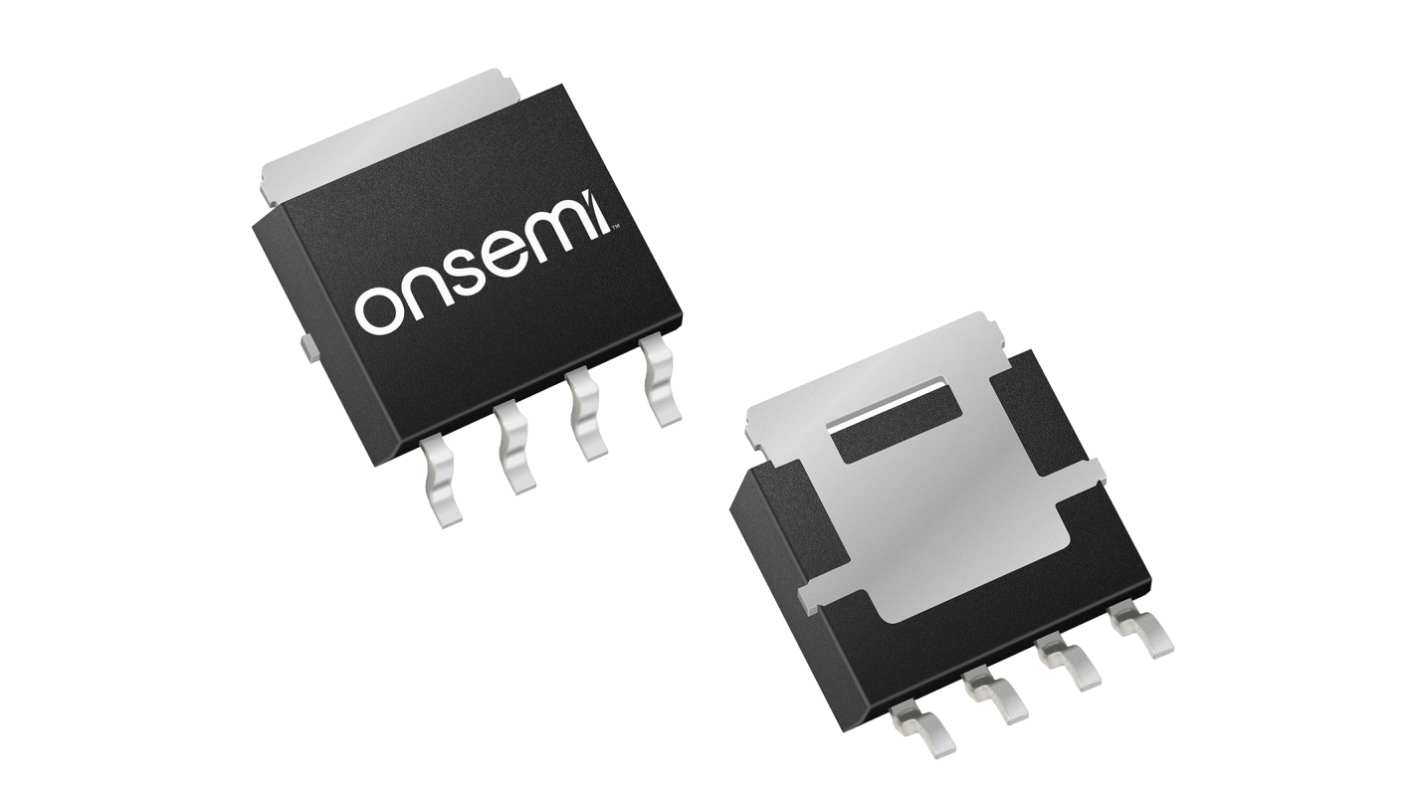

onsemi NSS1C300CTWG Bipolar Transistor, 3 A, 100 V, 4-Pin LFPAK4 5x6

View all Bipolar Transistors

Subtotal (1 tape of 10 units)*

£7.05

(exc. VAT)

£8.46

(inc. VAT)

Add to Basket
Select or type quantity
Temporarily out of stock
  • 3,000 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
Per Tape*
10 +£0.705£7.05

*price indicative

Packaging Options:
RS Stock No.:
327-783
Mfr. Part No.:
NSS1C300CTWG
Brand:
onsemi
Find similar products by selecting one or more attributes.
Select all

Brand

onsemi

Product Type

Bipolar Transistor

Maximum DC Collector Current Idc

3A

Maximum Collector Emitter Voltage Vceo

100V

Package Type

LFPAK4 5x6

Mount Type

Surface

Maximum Collector Base Voltage VCBO

140V

Maximum Power Dissipation Pd

5W

Minimum DC Current Gain hFE

50

Maximum Emitter Base Voltage VEBO

6V

Minimum Operating Temperature

-55°C

Maximum Transition Frequency ft

100MHz

Maximum Operating Temperature

150°C

Pin Count

4

Standards/Approvals

Pb-Free, RoHS

Series

e2PowerEdge

Automotive Standard

AEC-Q101

COO (Country of Origin):
PH
The ON Semiconductor Bipolar power transistors are surface-mount devices with ultra-low saturation voltage (VCE(sat)) and high current gain capability. They are designed for low-voltage, high-speed switching applications, offering efficient energy control in cost-effective solutions.

Complement to NSS1C301CT

These Devices are Pb Free Halogen Free/BFR Free and are RoHS Compliant
