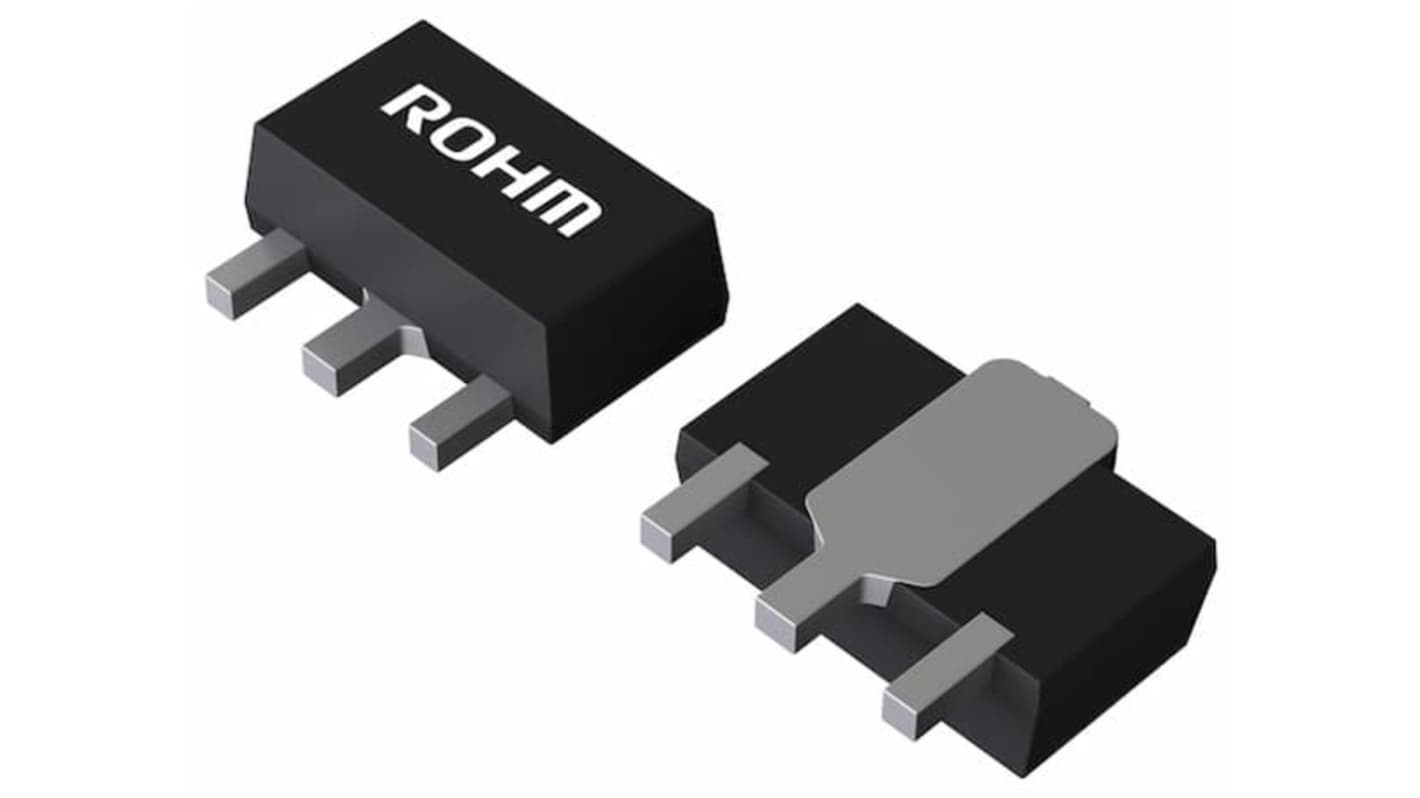

ROHM Transistor, 1.5 A PNP, -120 V, 3-Pin SOT-89
- RS Stock No.:
- 264-266P
- Mfr. Part No.:
- 2SAR375PHZGT100R
- Brand:
- ROHM
Bulk discount available
Subtotal 100 units (supplied on a continuous strip)*
£39.30
(exc. VAT)
£47.20
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 1,000 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 100 - 225 | £0.393 |
| 250 + | £0.364 |
*price indicative
- RS Stock No.:
- 264-266P
- Mfr. Part No.:
- 2SAR375PHZGT100R
- Brand:
- ROHM
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | ROHM | |
| Product Type | Transistor | |
| Maximum DC Collector Current Idc | 1.5A | |
| Maximum Collector Emitter Voltage Vceo | -120V | |
| Package Type | SOT-89 | |
| Mount Type | Surface | |
| Maximum Collector Base Voltage VCBO | 120V | |
| Maximum Emitter Base Voltage VEBO | 6V | |
| Minimum DC Current Gain hFE | 120 | |
| Transistor Polarity | PNP | |
| Maximum Power Dissipation Pd | 2W | |
| Minimum Operating Temperature | -55°C | |
| Maximum Transition Frequency ft | 280MHz | |
| Maximum Operating Temperature | 150°C | |
| Pin Count | 3 | |
| Standards/Approvals | AEC-Q101 | |
| Series | MPT3 | |
| Automotive Standard | AEC-Q101 | |
| Select all | ||
|---|---|---|
Brand ROHM | ||
Product Type Transistor | ||
Maximum DC Collector Current Idc 1.5A | ||
Maximum Collector Emitter Voltage Vceo -120V | ||
Package Type SOT-89 | ||
Mount Type Surface | ||
Maximum Collector Base Voltage VCBO 120V | ||
Maximum Emitter Base Voltage VEBO 6V | ||
Minimum DC Current Gain hFE 120 | ||
Transistor Polarity PNP | ||
Maximum Power Dissipation Pd 2W | ||
Minimum Operating Temperature -55°C | ||
Maximum Transition Frequency ft 280MHz | ||
Maximum Operating Temperature 150°C | ||
Pin Count 3 | ||
Standards/Approvals AEC-Q101 | ||
Series MPT3 | ||
Automotive Standard AEC-Q101 | ||
The ROHM Middle power transistor with Low VCE(sat) suitable for low frequency amplifier. It is a highly reliable product for automotive.
RoHS compliant
AEC Q101 qualified
Suitable for middle power driver
