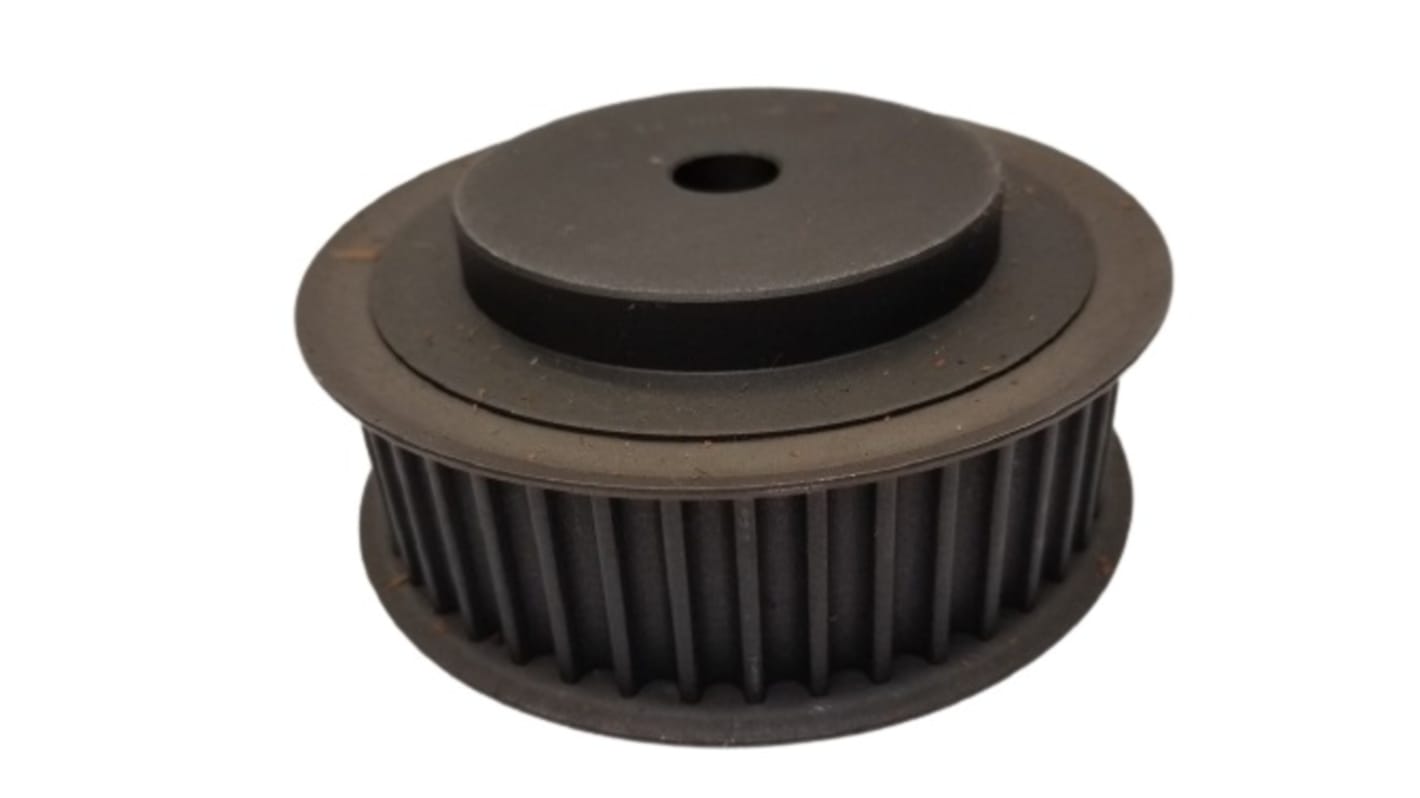

OPTIBELT Timing Belt Pulley Aluminium 9 mm 3 mm Pitch, 44 Tooth
- RS Stock No.:
- 236-5708
- Mfr. Part No.:
- 443M9
- Brand:
- OPTIBELT
Subtotal (1 unit)*
£7.38
(exc. VAT)
£8.86
(inc. VAT)
FREE delivery for orders over £60.00
Temporarily out of stock
- 28 unit(s) shipping from 18 May 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £7.38 |
*price indicative
- RS Stock No.:
- 236-5708
- Mfr. Part No.:
- 443M9
- Brand:
- OPTIBELT
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | OPTIBELT | |
| Product Type | Timing Belt Pulley | |
| Number of Teeth | 44 | |
| Pitch | 3mm | |
| Pitch Circle Diameter | 42.02mm | |
| Flange Diameter | 48mm | |
| Bore Size | 20 mm | |
| Material | Aluminium | |
| Flanged | Yes | |
| Acceptable Belt Width | 9mm | |
| Outside Diameter | 41.26 mm | |
| Bore Type | Pilot Bore | |
| Standards/Approvals | No | |
| Select all | ||
|---|---|---|
Brand OPTIBELT | ||
Product Type Timing Belt Pulley | ||
Number of Teeth 44 | ||
Pitch 3mm | ||
Pitch Circle Diameter 42.02mm | ||
Flange Diameter 48mm | ||
Bore Size 20 mm | ||
Material Aluminium | ||
Flanged Yes | ||
Acceptable Belt Width 9mm | ||
Outside Diameter 41.26 mm | ||
Bore Type Pilot Bore | ||
Standards/Approvals No | ||
The OPTIBELT ZRS HTD pulleys for plain boring metric profile 3M has belt width of 9 mm and 44 number of teeth. It has finished bore hole of max 20 mm.
Designed to be used with HTD belts
Maximum bore diameter of 20 mm
Manufactured from high strength material
