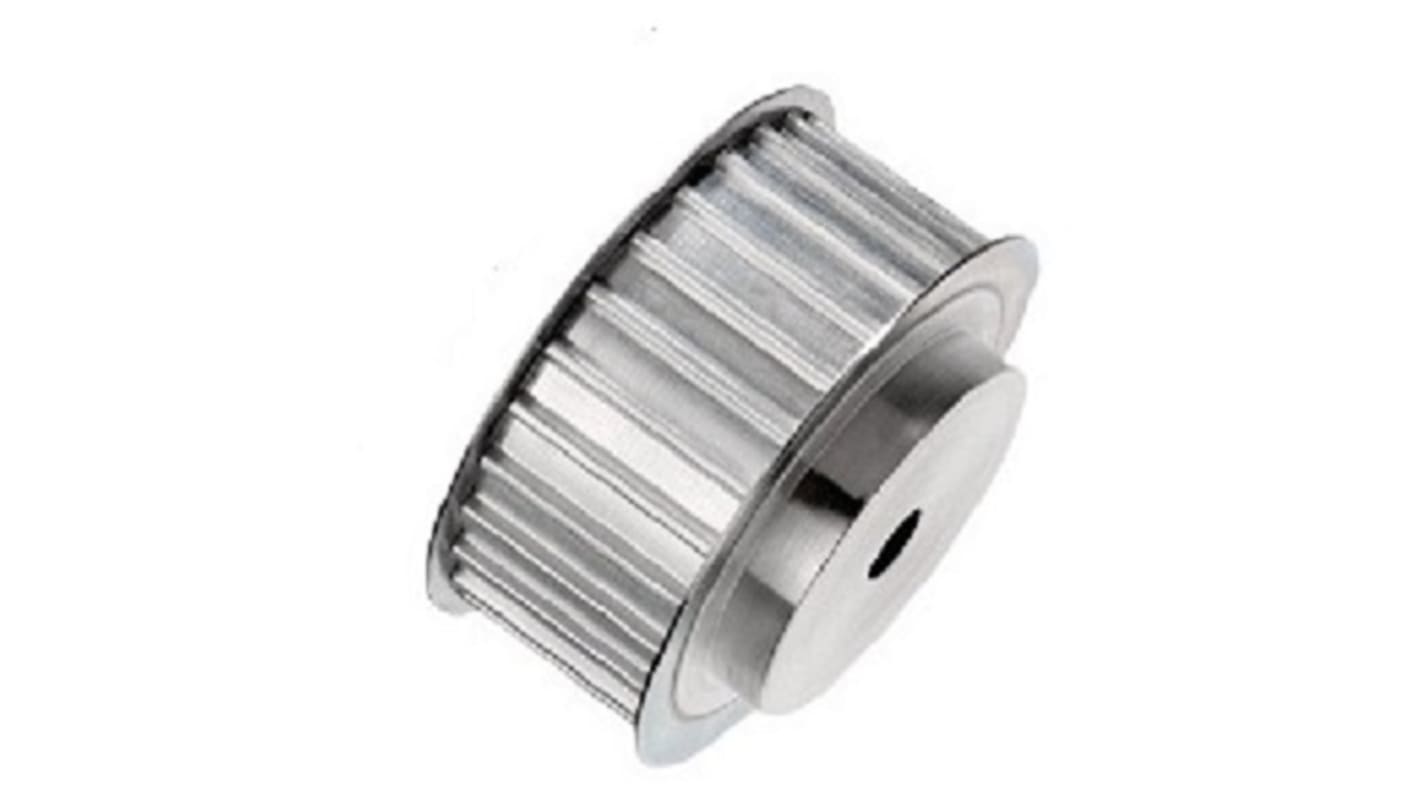

OPTIBELT Timing Belt Pulley Aluminium 50 mm 10 mm Pitch, 44 Tooth
- RS Stock No.:
- 236-5704
- Mfr. Part No.:
- 44-066AT10
- Brand:
- OPTIBELT
Subtotal (1 unit)*
£116.62
(exc. VAT)
£139.94
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 01 April 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £116.62 |
*price indicative
- RS Stock No.:
- 236-5704
- Mfr. Part No.:
- 44-066AT10
- Brand:
- OPTIBELT
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | OPTIBELT | |
| Number of Teeth | 44 | |
| Product Type | Timing Belt Pulley | |
| Pitch | 10mm | |
| Pitch Circle Diameter | 140.06mm | |
| Bore Size | 46 mm | |
| Material | Aluminium | |
| Acceptable Belt Width | 50mm | |
| Outside Diameter | 138.2 mm | |
| Standards/Approvals | No | |
| Bore Type | Pilot Bore | |
| Select all | ||
|---|---|---|
Brand OPTIBELT | ||
Number of Teeth 44 | ||
Product Type Timing Belt Pulley | ||
Pitch 10mm | ||
Pitch Circle Diameter 140.06mm | ||
Bore Size 46 mm | ||
Material Aluminium | ||
Acceptable Belt Width 50mm | ||
Outside Diameter 138.2 mm | ||
Standards/Approvals No | ||
Bore Type Pilot Bore | ||
The OPTIBELT ZRS HTD pulleys for plain boring metric profile AT10 has belt width of 50 mm and 44 number of teeth. It has finished bore hole of max 46 mm.
Designed to be used with HTD belts
Maximum bore diameter of 46 mm
Manufactured from high strength material
