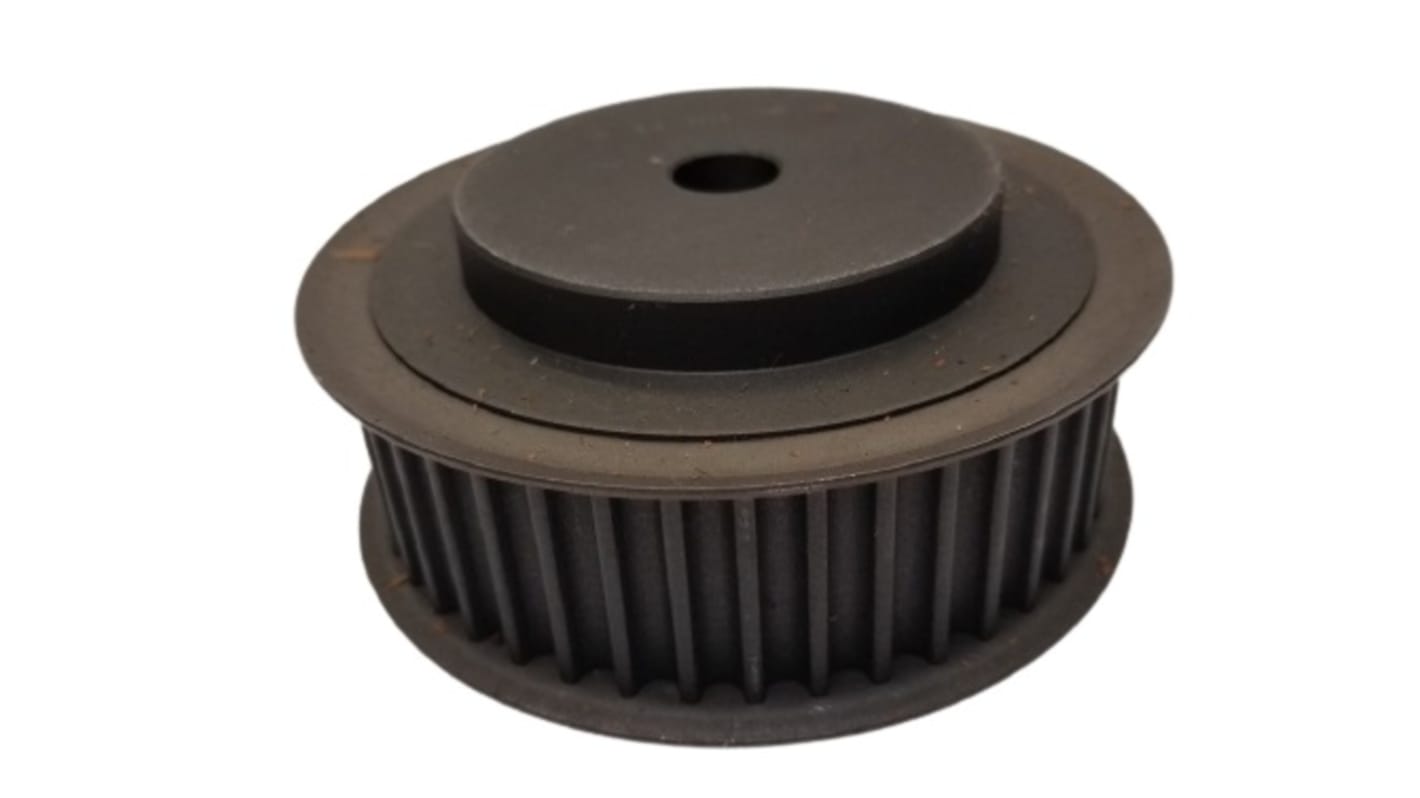

OPTIBELT Timing Belt Pulley Steel 55 mm 14 mm Pitch, 32 Tooth
- RS Stock No.:
- 236-5617
- Mfr. Part No.:
- 3214M55
- Brand:
- OPTIBELT
Subtotal (1 unit)*
£118.31
(exc. VAT)
£141.97
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 15 June 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £118.31 |
*price indicative
- RS Stock No.:
- 236-5617
- Mfr. Part No.:
- 3214M55
- Brand:
- OPTIBELT
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | OPTIBELT | |
| Number of Teeth | 32 | |
| Product Type | Timing Belt Pulley | |
| Pitch | 14mm | |
| Pitch Circle Diameter | 142.6mm | |
| Bore Size | 70 mm | |
| Flange Diameter | 154mm | |
| Material | Steel | |
| Flanged | Yes | |
| Acceptable Belt Width | 55mm | |
| Outside Diameter | 139.88 mm | |
| Standards/Approvals | No | |
| Bore Type | Pilot Bore | |
| Select all | ||
|---|---|---|
Brand OPTIBELT | ||
Number of Teeth 32 | ||
Product Type Timing Belt Pulley | ||
Pitch 14mm | ||
Pitch Circle Diameter 142.6mm | ||
Bore Size 70 mm | ||
Flange Diameter 154mm | ||
Material Steel | ||
Flanged Yes | ||
Acceptable Belt Width 55mm | ||
Outside Diameter 139.88 mm | ||
Standards/Approvals No | ||
Bore Type Pilot Bore | ||
The OPTIBELT ZRS HTD pulleys for plain boring metric profile 14M has belt width of 55 mm and 32 number of teeth. It has finished bore hole of max 70 mm.
Designed to be used with HTD belts
Maximum bore diameter of 70 mm
Manufactured from high strength material
