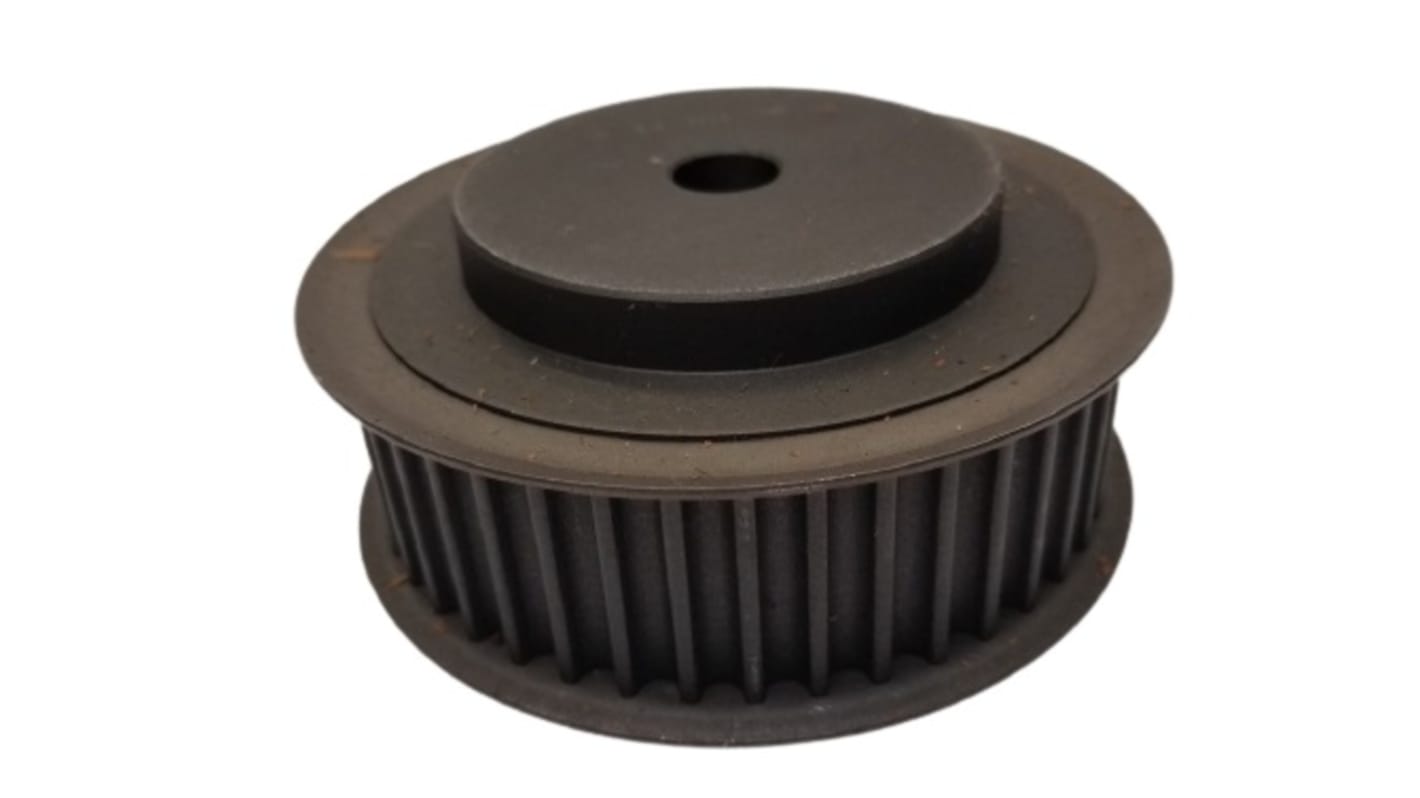

OPTIBELT Timing Belt Pulley Steel 12.5 mm Pitch, 32 Tooth
- RS Stock No.:
- 236-5638
- Mfr. Part No.:
- 32H075
- Brand:
- OPTIBELT
Subtotal (1 unit)*
£44.37
(exc. VAT)
£53.24
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 12 June 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £44.37 |
*price indicative
- RS Stock No.:
- 236-5638
- Mfr. Part No.:
- 32H075
- Brand:
- OPTIBELT
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | OPTIBELT | |
| Number of Teeth | 32 | |
| Product Type | Timing Belt Pulley | |
| Pitch | 12.5mm | |
| Pitch Circle Diameter | 129.36mm | |
| Bore Size | 45 mm | |
| Flange Diameter | 135mm | |
| Material | Steel | |
| Flanged | Yes | |
| Outside Diameter | 127.99 mm | |
| Bore Type | Pilot Bore | |
| Standards/Approvals | RoHS | |
| Select all | ||
|---|---|---|
Brand OPTIBELT | ||
Number of Teeth 32 | ||
Product Type Timing Belt Pulley | ||
Pitch 12.5mm | ||
Pitch Circle Diameter 129.36mm | ||
Bore Size 45 mm | ||
Flange Diameter 135mm | ||
Material Steel | ||
Flanged Yes | ||
Outside Diameter 127.99 mm | ||
Bore Type Pilot Bore | ||
Standards/Approvals RoHS | ||
- COO (Country of Origin):
- CZ
The OPTIBELT ZRS timing belt pulleys for plain boring imperial profile H (12.7 mm) has belt width of 75 mm and 32 number of teeth. It has finished bore of max 45 mm.
Maximum bore diameter of 45 mm
Manufactured from high strength material
