Subtotal (1 unit)*
£111.52
(exc. VAT)
£133.82
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- 999,999,999 unit(s) shipping from 10 November 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £111.52 |
*price indicative
- RS Stock No.:
- 312-547
- Mfr. Part No.:
- PCJ55-XL
- Brand:
- INA
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | INA | |
| Inside Diameter | 55mm | |
| Bearing Unit Type | Flange Bearing Unit | |
| Number of Mount Holes | 4 | |
| Material | Cast Iron | |
Select all | ||
|---|---|---|
Brand INA | ||
Inside Diameter 55mm | ||
Bearing Unit Type Flange Bearing Unit | ||
Number of Mount Holes 4 | ||
Material Cast Iron | ||
RoHS Status: Exempt
- COO (Country of Origin):
- VN

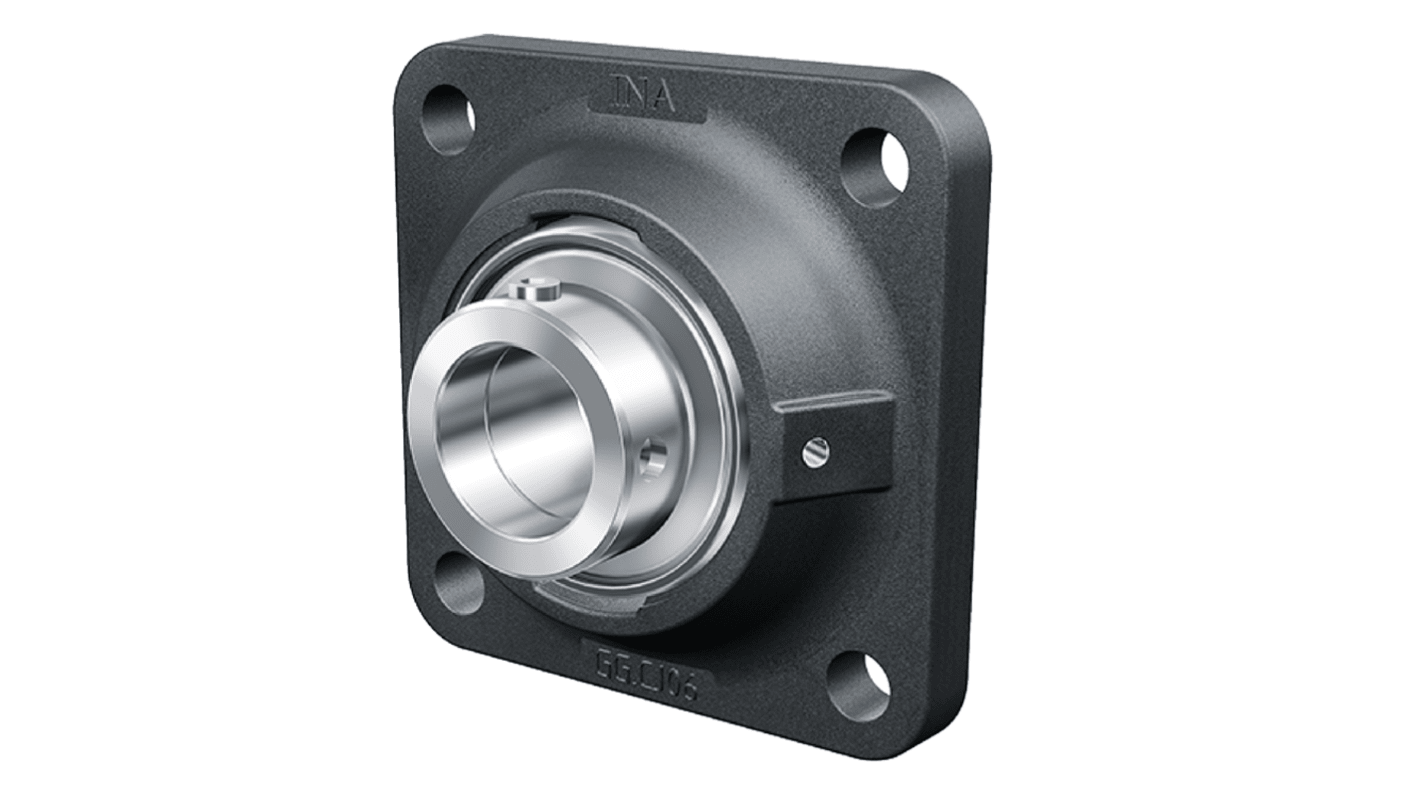

The INA Housing units are four bolt flanged housing units made of cast iron, featuring a 55 mm bore diameter. With a flange width of 162 mm and a total height of 67.4 mm, these units are built to handle heavy duty applications. They offer a basic dynamic load rating of 46.000 N, a basic static load rating of 29.000 N, and a fatigue load limit of 1.340 N.
Eccentric locking collar
P seals for enhanced protection
P seals for enhanced protection
