4 Hole Flange Bearing Unit, FY 55 TF, 55mm ID
- RS Stock No.:
- 195-9606
- Mfr. Part No.:
- FY 55 TF
- Brand:
- SKF
Bulk discount available
Subtotal (1 unit)*
£109.95
(exc. VAT)
£131.94
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 9 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 4 | £109.95 |
| 5 - 9 | £105.54 |
| 10 - 24 | £103.35 |
| 25 + | £101.17 |
*price indicative
- RS Stock No.:
- 195-9606
- Mfr. Part No.:
- FY 55 TF
- Brand:
- SKF
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | SKF | |
| Inside Diameter | 55mm | |
| Bearing Unit Type | Flange Bearing Unit | |
| Number of Mount Holes | 4 | |
| Material | Cast Iron | |
| Length | 162mm | |
| Width | 64.4mm | |
| Depth | 162mm | |
| Mount Hole Size | 18 mm | |
| Mount Hole Centre-to-Centre | 130mm | |
Select all | ||
|---|---|---|
Brand SKF | ||
Inside Diameter 55mm | ||
Bearing Unit Type Flange Bearing Unit | ||
Number of Mount Holes 4 | ||
Material Cast Iron | ||
Length 162mm | ||
Width 64.4mm | ||
Depth 162mm | ||
Mount Hole Size 18 mm | ||
Mount Hole Centre-to-Centre 130mm | ||
RoHS Status: Exempt

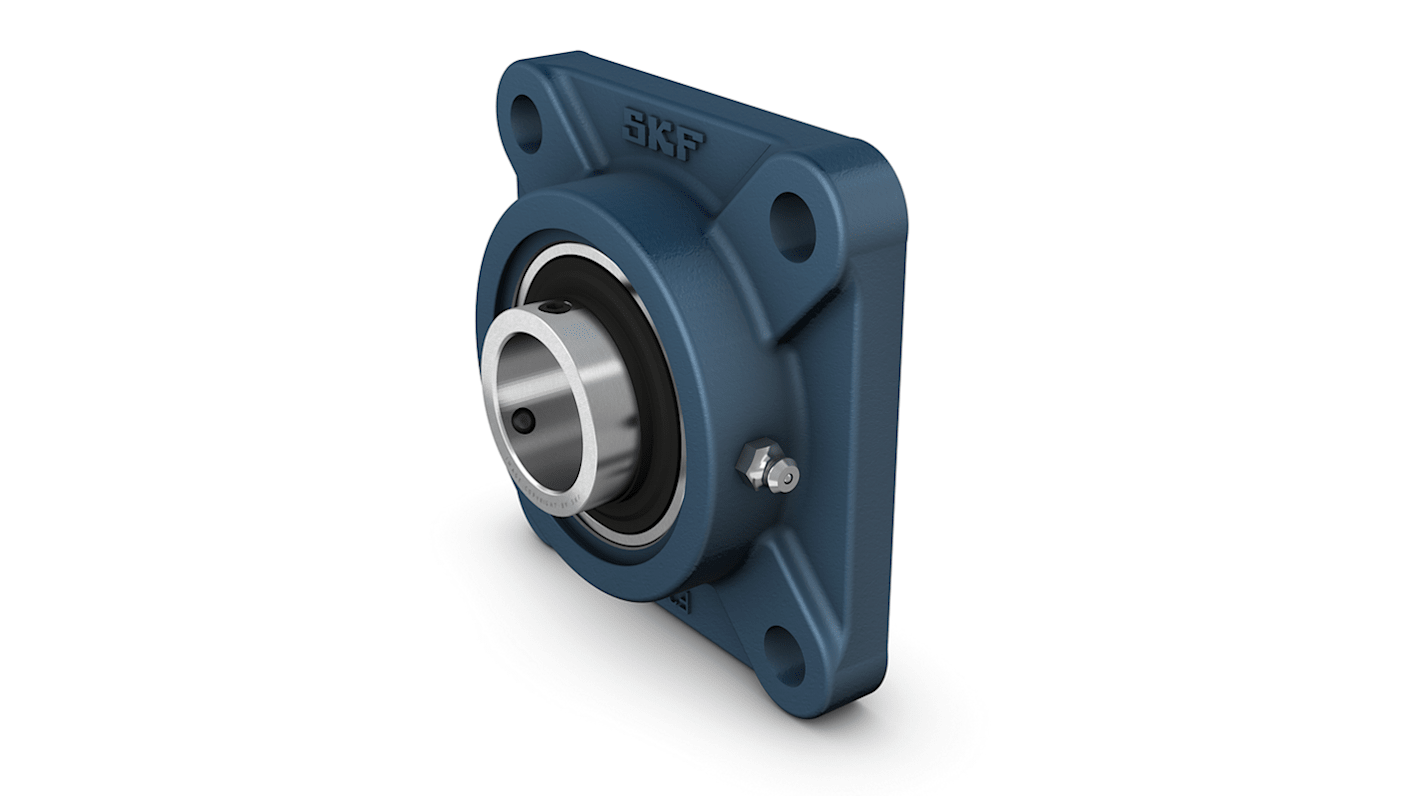

SKF Cast-Iron Flange Bearing Unit, 55mm ID, 4 Mounting Holes - FY 55 TF
This flange bearing unit from SKF is used to support rotating shafts in everything from wheels and gears to turbines and rotors. It's simple to bolt to a machine wall or frame thanks to its four mounting holes. As the flange provides a thrust surface, it can accommodate both radial and axial loads for greater versatility. Cast-iron construction makes the unit robust with a high resistance to impact and corrosion, meaning it offers a long lifespan when used in harsh industrial environments.
• Accommodates static initial misalignment for improved ease of use
• Equipped with a grease fitting for simple re-lubrication
• Limiting speed of 3600rpm (rotations per minute) for use in high-speed applications
• Compact dimensions of 162 (length) x 64.4 (width) x 162mm (depth) for use in areas where space is limited
• Equipped with a grease fitting for simple re-lubrication
• Limiting speed of 3600rpm (rotations per minute) for use in high-speed applications
• Compact dimensions of 162 (length) x 64.4 (width) x 162mm (depth) for use in areas where space is limited
Applications
• Textile industry
• Food processing equipment
• Heating, ventilation and air conditioning (HVAC) equipment
• Food processing equipment
• Heating, ventilation and air conditioning (HVAC) equipment
Can this bearing unit handle heavy loads?
This flange bearing unit has a dynamic load rating of 43.6kN and a static load rating of 29kN, making it suitable for handling heavy-duty loads.
