INA 4 Hole Distance Fixing Bore, RME65-214-XL 65 mm ID
- RS Stock No.:
- 312-427
- Mfr. Part No.:
- RME65-214-XL
- Brand:
- INA
Subtotal (1 unit)*
£300.43
(exc. VAT)
£360.52
(inc. VAT)
Stock information currently inaccessible - Please check back later
Units | Per unit |
|---|---|
| 1 + | £300.43 |
*price indicative
- RS Stock No.:
- 312-427
- Mfr. Part No.:
- RME65-214-XL
- Brand:
- INA
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | INA | |
| Product Type | Flange Bearing Unit | |
| Inside Diameter | 65mm | |
| Number of Mount Holes | 4 | |
| Locking Type | Eccentric Locking Collar | |
| Material | Cast Iron | |
| Width | 66mm | |
| Depth | 44.5mm | |
| Mount Hole Size | 18 mm | |
| Standards/Approvals | No | |
| Series | RME | |
| Bore Type | Distance Fixing Bore | |
| Static Load Rating | 44000N | |
| Dynamic Load Rating | 66000N | |
| Select all | ||
|---|---|---|
Brand INA | ||
Product Type Flange Bearing Unit | ||
Inside Diameter 65mm | ||
Number of Mount Holes 4 | ||
Locking Type Eccentric Locking Collar | ||
Material Cast Iron | ||
Width 66mm | ||
Depth 44.5mm | ||
Mount Hole Size 18 mm | ||
Standards/Approvals No | ||
Series RME | ||
Bore Type Distance Fixing Bore | ||
Static Load Rating 44000N | ||
Dynamic Load Rating 66000N | ||
RoHS Status: Exempt

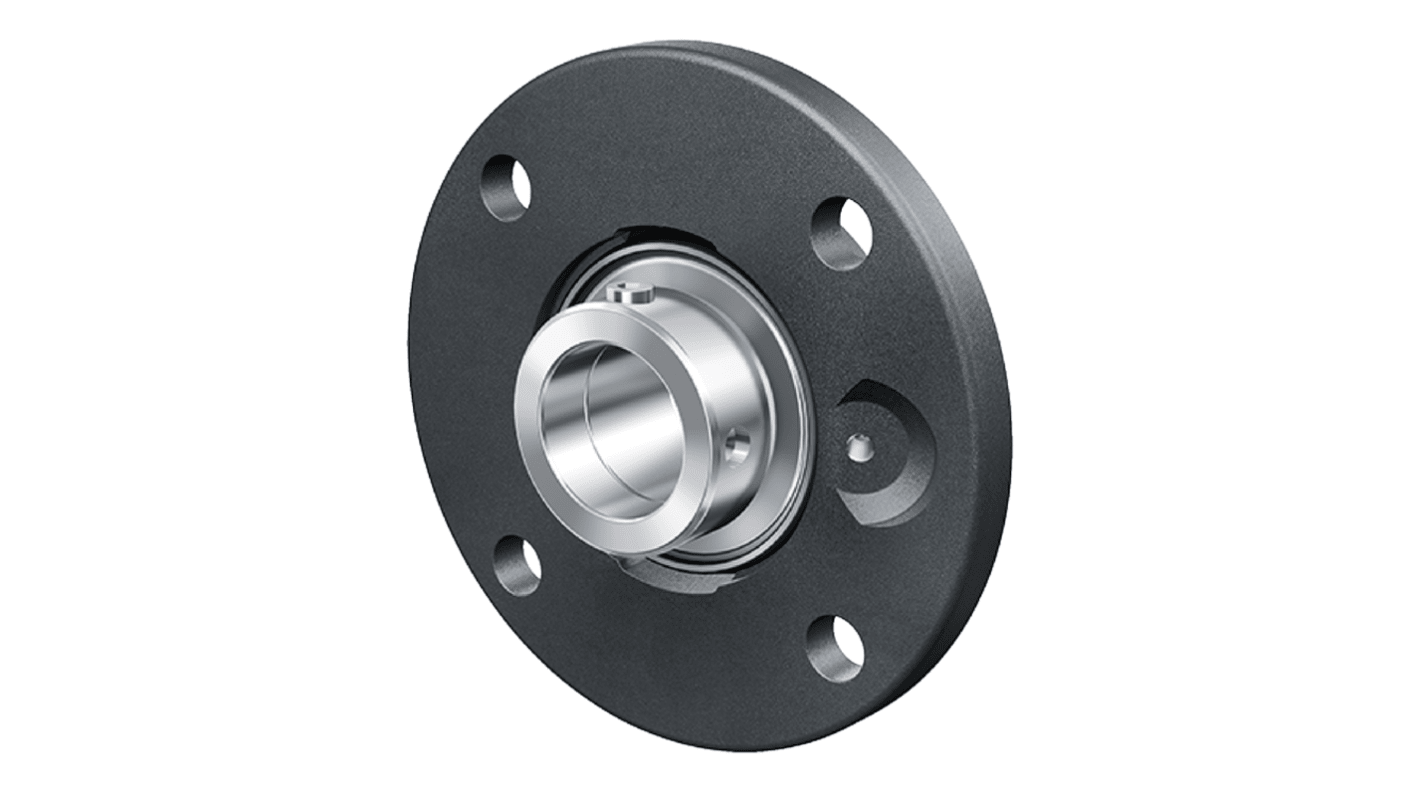

The INA RME housing units are four bolt flanged housing units constructed from robust cast iron, designed for durability and strength. These units feature a centring spigot, which aids in precise alignment during installation, ensuring proper positioning of the bearing.
Eccentric locking collar
R seals for enhanced protection
