NSK-RHP Bearing Inserts 50mm ID 62.4mm OD T1050-50G
- RS Stock No.:
- 785-5040
- Mfr. Part No.:
- T1050-50G
- Brand:
- NSK-RHP
Available to back order for despatch 20/06/2024
Added
Price Each
£49.71
(exc. VAT)
£59.65
(inc. VAT)
| Units | Per unit |
| 1 - 4 | £49.71 |
| 5 - 9 | £47.72 |
| 10 - 24 | £46.72 |
| 25 + | £45.73 |
- RS Stock No.:
- 785-5040
- Mfr. Part No.:
- T1050-50G
- Brand:
- NSK-RHP
Technical Reference
Legislation and Compliance
RoHS Status: Not Applicable
- COO (Country of Origin):
- GB
Product Details

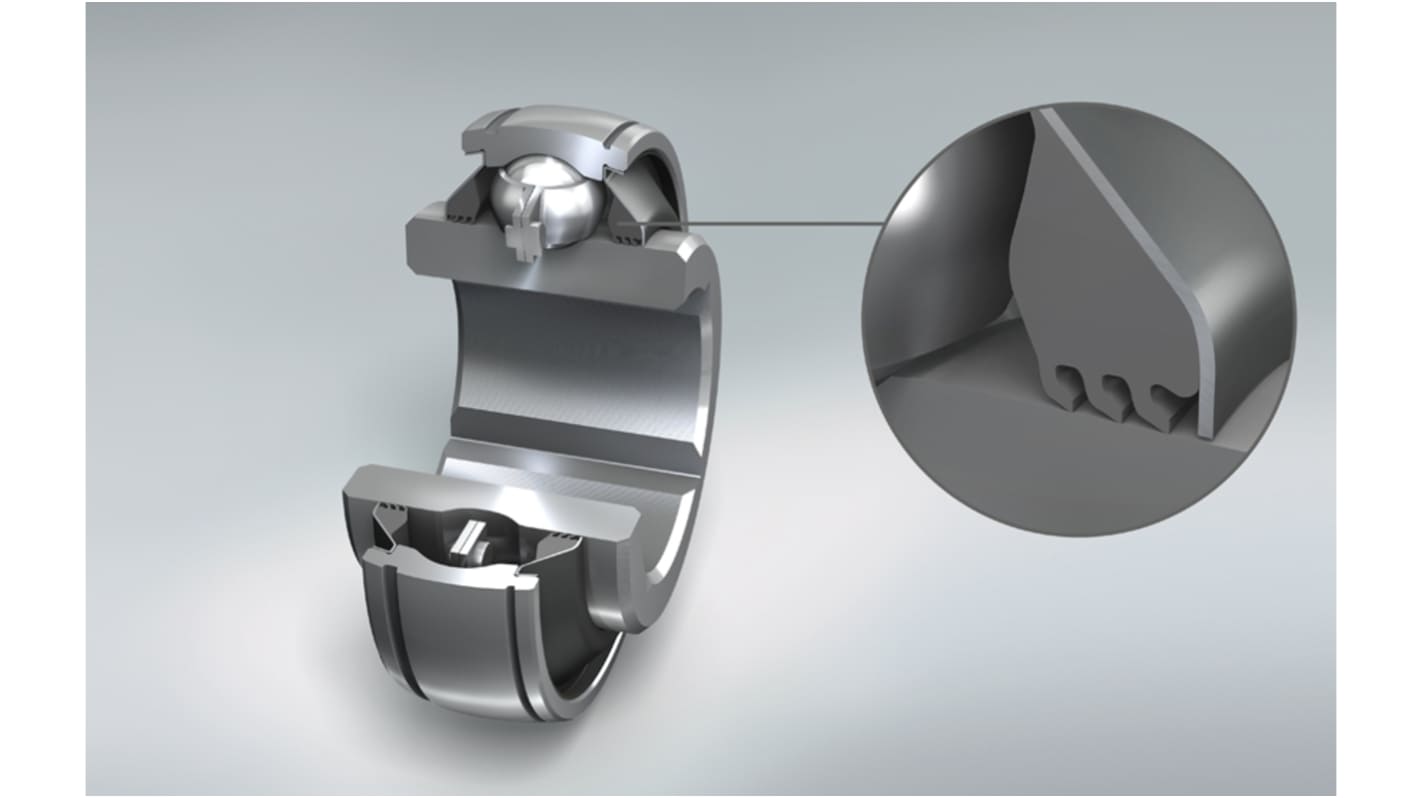

Self-Lube Bearing Inserts
For use with self-lube sealed bearing units or with user's own housings. Bearings are secured onto the shaft with a set-screw lock. When the axial load exceeds the limiting value, a shoulder should be provided on the shaft for the bearing inner ring to abut against so that the axial load is not transmitted through the set screws
Specifications
Attribute | Value |
|---|---|
| Inside Diameter | 50mm |
| Outside Diameter | 62.4mm |
| Static Load Rating | 23200N |
| Dynamic Load Rating | 35000N |
