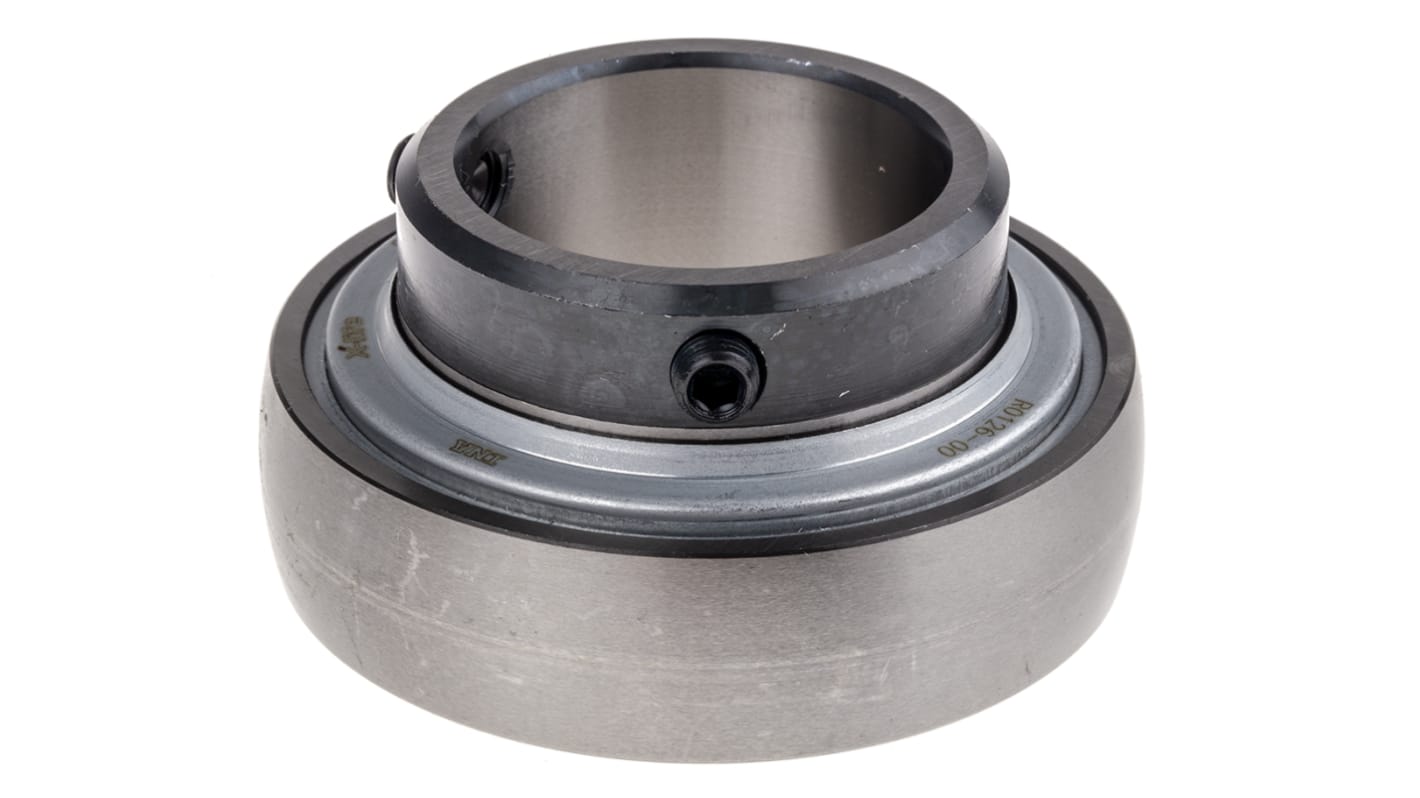

INA Bearing Unit Insert 45mm ID 85mm OD GYE45-XL-KRR-B
- RS Stock No.:
- 174-1066
- Mfr. Part No.:
- GYE45-XL-KRR-B
- Brand:
- INA
Subtotal (1 unit)*
£44.49
(exc. VAT)
£53.39
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 08 December 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £44.49 |
*price indicative
- RS Stock No.:
- 174-1066
- Mfr. Part No.:
- GYE45-XL-KRR-B
- Brand:
- INA
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | INA | |
| Inside Diameter | 45mm | |
| Outside Diameter | 85mm | |
| Static Load Rating | 20400N | |
| Dynamic Load Rating | 34500N | |
Select all | ||
|---|---|---|
Brand INA | ||
Inside Diameter 45mm | ||
Outside Diameter 85mm | ||
Static Load Rating 20400N | ||
Dynamic Load Rating 34500N | ||
Radial insert ball bearings are single row, ready-to-fit units comprising a solid outer ring, an inner ring extended on one or both sides, cages made from plastic or sheet steel and seals of type P, R, L or T. Bearings with an inner ring extended on both sides undergo less tilting of the inner ring and therefore run more smoothly. The outer ring has a spherical or cylindrical outside surface. In combination with an INA housing matched to the design, bearings with a spherical outer ring can compensate for misalignment of the shaft.
Radial insert ball bearings with eccentric locking collar
Sealing
Lubrication
Anti-corrosion protection
Sealing
Lubrication
Anti-corrosion protection
