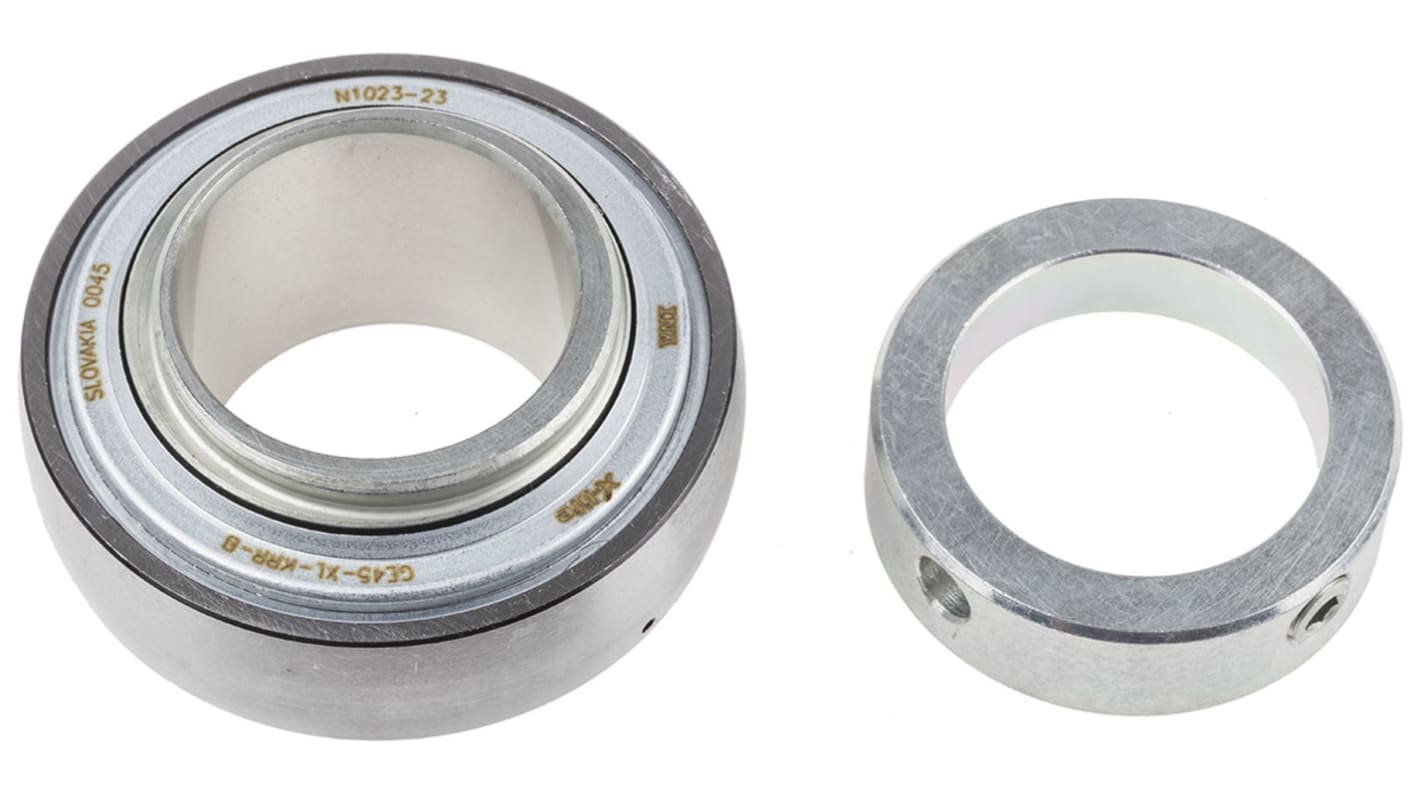

INA Bearing Unit Insert 45 mm ID 85 mm OD GE45-XL-KRR-B

View all Bearing Inserts

Subtotal (1 unit)*

£62.86

(exc. VAT)

£75.43

(inc. VAT)

Add to Basket
Select or type quantity
Temporarily out of stock
  • Shipping from 09 March 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 +£62.86

*price indicative

RS Stock No.:
174-1060
Mfr. Part No.:
GE45-XL-KRR-B
Brand:
INA
Find similar products by selecting one or more attributes.
Select all

Brand

INA

Inside Diameter

45 mm

Product Type

Bearing Unit Insert

Outside Diameter

85 mm

Static Load Rating

20.4kN

Dynamic Load Rating

34.5kN

Series

GE

Bore Type

Round

Overall Width

56.5mm

Standards/Approvals

No

Radial insert ball bearings are single row, ready-to-fit units comprising a solid outer ring, an inner ring extended on one or both sides, cages made from plastic or sheet steel and seals of type P, R, L or T. Bearings with an inner ring extended on both sides undergo less tilting of the inner ring and therefore run more smoothly. The outer ring has a spherical or cylindrical outside surface. In combination with an INA housing matched to the design, bearings with a spherical outer ring can compensate for misalignment of the shaft.

Radial insert ball bearings with eccentric locking collar

Sealing

Lubrication

Anti-corrosion protection
