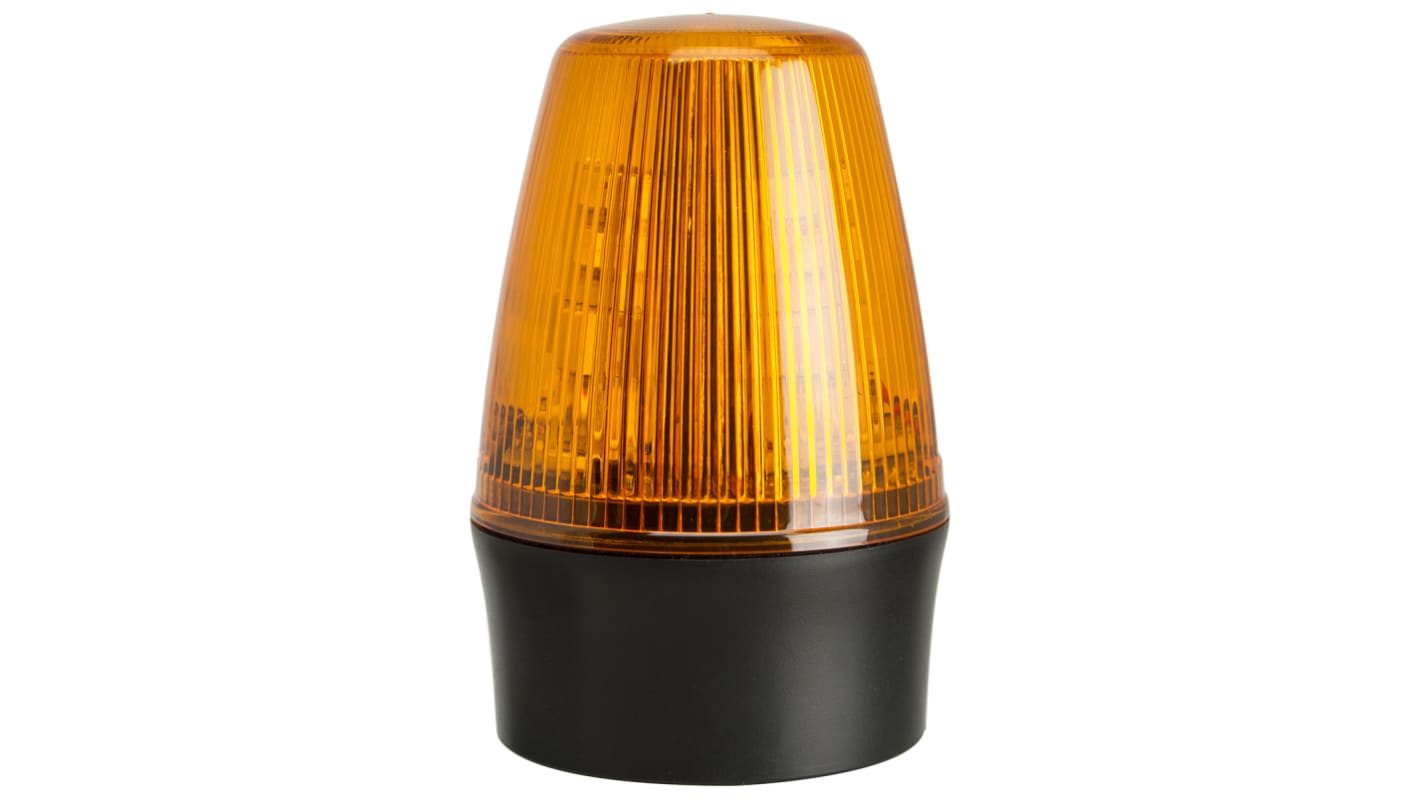

Moflash LEDS100 Series Amber Flashing Beacon, 20 → 30 V ac/dc, Surface Mount, LED Bulb, IP65

View all Beacons

Subtotal (1 unit)*

£48.20

(exc. VAT)

£57.84

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 11 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 +£48.20

*price indicative

RS Stock No.:
865-1697
Mfr. Part No.:
LEDS100-02-01
Brand:
Moflash
Find similar products by selecting one or more attributes.
Select all

Brand

Moflash

Supply Voltage

20 → 30 V ac/dc

Light Effect

Flashing

Lens Colour

Amber

Mounting Style

Surface Mount

Bulb Type

LED

Current Type

AC, DC

Current Consumption

110mA

Base Diameter

72mm

Housing Colour

Black

Lamp Included

Yes

Series

LEDS100

Multifunction

Yes

Height

107mm

Base Length

33mm

IP Rating

IP65

Minimum Temperature

-25°C

Maximum Temperature

+55°C

Standards Met

CE Certified

Special Features

Dust Proof, Low Current Consumption, Water Resistant

COO (Country of Origin):
GB

Moflash Industrial ECO LED Beacon - LEDS100 Series


The LEDS100 economy series are suitable for light commercial & industrial signalling applications where local indication is required. These beacons have two selectable stages of alarm, flashing or continuous (static) mode, selectable by a jumper link on the PCB. The design also allows for a third wire connection giving flexibility to switch from a pre-set static mode to flashing.
The ECO LEDS beacons have been designed predominantly to offer a cost effective solution against more traditional incandescent types of lamps, whether through new plant and machinery installations or existing facility upgrades.
This design allows for termination inside the enclosure through the base of the beacon, either from directly below or using a 6mm cabling channel at 90° to the base for surface cabling. The LEDS incorporates two mounting studs 2 x 5mm on 45mm centres.

Dual function, flashing or continuous (static) mode
Continuously rated
LED long life
Low current consumption
Suitable for surface, conduit box or wall mounting
2 stud fixing
360° light output around the vertical axis
Dustproof and weatherproof
UV stable polycarbonate lens
UV stable ABS plastic base
160 flashes per minute (FPM)
IP65 protection
RoHS compliant
CE Marked

Moflash Amber LED Beacon, 20 to 30V AC/DC, Multiple Light Effects - LEDS100 Series - LEDS100-02-01


Use this LED (light-emitting diode) beacon from Moflash to warn people in your workplace of a hazard. Its LED light has an amber-coloured lens that's used to indicate a change in the environment that requires immediate attention. The beacon has a 360° beam around the vertical axis that spreads in all directions, ensuring visibility throughout the surrounding area. Its low current consumption of 110mA makes it an energy-efficient choice.

Features & Benefits


• IP65 (ingress protection) rating ensures protection against dust and low-pressure water sprays
• Wide operating temperature range of -25°C to +55°C for use in demanding environments
• Can be surface-mounted or wall-mounted for versatile use
• Choice between flashing or continuous light effect via a jumper link on the PCB (printed circuit board) for flexibility

Applications


• Testing laboratories
• Chemical plants
• Emergency services
• Security alarms

Is this beacon suitable for outdoor use?


Yes, this beacon is constructed with an ultraviolet (UV) stable polycarbonate lens and an ABS (acrylonitrile butadiene styrene) plastic base, so it won't degrade or fade when exposed to sunlight. This makes it a good choice for outdoor use.
