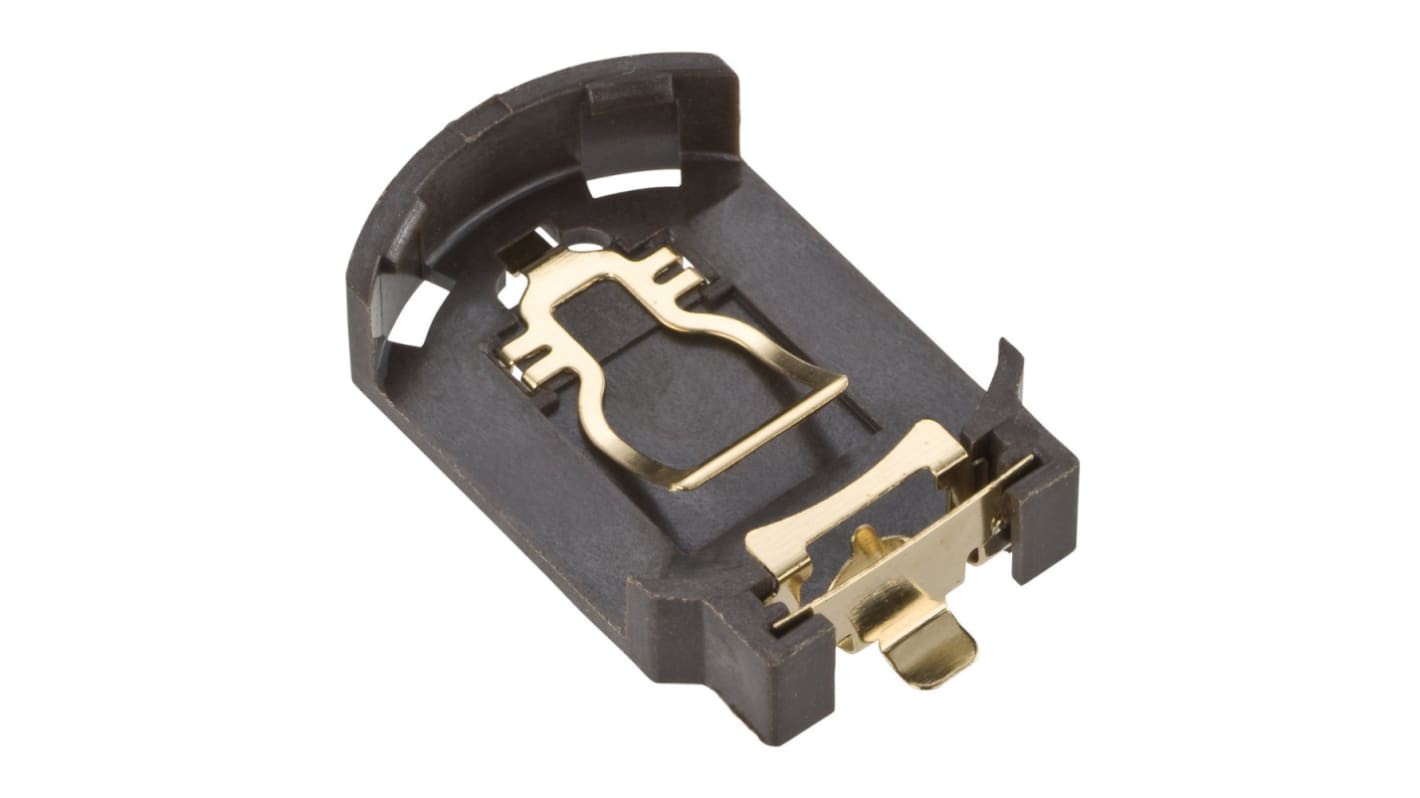

HARWIN CR2032 Battery Holder, Leaf Spring Contact
- RS Stock No.:
- 247-9230
- Mfr. Part No.:
- S8421-45R
- Brand:
- HARWIN
Subtotal (1 reel of 500 units)*
£431.00
(exc. VAT)
£517.00
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 500 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Reel* |
|---|---|---|
| 500 + | £0.862 | £431.00 |
*price indicative
- RS Stock No.:
- 247-9230
- Mfr. Part No.:
- S8421-45R
- Brand:
- HARWIN
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | HARWIN | |
| For Battery Size | CR2032 | |
| Number of Cells | 1 | |
| Mount | Surface Mount | |
| Type | Battery Holder | |
| Maximum Cell Diameter | 20mm | |
| Dimensions | 24.75 x 15.60 x 5.30mm | |
| Terminal Contact Type | Leaf Spring | |
| Body Material | PPS | |
Select all | ||
|---|---|---|
Brand HARWIN | ||
For Battery Size CR2032 | ||
Number of Cells 1 | ||
Mount Surface Mount | ||
Type Battery Holder | ||
Maximum Cell Diameter 20mm | ||
Dimensions 24.75 x 15.60 x 5.30mm | ||
Terminal Contact Type Leaf Spring | ||
Body Material PPS | ||
RoHS Status: Not Applicable
- COO (Country of Origin):
- TW
The HARWIN Coin cell holder is highly useful for effective retention of coin cell batteries. It eliminates the need for soldered-in cells. It has low profile design available with dual independent contact points for enhanced electrical reliability.
Connector orientation horizontal
Connection type surface mount
Finish gold
Soldering data Max solder temperature 260°C for 10 seconds
entry style top entry
Connection type surface mount
Finish gold
Soldering data Max solder temperature 260°C for 10 seconds
entry style top entry
