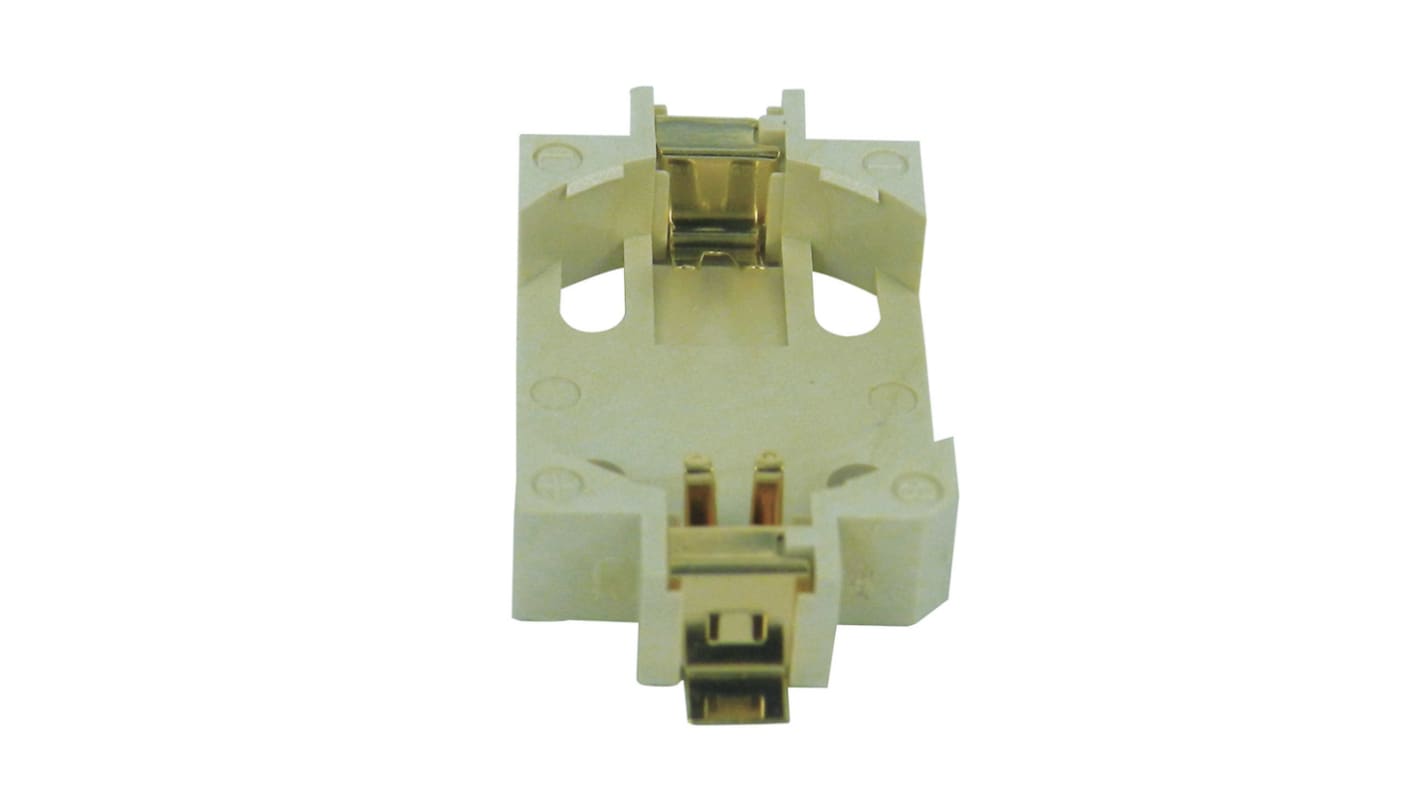

RS PRO CR2032 Battery Holder, Solder Tag Contact
- RS Stock No.:
- 185-4719
- Brand:
- RS PRO
Subtotal (1 unit)*
£0.87
(exc. VAT)
£1.04
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 156 unit(s) ready to ship
- Plus 75 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £0.87 |
*price indicative
- RS Stock No.:
- 185-4719
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | RS PRO | |
For Battery Size | CR2032 | |
Number of Cells | 1 | |
Type | Battery Holder | |
Maximum Cell Diameter | 20mm | |
Dimensions | 31.9 x 16 x 5.75mm | |
Terminal Contact Type | Solder Tag | |
Body Material | Glass Filled LCP | |
Terminal Contact Material | Nickel Silver, Phosphor Bronze | |
Select all | ||
---|---|---|
Brand RS PRO | ||
For Battery Size CR2032 | ||
Number of Cells 1 | ||
Type Battery Holder | ||
Maximum Cell Diameter 20mm | ||
Dimensions 31.9 x 16 x 5.75mm | ||
Terminal Contact Type Solder Tag | ||
Body Material Glass Filled LCP | ||
Terminal Contact Material Nickel Silver, Phosphor Bronze | ||
- COO (Country of Origin):
- CN
RS PRO Battery Holder
The RS PRO battery holder is suitable for a CR2032 battery and it has dimensions of 31.9mm x 16mm x 5.75mm. It has a voltage rating of 500V (AC/DC) and a current rating of 2A.
Features and Benefits
• Material: LCP +30%GF
• Operating temperature ranges between -55°C and 85°C
• Contact: Electrode: Phosphor bronze 0.25mm thick gold 1u plated over nickel 5u minimum
• Insulation resistance: 500megaohms
• Contact resistance: 30milliohms maximum
• Humidity: 40°C
• Operating temperature ranges between -55°C and 85°C
• Contact: Electrode: Phosphor bronze 0.25mm thick gold 1u plated over nickel 5u minimum
• Insulation resistance: 500megaohms
• Contact resistance: 30milliohms maximum
• Humidity: 40°C
Certifications
• UL 94V0 approved
