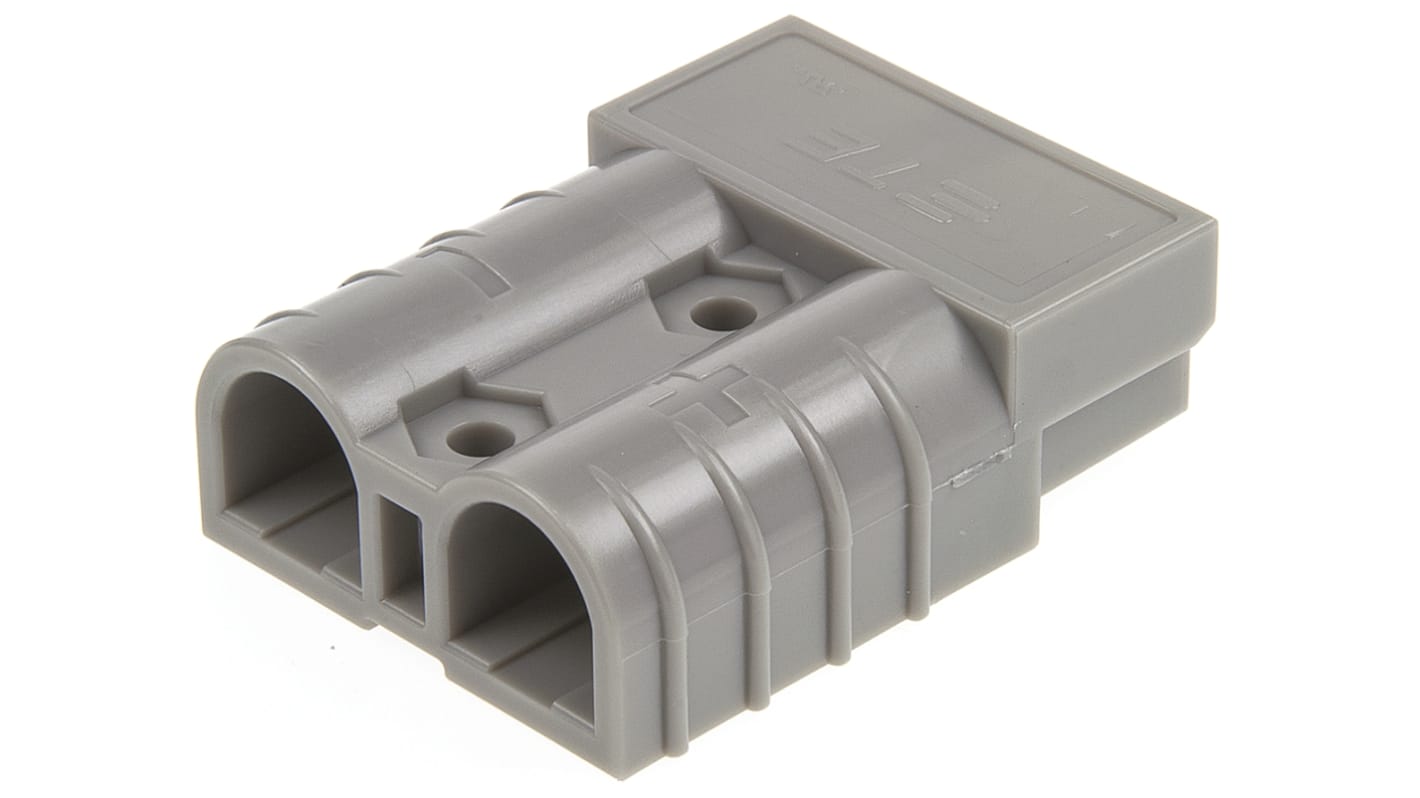

TE Connectivity, AMP Power Series 2 Way Male/Female Battery Connector, Straight, Cable, 600 V ac, 600V dc, 50A

RS Stock No.:: 718-1446
Mfr. Part No.:: 647845-4
Brand:: TE Connectivity

TE Connectivity, AMP Power Series 2 Way Male/Female Battery Connector, Straight, Cable, 600 V ac, 600V dc, 50A

Currently unavailable

Sorry, we don't know when this will be back in stock.

Alternative

This product is not currently available. Here is our alternative recommendation.

RS PRO 2 Way Battery Connector, Straight, 600V, 50A

RS Stock No.: 175-6961

1 Kit

£3.09

(exc. VAT)

£3.71

(inc. VAT)

RS Stock No.:: 718-1446
Mfr. Part No.:: 647845-4
Brand:: TE Connectivity

Specifications

Technical Reference

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	TE Connectivity
	Product Type	Battery Connector
	Number of Contacts	2
	Current	50A
	Mount Type	Cable
	Housing Material	Polycarbonate
	Orientation	Straight
	Connector Gender	Male/Female
	Contact Material	Copper
	Contact Plating	Silver
	Voltage	600, 600V ac
	Minimum Operating Temperature	-20°C
	Termination Type	Crimp
	Maximum Operating Temperature	105°C
	Contact Gender	Male/Female
	Standards/Approvals	No
	Series	AMP Power

	Select all
	Brand TE Connectivity
	Product Type Battery Connector
	Number of Contacts 2
	Current 50A
	Mount Type Cable
	Housing Material Polycarbonate
	Orientation Straight
	Connector Gender Male/Female
	Contact Material Copper
	Contact Plating Silver
	Voltage 600, 600V ac
	Minimum Operating Temperature -20°C
	Termination Type Crimp
	Maximum Operating Temperature 105°C
	Contact Gender Male/Female
	Standards/Approvals No
	Series AMP Power

This connector is housing only

TE Connectivity AMP Power Series 50 2 Pole Battery Connectors

These AMP Power Series 50 2 pole battery connectors have colour coded UL 94V-0 housings and mechanical keys to prevent two different voltage colour coded housings from mating. The AMP Power Series 50 2 pole battery connectors are genderless and have polarity moulded into them.
