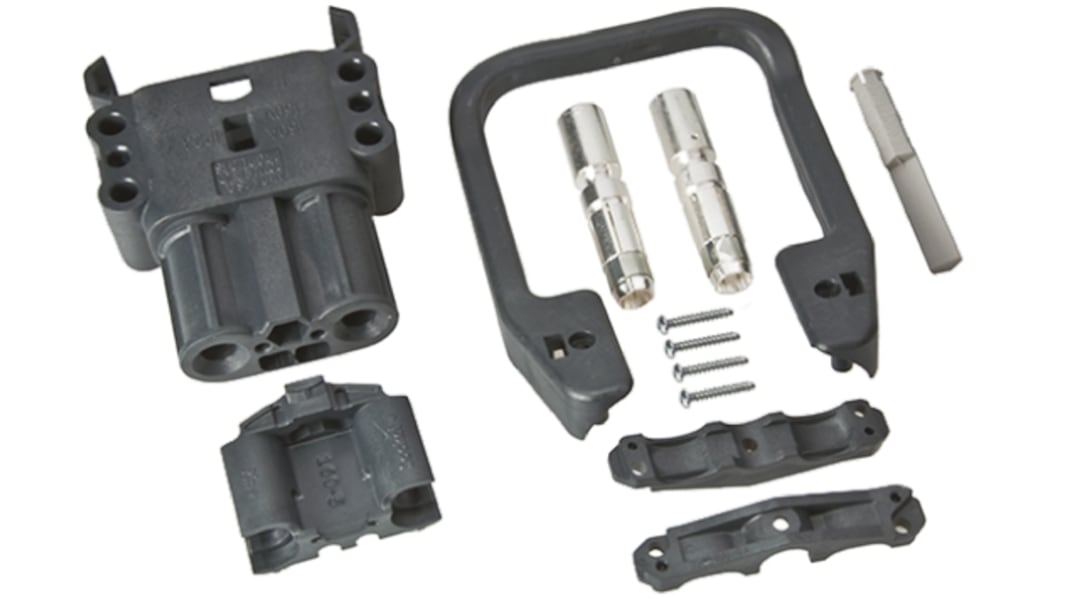

Anderson Power Products, E16 Series 2 Way Female Battery Connector, Straight, Feed Through, 600V, 160A
- RS Stock No.:
- 715-3606
- Mfr. Part No.:
- E16550-1009
- Brand:
- Anderson Power Products
Bulk discount available
Subtotal (1 unit)*
£64.50
(exc. VAT)
£77.40
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 27 unit(s) ready to ship
- Plus 1 unit(s) ready to ship from another location
- Plus 10 unit(s) shipping from 06 August 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 19 | £64.50 |
| 20 - 74 | £58.04 |
| 75 - 299 | £51.60 |
| 300 - 599 | £45.22 |
| 600 + | £38.70 |
*price indicative
- RS Stock No.:
- 715-3606
- Mfr. Part No.:
- E16550-1009
- Brand:
- Anderson Power Products
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Anderson Power Products | |
| Product Type | Battery Connector | |
| Number of Contacts | 2 | |
| Mount Type | Feed Through | |
| Current | 160A | |
| Housing Material | Polybutylene Terephthalate | |
| Orientation | Straight | |
| Connector Gender | Female | |
| Contact Material | Copper Alloy | |
| Contact Plating | Silver | |
| Voltage | 600V | |
| Minimum Operating Temperature | -20°C | |
| Termination Type | Solder | |
| Maximum Operating Temperature | 105°C | |
| Contact Gender | Female | |
| Standards/Approvals | No | |
| Series | E16 | |
| Select all | ||
|---|---|---|
Brand Anderson Power Products | ||
Product Type Battery Connector | ||
Number of Contacts 2 | ||
Mount Type Feed Through | ||
Current 160A | ||
Housing Material Polybutylene Terephthalate | ||
Orientation Straight | ||
Connector Gender Female | ||
Contact Material Copper Alloy | ||
Contact Plating Silver | ||
Voltage 600V | ||
Minimum Operating Temperature -20°C | ||
Termination Type Solder | ||
Maximum Operating Temperature 105°C | ||
Contact Gender Female | ||
Standards/Approvals No | ||
Series E16 | ||
APP DIN connectors
Sturdy advanced polymer housings
DIN 43589-1 voltage keying
Mating compatibility with connectors of other manufacturers APP “E” series connectors offer dimensional compatibility for air tube and auxiliary contacts over and above the DIN 43589-1 compatibility of housings and main contacts
Silver plated pure copper contacts For lowest voltage drop and superior performance
APP EBC Connectors
Anderson Power Products’ family of Euro Battery Connectors (EBC) exceeds all the requirements of DIN 43589-1 and EN 1175-1. The connector design incorporates an innovative, cost effective contact carrier for ease of assembly. The connectors have a Degree of Protection of IP23 per IEC 60529. The acid resistance and temperature range of the PBT-PC housing exceeds the requirements of EN 1175-1. Contacts are pure copper with silver plate for maximum conductivity. All materials meet RoHS requirements and are selected to ensure years of reliable service under adverse battery environments.
Note
Under UL standard, current rating is 220A.
