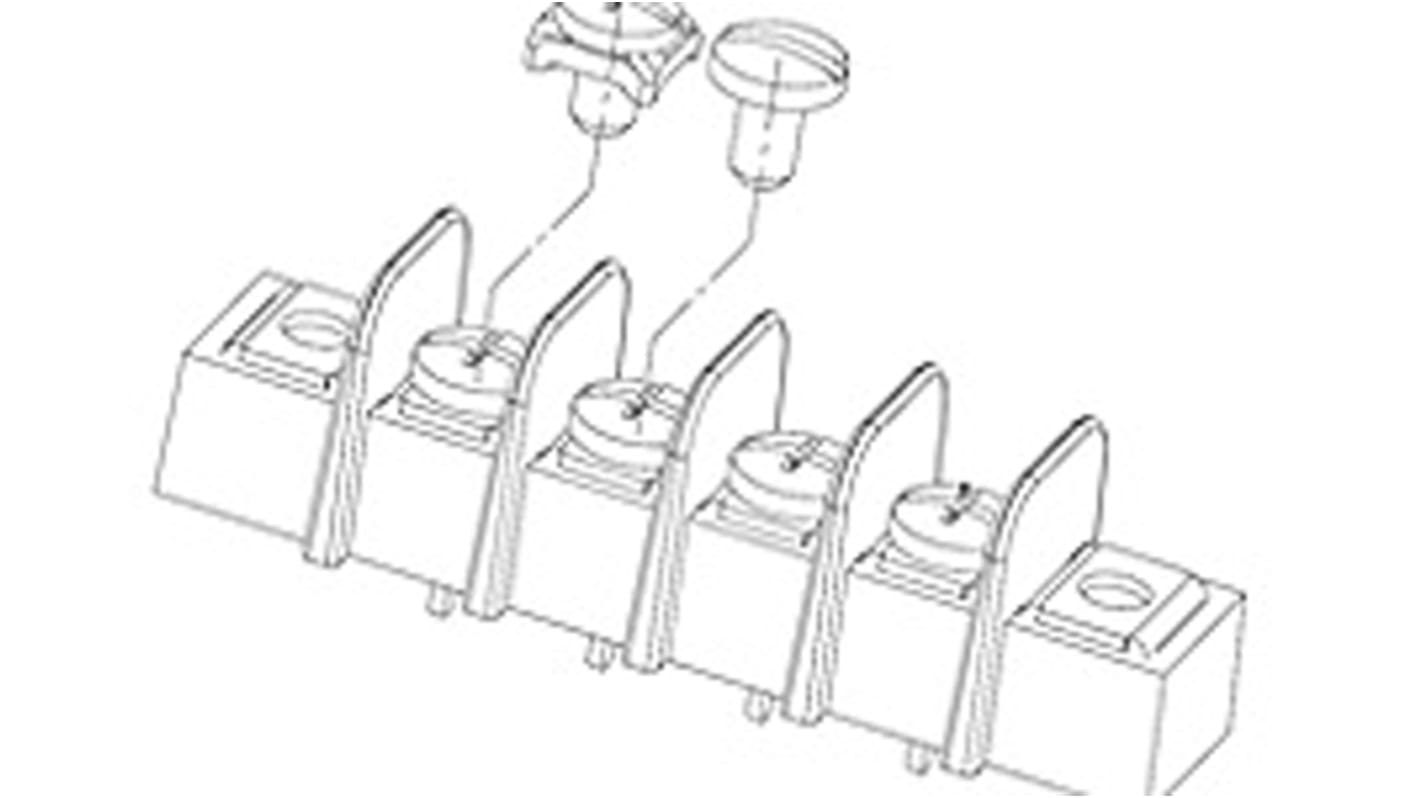

Molex Barrier Strip, 4 Contact, 9.53mm Pitch, 1 Row, 15A, 300 V
- RS Stock No.:
- 822-7070
- Mfr. Part No.:
- 38720-6204
- Brand:
- Molex
11 In stock - FREE next working day delivery available
Added
Price Each
£3.16
(exc. VAT)
£3.79
(inc. VAT)
| Units | Per unit |
| 1 - 9 | £3.16 |
| 10 - 49 | £2.49 |
| 50 - 99 | £2.36 |
| 100 - 499 | £2.25 |
| 500 + | £2.14 |
- RS Stock No.:
- 822-7070
- Mfr. Part No.:
- 38720-6204
- Brand:
- Molex
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- US
Product Details
Molex 38720 Terminal Strips & Blocks
The Molex 38720 series of barrier strips and terminal blocks guarantee the highest quality and reliability.
The 38720 range comes complete with a 9.53mm pitch size, blocks and strips are panel mounted ranging from 2 positions to 12 positions. Whilst terminal block models will go up to 12 way.
The 38720 range comes complete with a 9.53mm pitch size, blocks and strips are panel mounted ranging from 2 positions to 12 positions. Whilst terminal block models will go up to 12 way.
Thermoplastic or PBT housing
Single row strips
Single row strips
Specifications
Attribute | Value |
|---|---|
| Number of Contacts | 4 |
| Pitch | 9.53mm |
| Body Orientation | Straight |
| Contact Material | Brass |
| Contact Plating | Tin |
| Number of Rows | 1 |
| Screw Size | M3 |
| Wire Size | 22 → 14 AWG |
| Material | PBT |
| Current Rating | 15A |
| Voltage Rating | 300 V |
| Dimensions | 59.2 x 15.7 x 16.8mm |
| Depth | 16.8mm |
| Width | 15.7mm |
| Length | 59.2mm |
| Minimum Operating Temperature | -40°C |
| Maximum Operating Temperature | +130°C |
