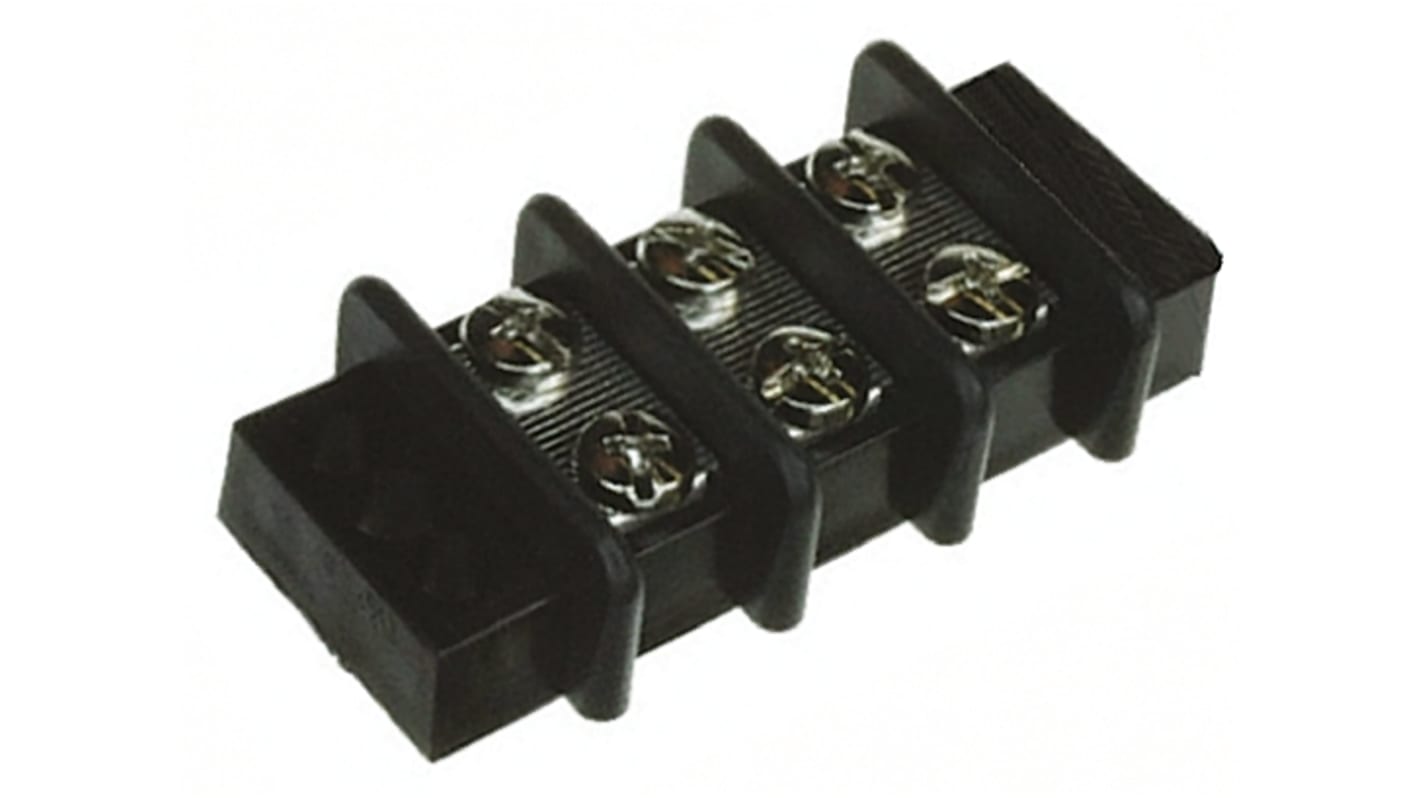

TE Connectivity Barrier Strip, 6 Contact, 14.27mm Pitch, 2 Row, 30A, 300 V

Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
RS Stock No.:
782-2888
Mfr. Part No.:
1546310-6
Brand:
TE Connectivity
Find similar products by selecting one or more attributes.
Select all

Brand

TE Connectivity

Number of Contacts

6

Pitch

14.27mm

Number of Rows

2

Wire Size

22 → 10 AWG

Current Rating

30A

Voltage Rating

300 V

COO (Country of Origin):
TW

141 Series 250 VAC RMS Barrier Blocks


Double-row, dual barrier strips for wire-to-wire applications. These parts also allow end users to complete the wiring to a separate screw without disturbing the factory wiring. Increased current-carrying capability

Material. Insulator Body: UL 94V-0 thermoplastic, black
Terminal: Brass, tin plated
Screw: #6-32 Steel, nickel plated; M4.0 Steel, nickel plated (14.3 mm).

Features
Closed Bottom Design Allows for Mounting Direct to Sheet Metal Panel
Molded to Length
Wire-to-Wire Termination
Available with Either Binding Head Screws or Wire Clamp
Accessories Such as Quick-Connect Tabs and Jumpers Available

Electrical:
Current Rating: 30 A, 300 VAC
Wire Range: 10-22 AWG
Withstanding Voltage: 2000 VAC Min.
Insulation Resistance: >5000 MΩ @ 500 VDC
Operating Temperature: –40°F to +248°F (–40°C to +120°C)
