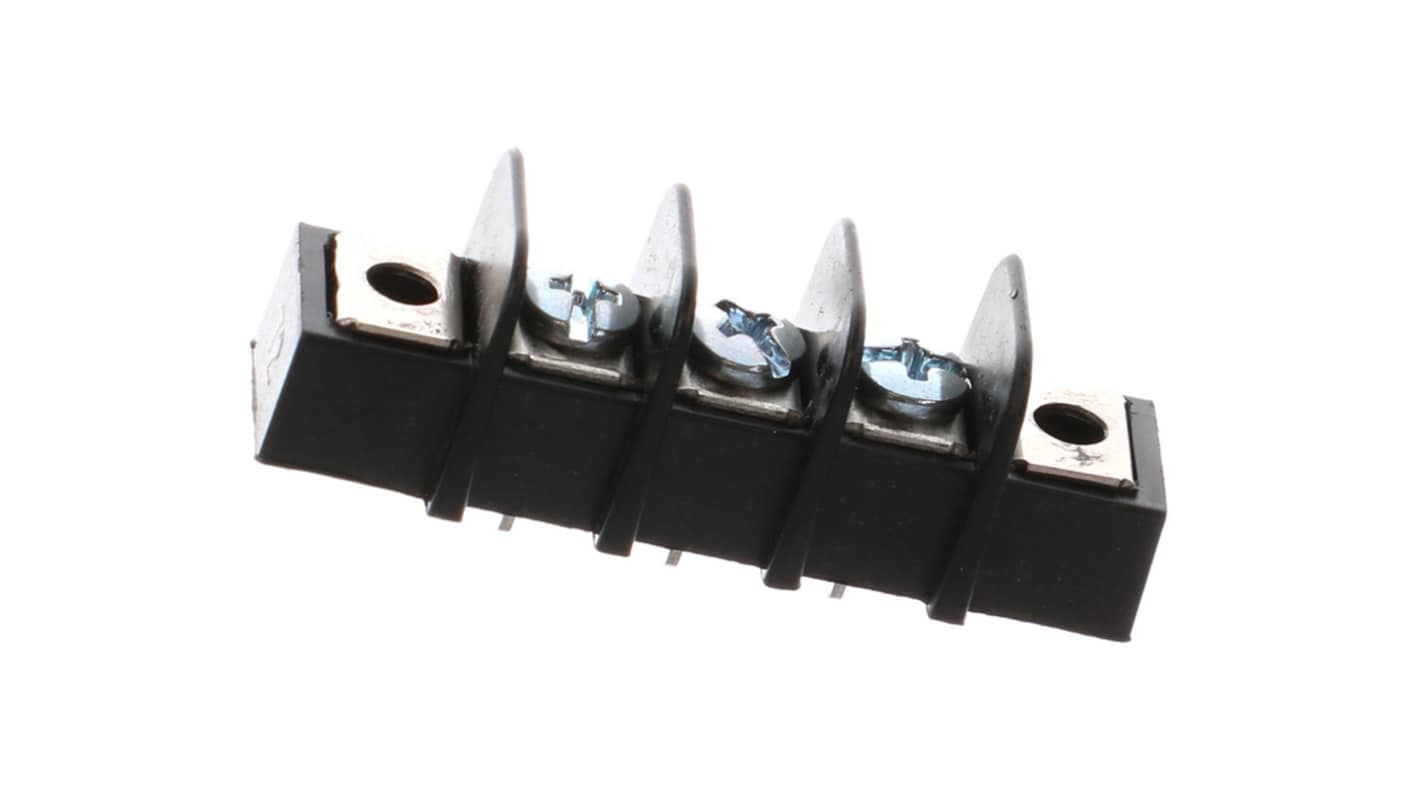

Molex Barrier Strip, 3 Contact, 9.53mm Pitch, 1 Row, 15A, 300 V
- RS Stock No.:
- 685-008
- Mfr. Part No.:
- 38720-6203
- Brand:
- Molex
Subtotal (1 pack of 25 units)*
£140.21
(exc. VAT)
£168.25
(inc. VAT)
Stock information currently inaccessible
Pack(s) | Per Pack | Per unit* |
|---|---|---|
| 1 + | £140.21 | £5.608 |
*price indicative
- RS Stock No.:
- 685-008
- Mfr. Part No.:
- 38720-6203
- Brand:
- Molex
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Molex | |
| Number of Contacts | 3 | |
| Pitch | 9.53mm | |
| Body Orientation | Horizontal | |
| Contact Material | Brass | |
| Contact Plating | Tin | |
| Number of Rows | 1 | |
| Current Rating | 15A | |
| Voltage Rating | 300 V | |
Select all | ||
|---|---|---|
Brand Molex | ||
Number of Contacts 3 | ||
Pitch 9.53mm | ||
Body Orientation Horizontal | ||
Contact Material Brass | ||
Contact Plating Tin | ||
Number of Rows 1 | ||
Current Rating 15A | ||
Voltage Rating 300 V | ||
- COO (Country of Origin):
- MX
The Molex Fixed mount barrier strip offers a robust solution for wire-to-board applications, designed with a three-circuit configuration to simplify connectivity and enhance performance. Featuring a pitch of 9.53mm, this terminal strip is crafted from durable polyester resin, ensuring reliability even in demanding environments. Its horizontal entry angle and PC tail design facilitate straightforward installation, while securing connections with PCB retention. Suitable for a temperature range of -40° to +130°C, it is perfect for various electrical necessities. As part of the 38720 series, this product is ideal for OEMs looking for quality and dependability in their terminal block solutions. Although now classified as obsolete, its engineering excellence remains unmatched, making it a valuable reference for legacy designs.
Compatible with 14 to 22 AWG wire sizes for flexible wiring options
Single row design optimizes space on PCB layouts
Lead-free wave solder capability for environmentally conscious assembly
Obsolete status indicates a classic choice for legacy systems
Single row design optimizes space on PCB layouts
Lead-free wave solder capability for environmentally conscious assembly
Obsolete status indicates a classic choice for legacy systems
