RS PRO Black Male Banana Connectors, Screw Termination, 10A, 50V, Nickel Plating
- RS Stock No.:
- 212-1237
- Brand:
- RS PRO
Save 20% when you buy 1000 units
Subtotal (1 pack of 10 units)*
£11.11
(exc. VAT)
£13.33
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 710 unit(s) ready to ship
- Plus 90 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
---|---|---|
10 - 90 | £1.111 | £11.11 |
100 - 240 | £1.09 | £10.90 |
250 - 490 | £1.046 | £10.46 |
500 - 990 | £0.988 | £9.88 |
1000 + | £0.888 | £8.88 |
*price indicative
Alternative
This product is not currently available. Here is our alternative recommendation.
Each
£1.22
(exc. VAT)
£1.46
(inc. VAT)
- RS Stock No.:
- 212-1237
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | RS PRO | |
Colour | Black | |
Gender | Male | |
Termination Method | Screw | |
Voltage Rating | 50V | |
Current Rating | 10A | |
Contact Plating | Nickel | |
Spring Contact | Yes | |
Contact Material | Brass | |
Type | Banana Plug | |
Insulation Material | Acetal C 27021 R | |
Select all | ||
---|---|---|
Brand RS PRO | ||
Colour Black | ||
Gender Male | ||
Termination Method Screw | ||
Voltage Rating 50V | ||
Current Rating 10A | ||
Contact Plating Nickel | ||
Spring Contact Yes | ||
Contact Material Brass | ||
Type Banana Plug | ||
Insulation Material Acetal C 27021 R | ||
- COO (Country of Origin):
- GB

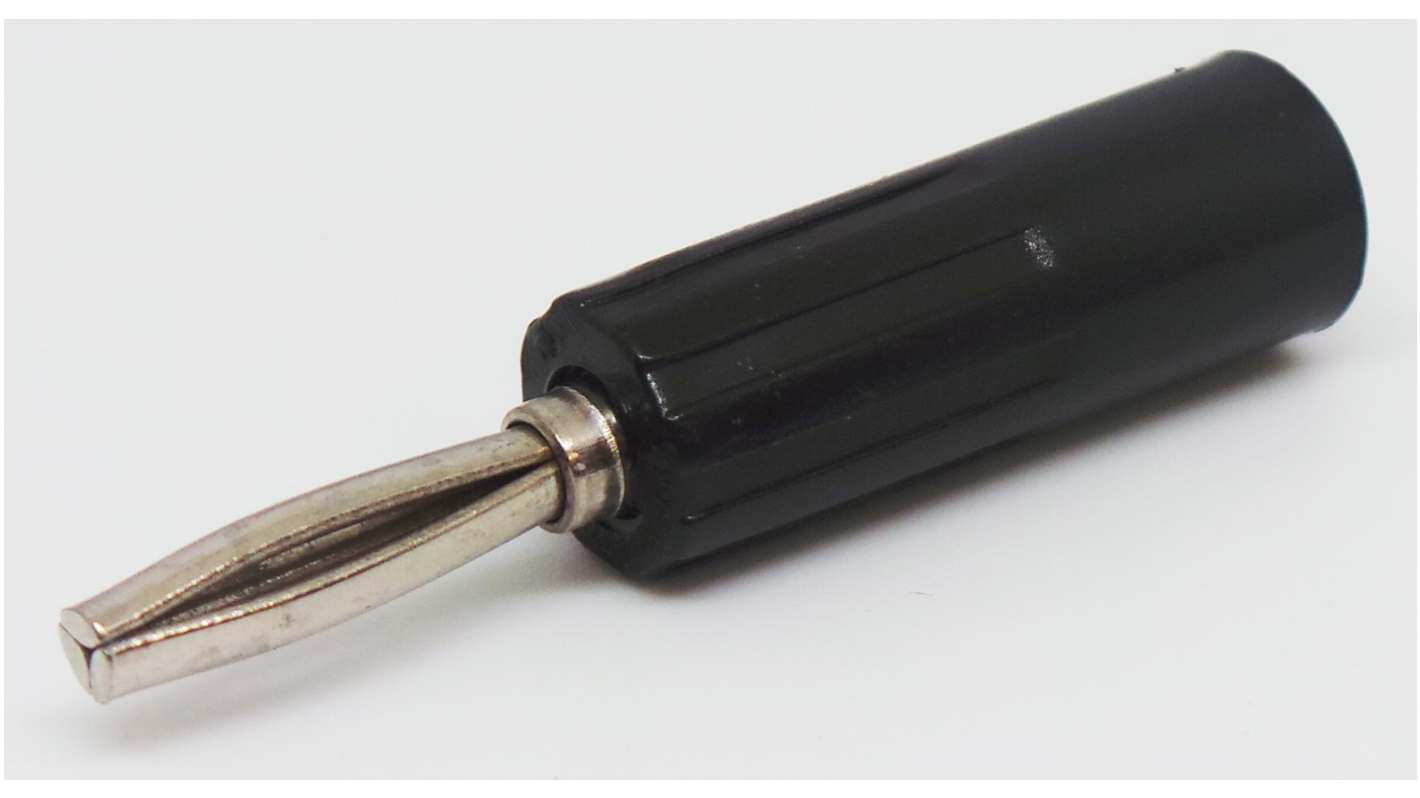

RS PRO 4 mm Banana Plug - Male
Looking to make your own test leads, then RS PRO has the perfect addition in the 4 mm banana plug. This nickel plated plug is the ideal solution for making test leads to your specification. Upon inspection, the plug connector offers high-grade acetal plastic insulation with a centre contact made from nickel-plated brass and screw termination method. It accepts test lead cables with a 7.1 mm diameter with a conductor of 3.5 mm diameter.
Features and Benefits
- 4 mm male banana plug
- Nickel plated brass contact
- Triple contact plug
- Keeps your cables and equipment safe
- Voltage rating: 50V
- Current rating: 10A
- Acetal plastic insulation material to ensure a strong and durable plug
Applications
The RS PRO 3 curved brass and nickel plated pins combined to produce a reliable 4mm plug with excellent contact resistance and good retention with the socket. Rated at 10 Amps, with a screw connection for the lead wire and a screw-on rigid Acetal moulding. Accepts up to 7.1mm diameter cable with a conductor of 3.5mm diameter. Available in a range of standard colours.
How do you make a banana plug test lead?
Terminating the plug connector is very straight forward, the centre contact has an aperture for the cable wire to be soldered. Once soldered assemble all the plug elements back together now your test lead is ready for use.
Why RS PRO?
RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards
theyre only given the RS PRO seal of approval if were confident of their exceptional quality, which means you can be confident too.
